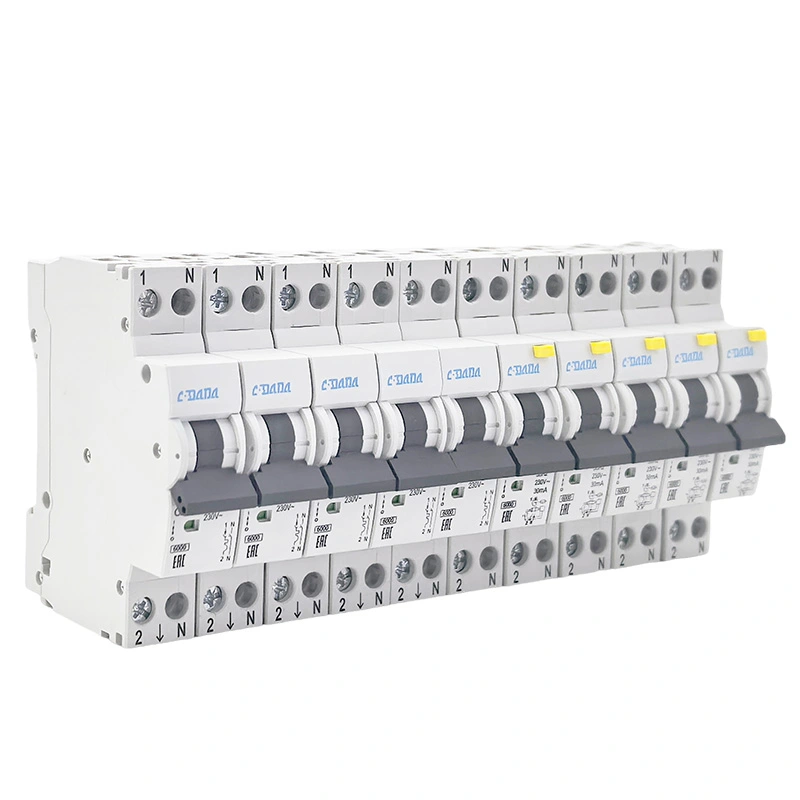

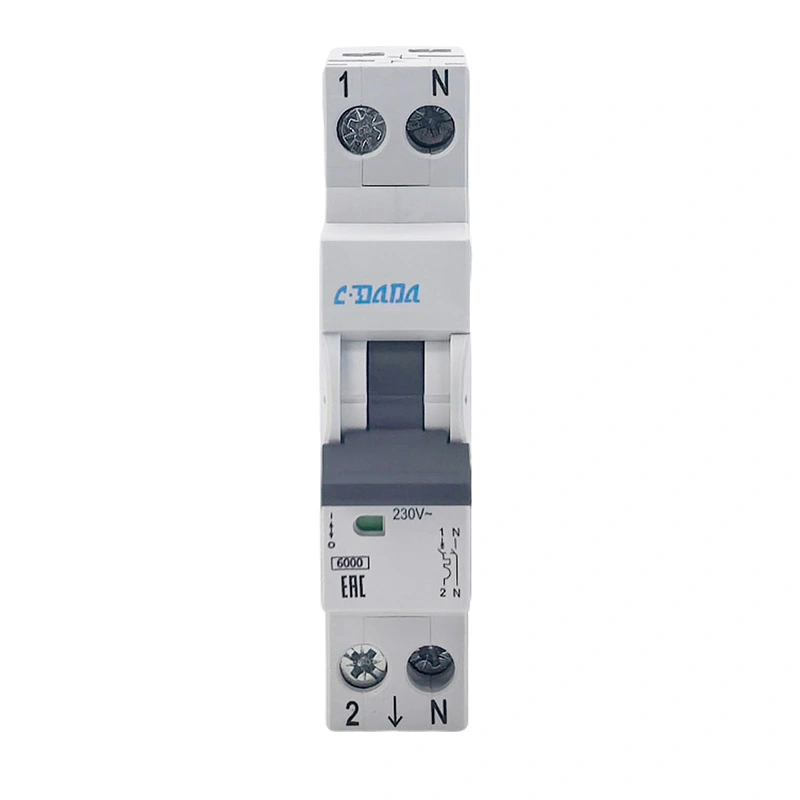

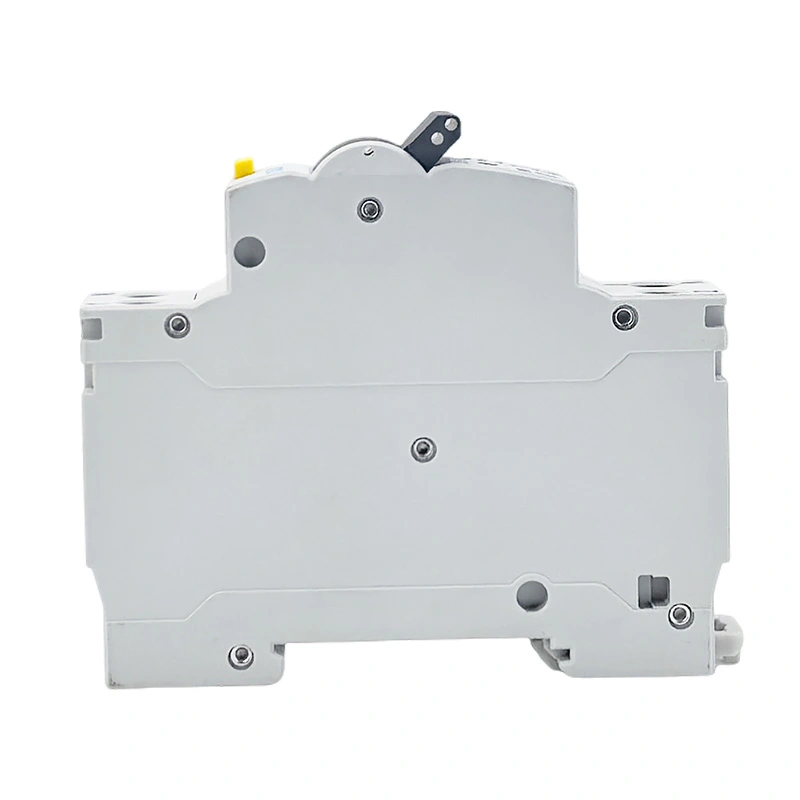

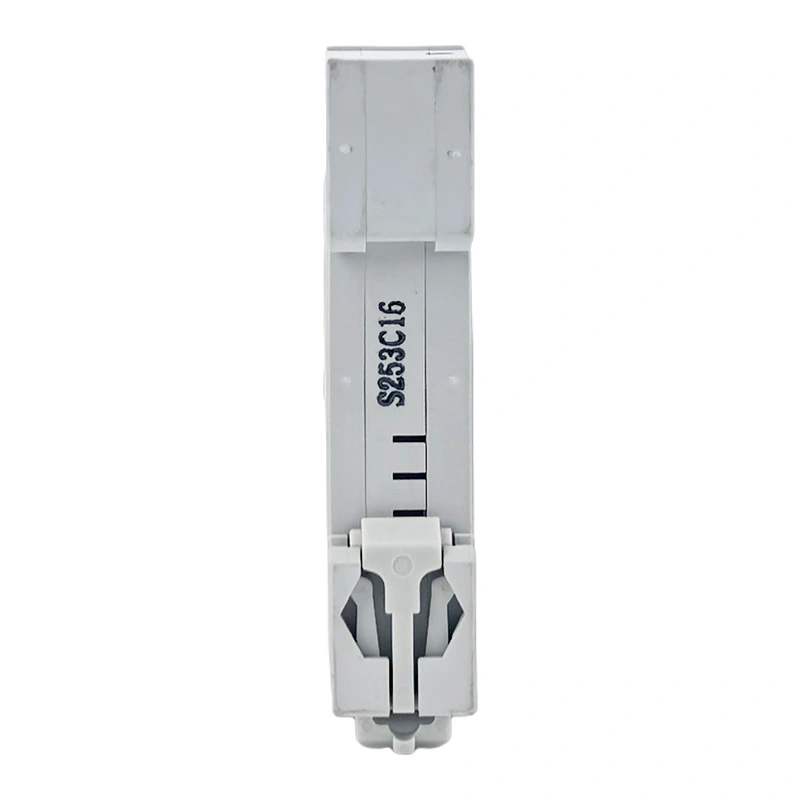

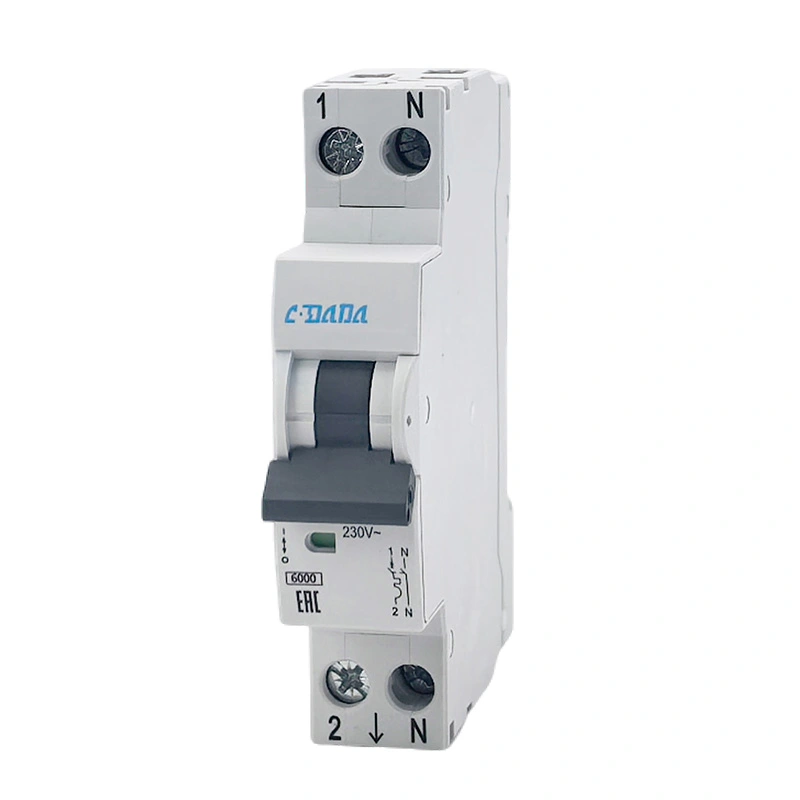

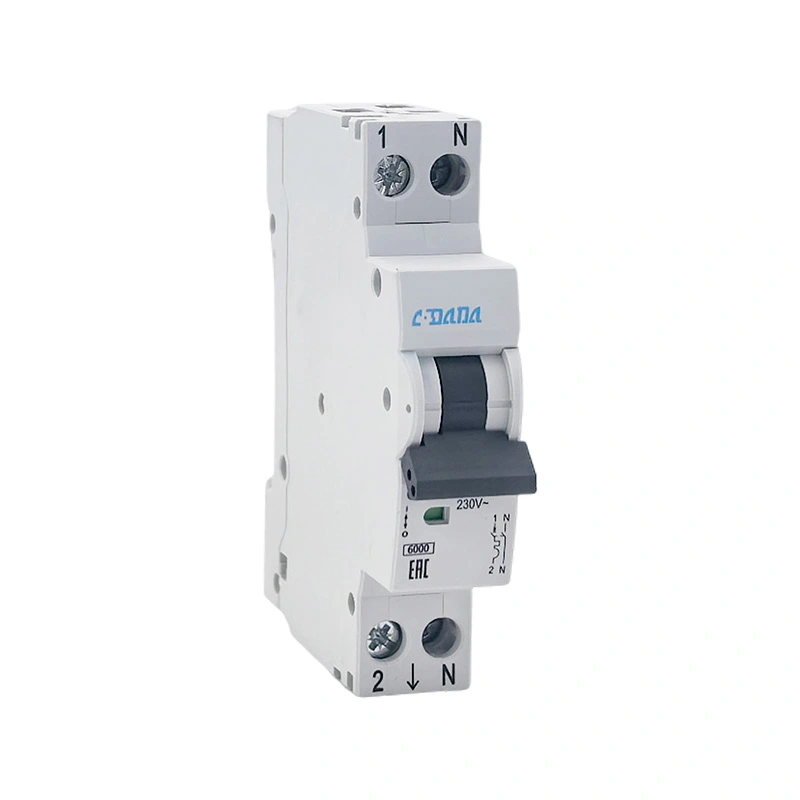

Miniature Circuit Breaker DPN 6KA
Model:DAB7N
CDADA Miniature Circuit Breaker DPN 6KA ndiyabwino pakugula zinthu zambiri, chowongolera chapamwamba cha 1P+N chaching'ono chogwirizana ndi IEC60898-1 poteteza nyumba zotetezeka komanso zamalonda. Imagwiritsa ntchito mapangidwe apawiri opumira komanso kuyenda kosasunthika kwamafuta-maginito, kosavuta kuyika pa njanji ya DIN komanso yosavuta kuyisamalira. Zimaphatikiza dongosolo lodalirika ndi moyo wautali wautumiki, kuwonetsetsa kuti magetsi azikhala otetezeka pamakina osiyanasiyana amagetsi otsika.
CDADA DAB7N Miniature Circuit Breaker DPN 6KA ndi katswiri wa 1P+N dual-break miniature breaker wopangidwa ndi Shanghai DADA Electric, wopanga wodalirika wazaka 40+. Ndi 6kA high breaking capacity, synchronous operation, and N-pole "pang first, break later" mapangidwe, amawongolera bwino ntchito yozimitsa arc ndikuteteza mabwalo ndi zida mosamala. Amagwiritsidwa ntchito kwambiri m'mabokosi ogawa, zokongoletsera kunyumba, mphamvu zamalonda, ndi mabwalo ounikira, ndiye chisankho choyamba kwa ogula padziko lonse, ogulitsa ndi makasitomala a OEM.

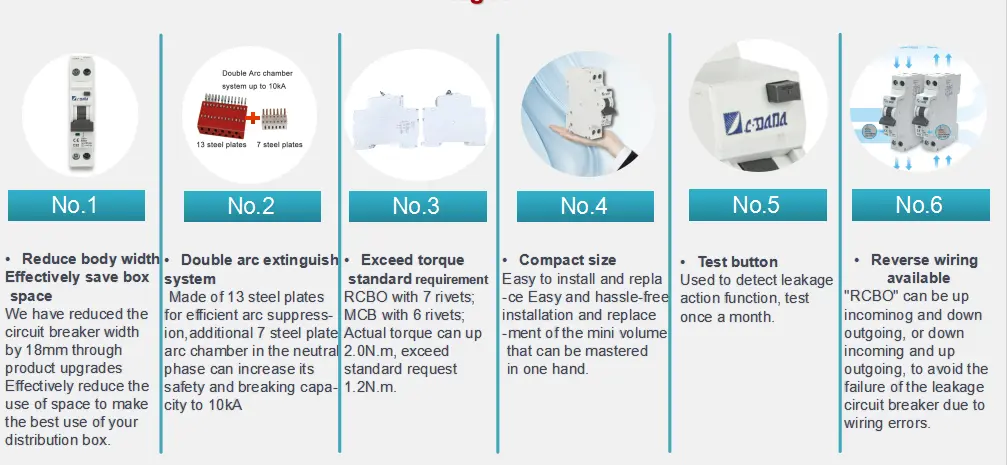

Kodi Ubwino Wa MCB DPN 6KA Ndi Chiyani?
★ 1P + N DPN kapangidwe, malo opumira awiri, otetezeka komanso odalirika
★ N pole imapanga choyamba ndikusweka pambuyo pake, imathandizira kuthyoka kwa arc
★ 6kA mphamvu yeniyeni yosweka, chitetezo cholimba chafupipafupi
★ Compact 17.8mm m'lifupi, amapulumutsa nduna malo
★ B/C zokhotakhota zopezeka katundu wosiyanasiyana
★ IP20 chitetezo kalasi, otetezeka kukhudza
★ Wide mawaya osiyanasiyana: 1–25mm² chingwe chosinthasintha
★ Kuyika njanji ya DIN, kukhazikitsa mwachangu komanso kokhazikika
★ Kukana kutentha kwakukulu ndi kotsika: -25 ℃ ~ + 50 ℃
★ Moyo wautali wamakina mpaka nthawi 20,000
Mapulogalamu
CDADA Miniature Circuit Breaker DPN 6KA imagwiritsidwa ntchito kwambiri mu:
★ Nyumba zogona, nyumba zogona, zokongoletsa nyumba
★ Maofesi, mashopu, mahotela, masukulu, zipatala
★ Mabwalo owunikira, ma soketi amagetsi, zida zazing'ono zamagetsi
★ Zida zapakhomo: zotenthetsera madzi, zoyatsira mpweya, zotenthetsera zamagetsi
★ Kukonzanso kwachitukuko chakale ndikukweza mabokosi ogawa
★ Makina ogawa magetsi ocheperako amalonda ndi aboma
Technical Parameters Table
| Kanthu | Kufotokozera |
| Chitsanzo | Chithunzi cha DAB7N-40 |
| Dzina lazogulitsa | MCB DPN 6KA |
| Standard | IEC60898-1 |
| Mitengo | 1P+N (2P) |
| Kuphwanya Mphamvu | 6kA pa |
| Adavoteledwa Panopa | 6A,16A,20A,25A,32A,40A |
| Adavotera Voltage | AC 220/230/240V |
| pafupipafupi | 50/60Hz |
| Tripping Curve | B / C |
| Insulation Voltage | 500V |
| Mphamvu ya Voltage | 4kv ku |
| Digiri ya Chitetezo | IP20 |
| Moyo Wamakina | Nthawi 20,000 |
| Moyo Wamagetsi | Nthawi 6,000 |
| Terminal Torque | 1.5Nm |
| Kuthekera kwa Wiring | 1-25 mm² |
| Opaleshoni Temp | -25 ℃ ~ +50 ℃ |
| Makulidwe | 82.5 × 73.2 × 17.8mm |
Miyeso Yaumboni
★ Utali: 82.5mm
★ Kutalika: 73.2mm
M'lifupi: 17.8mm (muyezo 1-gawo m'lifupi)
★ Kuyika: 35mm DIN njanji
★ Mawaya: oyenera 1–25mm² chingwe chosinthika/cholimba
★ Busbar makulidwe: 0.8-2mm
Zinthu Zoyeserera Zokhazikika
★ 1.13Mayeso osayenda (≥1 ola)
★ 1.45Mayeso oyenda (<1 ola)
★ 2.55Pakuyesa kuchitapo kanthu mochulukira
★ Maginito oyenda nthawi yomweyo (3In/5In ya B/C curve)
★ Dielectric kupirira ma voltage test
★ Mayeso okwera kutentha
★ Kuyesa kwamphamvu kwanthawi yochepa (6kA)
★ Kuyesa moyo wamakina & magetsi
★ Kuyesa kwa ntchito kwapamwamba & kutsika kwa kutentha

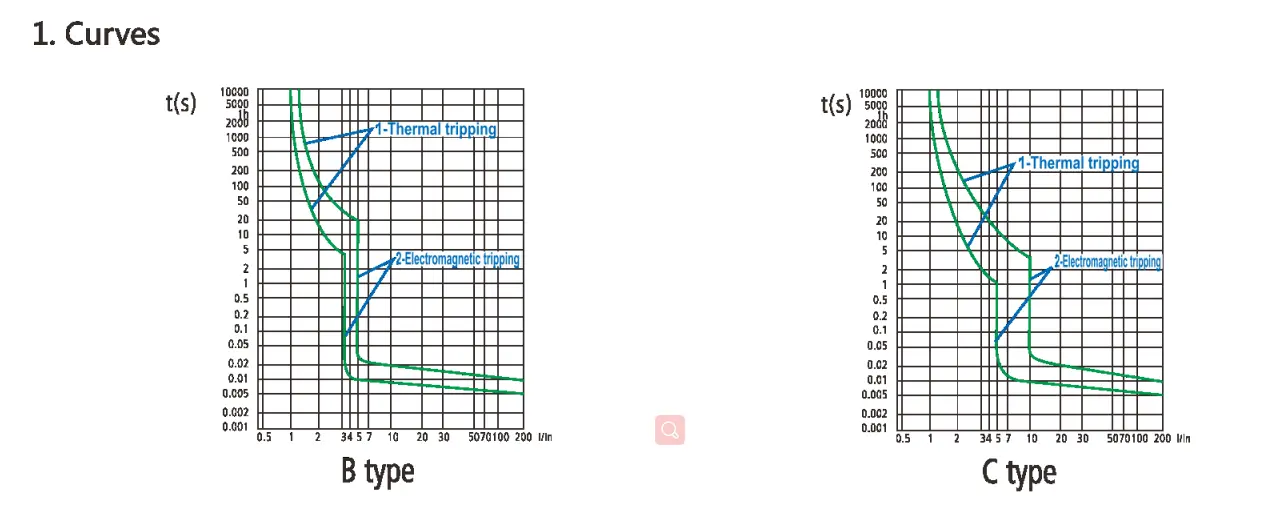

Tripping Characterism Curves
IEC 60898-1
Kutulutsidwa kwa Magnetic
Dongosolo lalifupi likachitika, kudumpha nthawi yomweyo kumatheka ndi maginito okhala ndi pakati pachitsulo. Malinga ndi muyezo wa IEC60898, mankhwalawa amatha kugawidwa m'mitundu itatu: B, C, ndi D.
|
|
Yesani panopa | Nthawi yoyenda | Mapulogalamu |
| B Chipinda | 3 n5l |
0.1 |
Mtundu B umangogwira ntchito pazambiri zomwe zimagwira ntchito: -Chotenthetsera chamagetsi-Madzi otenthetsera-Mafuta amagetsi |
| C Curve | 5 pa 10ln |
0.1 |
Mtundu C ndi woyenera katundu wamba: -Lamp -Power socket -Njinga yamagetsi yaying'ono |
Kutulutsidwa kwa Thermal
● Kuchulukirachulukira kukachitika m'derali, mzere wa bimetallic wa woyendetsa dera umapindika chifukwa cha kutentha, zomwe zimapangitsa kuti olumikizanawo azitha kulumikizidwa ndikupangitsa kuti kutentha kuzitha;
● Muyezo wa IEC umatanthawuza nthawi yodutsa maulendo osiyanasiyana olemetsa;
●Kutentha kwa malo oyeserera ndi 30 °C.
| Yesani panopa | Nthawi yoyenda |
| 1.13n | t z 1h(mu ≦ 63A) |
| 1.45l | t<1h(Mu ≦ 63A) |
| 2.55l | 1s<1h<60s(Mu≤32A)1s |

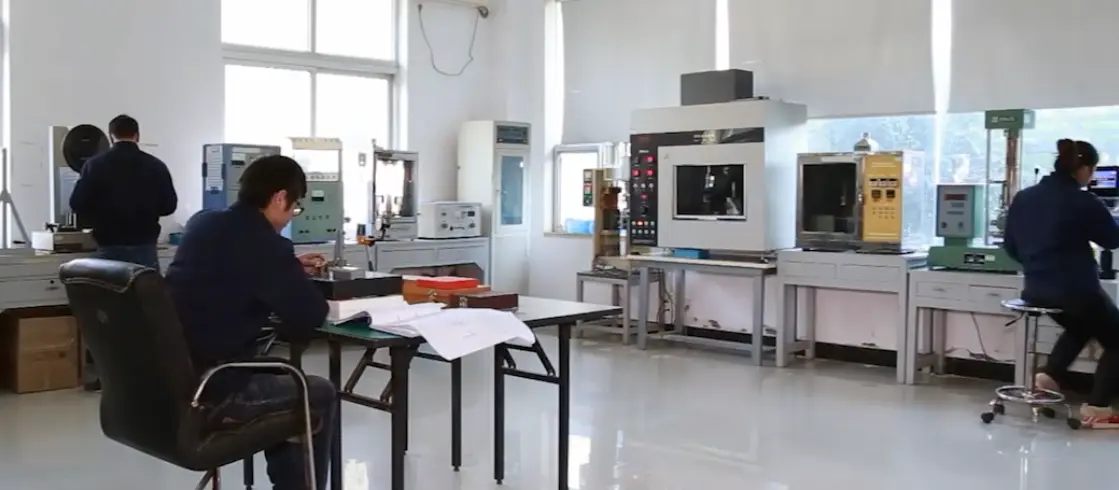

Quality Control ndondomeko
1. Kuwunika kwazinthu zomwe zikubwera & kutsimikizira ziphaso
2. Makina opangira jakisoni & kupondaponda kwachitsulo mwatsatanetsatane
3. Semi-anamaliza mankhwala msonkhano & calibration
4. 100% zonse zoyendayenda khalidwe mayeso
5. Kupirira voteji & kutchinjiriza ntchito mayeso
6. Mayeso okalamba ndi otsika kutentha kutentha
7. Mawonekedwe, kukula kwake & kuyendera kwa logo
8. Kuyika komaliza & kuyendera kutumiza
Kupaka & Kutumiza
★ katoni yokhazikika yotumiza kunja yokhala ndi zingwe zotsekereza
★ Bokosi lamagulu limapakidwa kuti zisawonongeke
★ Chotsani chizindikiro: chitsanzo, panopa, mitengo, kuchuluka, chiphaso
★ Yoyenera kuyenda panyanja, mpweya ndi pamtunda
★ Support OEM ma CD, mwambo chizindikiro ndi chizindikiro
Makasitomala Kupambana Milandu
CDADA MCB DPN 6KA yatumizidwa kumayiko ndi zigawo zoposa 50:
★ Kupereka zochuluka kwanthawi yayitali kwa ogawa aku Europe ndi Asia
★ Ntchito zokonzanso madera akumidzi ku Middle East & Africa
★ OEM mgwirizano ndi odziwika padziko lonse magetsi zopangidwa
★ Thandizo logawa mphamvu kwa omanga nyumba
★ Maoda okhazikika ochokera kwa makontrakitala amagetsi ndi ophatikiza makina
Chifukwa Chosankha DADA Electric?
★ Zaka 40+ zaukadaulo wazaka zambiri pamasewera ophwanya R&D ndikupanga
★ 90% zigawo zikuluzikulu opangidwa m'nyumba, khola khalidwe kulamulira
★ ISO9001 yotsimikizika, kutsata kwathunthu ndi miyezo yapadziko lonse lapansi
★ Zitsimikizo zonse: CE, CB, CCC, etc.
★ Kuthekera kwakukulu kopanga, kutumiza mwachangu kwa maoda ambiri
★ Thandizo laukadaulo laukadaulo komanso ntchito yotsatsa pambuyo pake
★ Landirani makonda a OEM & ODM kuti mukwaniritse zofuna za msika
★ Global Logistics Dongosolo, yotetezeka komanso yosunga nthawi
