Bukuli likufotokoza momwe 6kA AC miniature circuit breaker imagwirira ntchito, zomwe chiwerengero cha 6kA chimatanthauza, momwe maulendo a B, C, ndi D amakhudzira ntchito, komanso momwe angasankhire zoyenera zovotera panopa ndi ma pole. Imazindikiritsanso zolakwika zogula zomwe zimachitika nthawi zambiri ndipo imapereka mndandanda wazofunikira kwa mainjiniya, makontrakitala, ndi ogula omwe akuwunika mayankho a MCB kuchokera kwa opanga mongaMalingaliro a kampani Malingaliro a kampani Malingaliro a kampani Malingaliro a kampani Shanghai DaDa Electric Co., Ltd.
M'ndandanda wazopezekamo
- Kodi 6kA AC Miniature Circuit Breaker ndi chiyani?
- Chifukwa Chiyani Kuphwanya Kwa 6kA Kuli Kofunika?
- Kodi AC Miniature Circuit Breaker Imateteza Bwanji Dera?
- Ndi Zida Ziti Zaukadaulo Zomwe Ogula Ayenera Kuwona?
- Kodi ma Curve a B, C, ndi D amakhudza bwanji kusankha?
- Kodi 6kA AC Miniature Circuit Breakers Amagwiritsidwa Ntchito Kuti?
- Ndi Mavuto ati omwe MCB Yoyenera Ingathandize Kupewa?
- Kodi Ogula Angasankhe Bwanji 6kA MCB Yoyenera?
- Zolakwika Zosankha Zomwe Muyenera Kupewa
- Chifukwa Chiyani Mumagwira Ntchito Ndi Wopanga MCB Wodziwa Ntchito?
- Mafunso Ofunsidwa Kawirikawiri
- Lumikizanani ndi Malingaliro a kampani Malingaliro a kampani Malingaliro a kampani Shanghai DaDa Electric Co., Ltd.

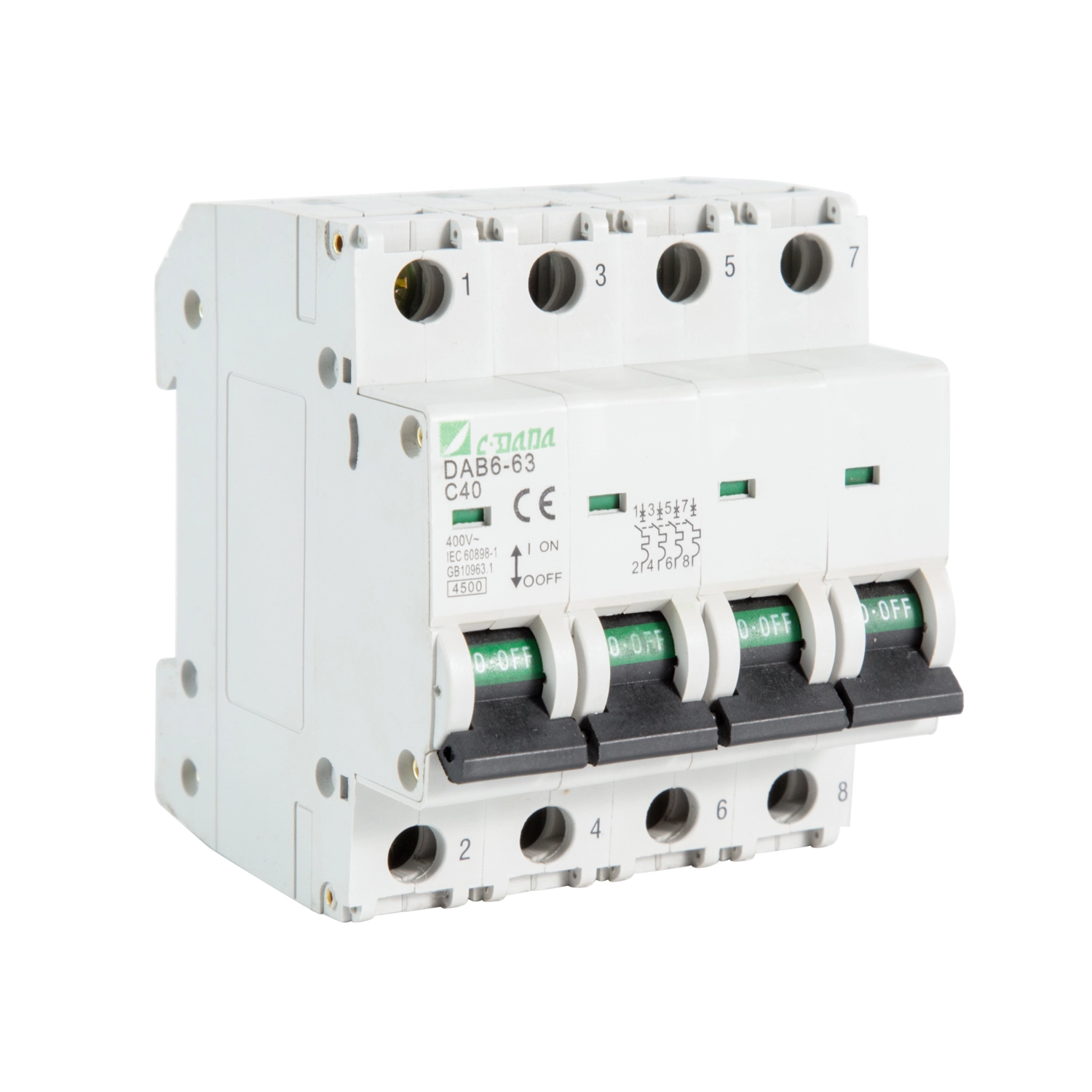

Kodi 6kA AC Miniature Circuit Breaker ndi chiyani?
Kachipangizo kakang'ono kakang'ono, komwe kamakonda kutchedwa MCB, ndi chipangizo chotchinjiriza chomwe chimapangidwa kuti chizitha kulumikiza chozungulira chamagetsi pakachitika zovuta. Mosiyana ndi fusesi yachikhalidwe, MCB nthawi zambiri imatha kukhazikitsidwanso vutolo litachotsedwa, zomwe zimapangitsa kuti zikhale zosavuta kuti zigwiritsidwe ntchito mobwerezabwereza.
Teremuyo6kA pazimatanthawuza mphamvu ya wophwanyayo yomwe idavotera kusweka pang'onopang'ono pansi pamiyeso yoyenera. M'mawu osavuta, 6kA MCB idapangidwa kuti izisokoneza mosavutikira njira yachidule yofikira ma amperes 6,000 zikakwaniritsidwa.
Zogulitsa zomwe zimagwirizana ndi IEC/EN 60898-1 nthawi zambiri zimatchula magawo monga ma voliyumu apano, ma voliyumu ovotera, ma frequency, kusweka kwamphamvu, ndi mawonekedwe akuyenda nthawi yomweyo. Magulu a malonda a MCB atha kupereka mavoti a 6kA pamitundu yosiyanasiyana yapano komanso masinthidwe amitengo.
6kA pa sizomwe zimagwiritsidwa ntchito nthawi zonse. 16A MCB, mwachitsanzo, imapangidwa kuti izikhala ndi nthawi yake yovotera pamikhalidwe yodziwika, pomwe chithunzi cha 6kA chimafotokoza za kusokoneza kwake kwakanthawi kochepa. Mafotokozedwe awiriwa amayankha mafunso a uinjiniya osiyanasiyana.
Chifukwa Chiyani Kuphwanya Kwa 6kA Kuli Kofunika?
Zozungulira zazifupi zimatha kutulutsa mafunde okwera kwambiri pakanthawi kochepa. Ngati chipangizo choteteza sichingathe kusokoneza vuto lomwe likupezeka pamalo ake, zotsatira zake zingaphatikizepo kuwonongeka kwakukulu, kutentha kwambiri, kulephera kwa zida, kapena kuyika kwamagetsi koopsa.
Chifukwa chake, mphamvu yakuphwanya sikuyenera kusankhidwa chifukwa 6kA ndiyomwe imapezeka kawirikawiri. Zomwe zikuyembekezeredwa kuti zichitike pafupipafupi pamalo oyikapo ziyenera kuwunikiridwa, ndipo wophwanya wosankhidwayo ayenera kukhala ndi kusokoneza kokwanira kwa dongosolo limenelo.
| Parameter | Tanthauzo Lake | Chifukwa Chake Kuli Kofunika? |
|---|---|---|
| 6kA pa pa | Adavotera mphamvu yosweka pang'onopang'ono | Imatsimikiza ngati wophwanyayo atha kusokoneza mulingo womwe watchulidwa wolakwika-panopa bwinobwino |
| Idavoteredwa Panopa (Mu) | Chiyerekezo chanthawi zonse cha MCB | Ayenera kugwirizanitsa ndi mphamvu ya conductor ndi katundu woyembekezeredwa |
| Mphamvu ya Voltage (Ue) | Mphamvu yamagetsi yogwiritsira ntchito | Ayenera kukhala ogwirizana ndi magetsi |
| Ulendo Wokhotakhota | Imatanthawuza kuchuluka kwa maginito omwe amadutsa nthawi yomweyo | Zimathandizira kuti chitetezo cha mthupi chitetezeke ndikuchepetsa kuwonongeka |
| Number of Poles | Chiwerengero cha makondakitala osinthidwa/otetezedwa | Iyenera kufanana ndi kasinthidwe kadera |
Zolemba za opanga zikuwonetsa kuti ma 6kA MCBs amapezeka pamitundu yosiyanasiyana yaposachedwa komanso masinthidwe amagetsi, kuphatikiza makina ogawa a 230V ndi 400V AC.
Kodi AC Miniature Circuit Breaker Imateteza Bwanji Dera?
MCB yeniyeni imaphatikiza njira zotetezera kutentha ndi maginito. Ntchito ziwirizi zimathetsa mavuto osiyanasiyana amagetsi.
- Chitetezo cha kutentha:Kuchulukana kosalekeza kumatenthetsa chinthu cha bimetallic. Kutentha kukafika pachimake chogwirira ntchito, makinawo amamasula ndikutsegula dera.
- Chitetezo cha Magnetic:Kuthamanga kwafupipafupi kumapanga mphamvu ya maginito yomwe imayendetsa kayendedwe ka nthawi yomweyo, ndikudula chigawocho mofulumira.
- Kusintha pamanja:MCB nthawi zambiri imatha kusinthidwa pamanja kuti ikhale yodzipatula panthawi yokonza kapena kukhazikitsa.
Kuphatikiza uku kumapangitsa kuti MCB ikhale yoyenera mabwalo omwe amadzaza nthawi yayitali komanso zolakwika zadzidzidzi zomwe zimafunikira kuwongolera. Mitundu yamakono ya MCB nthawi zambiri imaphatikiza kutulutsa kwamafuta ndi maginito ndipo imatha kupereka mawonekedwe a B, C, kapena D kutengera zomwe akufuna.
Ndi Zida Ziti Zaukadaulo Zomwe Ogula Ayenera Kuwona?
Ogula nthawi zambiri amangoyang'ana pazomwe zilipo komanso mtengo wake pomwe amayang'ana magawo ena. Kuti mukhale ndi ndondomeko yodalirika ya polojekiti, zizindikiro zotsatirazi ziyenera kufufuzidwa pamodzi.
| Kufotokozera | Kuganizira Kwambiri | Buyer Checkpoint |
|---|---|---|
| Kuphwanya Mphamvu | 6kA pa pa | Tsimikizirani kuti ndiyokwanira pamavuto omwe akuyembekezeka |
| Adavoteledwa Panopa | Zotengera pulogalamu | Gwirizanitsani ndi katundu ndi kondakitala mphamvu |
| Adavotera Voltage | Ma voltages wamba a AC | Gwirizanitsani mphamvu yamagetsi |
| pafupipafupi | 50/60Hz nthawi zambiri amatchulidwa | Tsimikizirani kuti ikugwirizana ndi grid yapafupi |
| Ulendo Makhalidwe | B / C / D | Gwirizanitsani mapindikira kuti mukweze mawonekedwe a inrush |
| Pole Configuration | 1P, 1P+N, 2P, 3P, 4P kutengera mankhwala | Gwirizanitsani makonzedwe a wiring |
| Kukwera | Njanji ya DIN ndiyofala | Tsimikizirani kuti zikugwirizana ndi gulu logawa |
| Miyezo | IEC / EN 60898-1 kapena mulingo wina woyenera | Funsani zolemba zaukadaulo ndi chiphaso ngati pakufunika |
Zolemba zamalonda zochokera kwa opanga okhazikika nthawi zambiri zimapereka magawo awa palimodzi m'malo motengera kusweka kwamphamvu ngati njira yokhayokha.
Kodi ma Curve a B, C, ndi D amakhudza bwanji kusankha?
Njira yokhotakhota ndi imodzi mwazisankho zofunika kwambiri pofotokoza MCB. Kalatayo ikufotokoza momwe maginito amatulutsira nthawi yomweyo amagwira ntchito molingana ndi mphamvu ya wosweka.
| Mpinda | Mtundu Wambiri Woyenda Wamaginito | Kugwiritsa Ntchito |
|---|---|---|
| B | 3-5 × mu | Katundu wocheperako, kuyatsa, mabwalo otsutsa |
| C | 5-10 × mu | Zolinga zonse komanso zolemetsa pang'ono |
| D | 10-20 × mu | Katundu wothamanga kwambiri monga ma motors ena ndi ma transfoma |
Magulu awa nthawi zambiri amalumikizidwa ndi mawonekedwe a IEC 60898-1 MCB.
Mwachitsanzo, ngati injini ipanga mphamvu yoyambira kwakanthawi kuwirikiza kangapo kuposa momwe imagwirira ntchito nthawi zonse, piritsi lovuta kwambiri limatha kuyenda mopanda chifukwa poyambira. Chipangizo cha C-curve kapena D-curve chingakhale choyenera, malingana ndi zipangizo ndi mapangidwe athunthu.
Kodi 6kA AC Miniature Circuit Breakers Amagwiritsidwa Ntchito Kuti?
Chowotcha chaching'ono cha 6kA AC chikhoza kukhala choyenera kugwiritsa ntchito magetsi ambiri otsika pomwe mulingo weniweni, voteji, zamakono, ndi zofunikira zoyika zikugwera mkati mwazomwe chipangizocho chimafunikira.
- Kugawa nyumba:mabwalo ounikira, ma socket circuits, zida zapakhomo, ndi ma circuit circuit.
- Nyumba zamalonda:matabwa ogawa maofesi, makina ounikira, malo ogulitsa, ndi mabwalo ang'onoang'ono a zipangizo.
- Zida zowongolera mafakitale:mabwalo othandizira, zida zowongolera, ma mota ang'onoang'ono, ndi katundu wina wocheperako.
- Ntchito zomanga:Mabwalo othandizira okhudzana ndi HVAC, mapampu, kuyatsa, ndi kugawa mphamvu kwanthawi zonse komwe kuli koyenera.
- Makabati ogawa magetsi:chitetezo cha nthambi-dera ndi machitidwe ogawa modular.
Ntchito yeniyeni iyenera kutsimikiziridwa nthawi zonse motsutsana ndi zolemba zopangidwa ndi wopanga komanso zofunikira pakuyika. Chiyerekezo cha 6kA sichiyenera kuganiziridwa kuti ndichoyenera malo aliwonse amagetsi.
Ndi Mavuto ati omwe MCB Yoyenera Ingathandize Kupewa?
Chimodzi mwazofunikira kwambiri pakugula sikungokhala ngati wophwanya amagwira ntchito, koma ngati amagwira ntchito mosasinthasintha malinga ndi momwe adasankhidwira.
1. Kuchulukirachulukira
Dongosolo lokhala ndi mphamvu yamagetsi kwa nthawi yayitali lingayambitse kutentha kwa kondakitala ndi kuwonongeka kwa zida zomwe zisanakwane. Kutulutsa kwamafuta kumapangidwa kuti kugwirizane ndi kuchuluka kwachulukidwe kokhazikika.
2. Kuwonongeka Kwafupipafupi
Kusweka koyenera kumalola MCB kusokoneza mphamvu yamagetsi mopitilira muyeso popanda kupitilira kusokoneza komwe kwafotokozedwa.
3. Kuyenda Kosokoneza
Njira yokhotakhota yosayenera ingayambitse kusokoneza kosafunikira pamene zida ziyamba. Kufananiza mawonekedwe a B, C, kapena D ndi katundu kumathandiza kuthana ndi vutoli.
4. Kusamalira Kovuta
Modular MCB imatha kupereka kudzipatula kwapamanja, kuthandiza akatswiri amagetsi kuzindikira ndikugwira ntchito pamabwalo amodzi popanda kutseka njira yonse yogawa.
5. Kusatsimikizika kwa Zogula
M'mapulojekiti a B2B, kusakwanira kwaukadaulo kumatha kubweretsa zinthu zolakwika, kuchedwetsa kuvomereza, kapena ndalama zosinthira. A bwino mankhwala datasheet ndi kumatanthauza luso magawo kuchepetsa ngozi zimenezi.
Kodi Ogula Angasankhe Bwanji 6kA MCB Yoyenera?
Kusankha kothandiza kungagawidwe m'njira zingapo. Izi zimathandiza mainjiniya ndi magulu ogula kuti asasankhe chinthu kuchokera pamakatalohu okha.
-
Dziwani mphamvu yamagetsi.
Tsimikizirani mphamvu yamagetsi ya AC komanso ngati ntchitoyo ndi gawo limodzi kapena magawo atatu. -
Werengetsani kapena kutsimikizira kapangidwe kake.
Mawonekedwe apano a MCB ayenera kulumikizidwa ndi kuchuluka kwa dera lomwe akuyembekezeredwa komanso mphamvu yovomerezeka ya kondakitala. -
Tsimikizirani zomwe zikuyembekezeka kukhala zazifupi.
Yang'anani cholakwika chomwe chilipo pamalo oyika ndikutsimikizira kuti mphamvu yosweka ya 6kA ndiyokwanira. -
Onani kuchuluka kwa katundu.
Dziwani ngati dera lili ndi ma motors, ma transfoma, zida zamagetsi, magetsi osinthira, kapena zinthu zina zomwe zimapanga poyambira kwambiri. -
Sankhani njira yokhotakhota yoyenera.
Sankhani B, C, kapena D kutengera katundu weniweni ndi zofunikira zachitetezo m'malo mongosankha njira yodziwika bwino. -
Sankhani masinthidwe a pole.
Tsimikizirani ngati pulojekiti ikufuna 1P, 1P+N, 2P, 3P, 3P+N, kapena masinthidwe ena othandizidwa ndi mndandanda wazogulitsa. -
Tsimikizirani miyezo ndi zolembedwa.
Funsani zinsinsi zomwe zikuyenera kugwiritsidwa ntchito, zambiri zamayeso, ziphaso, zojambula zowoneka bwino, ndi malangizo oyika. -
Onani ngati gulu likugwirizana.
Tsimikizirani kukula kwa njanji ya DIN, makonzedwe a terminal, mtundu wa kondakitala, zowonjezera, ndi malo oyika omwe alipo.
- □ Mphamvu yamagetsi yatsimikiziridwa
- □ Zovoteledwa zatsimikizika
- □ 6kA kuthyola mphamvu kutsimikiziridwa
- □ B/C/D curve yosankhidwa malinga ndi katundu
- □ Masinthidwe a pole atsimikiziridwa
- □ Mulingo woyenera watsimikiziridwa
- □ Makulidwe ndi kuyika kwa DIN-njanji kufufuzidwa
- □ Chitsimikizo ndi zolemba zoyeserera zafunsidwa
- □ Kuwunikidwanso kwa malo ogwirira ntchito
- □ Kulumikizana ndi chitetezo cha kumtunda/kutsika kwa mtsinje kuganiziridwa
Zolakwika Zosankha Zomwe Muyenera Kupewa
Ngakhale zoyambira zitawoneka zolondola, zolakwika zingapo zimatha kubweretsa mavuto pambuyo pokhazikitsa.
| Kulakwitsa | Vuto Lotheka | Kuchita Bwino |
|---|---|---|
| Kusankha kokha ndi amperage | Zofunikira zina sizingafanane | Unikani mphamvu yamagetsi, ma curve, mphamvu yosweka, mitengo, ndi miyezo palimodzi |
| Kungoganiza kuti chophwanya chilichonse cha 6kA chimatha kusintha | Zogulitsa zosiyanasiyana zimatha kukhala ndi miyeso yosiyana komanso momwe amagwirira ntchito | Fananizani mapepala athunthu |
| Kugwiritsa ntchito njira yokhotakhota yolakwika | Kuthamanga kwa zovuta kapena kusakwanira kugwiritsa ntchito | Unikani kuchuluka kwa katundu weniweni |
| Kunyalanyaza zomwe zikuyembekezeka kukhala zolakwika | Kuphwanya mphamvu kungakhale kosakwanira | Tsimikizirani mulingo wolakwika pamalo oyika |
| Kuyang'ana kwa conductor coordination | Chitetezo sichingafanane bwino ndi makina amawaya | Gwirizanitsani mavoti a MCB ndi mphamvu ya kondakitala |
| Kugula popanda zolemba | Kuvomereza ndi kukhazikitsa kungakhale kovuta | Funsani zikalata zaukadaulo ndi zotsatizana musanagule |
Kuyanjanitsa kolondola pakati pa mavotedwe apano, kuchuluka kwa kondakitala, mawonekedwe aulendo, ndi mulingo wolakwika ndizofunikira pakusankha kodalirika kwa MCB.
Chifukwa Chiyani Mumagwira Ntchito Ndi Wopanga MCB Wodziwa Ntchito?
Pazogula zambiri, ma projekiti a OEM, mgwirizano wogawa, komanso kupanga magetsi, mtundu wazinthuzo ndi chinthu chimodzi chokha. Ogula amafunikiranso tsatanetsatane wokhazikika, kupanga kokhazikika, kulumikizana kwaukadaulo komvera, ndi zolemba zomwe zimathandizira kuvomerezedwa kwa polojekiti.
Malingaliro a kampani Malingaliro a kampani Malingaliro a kampani Malingaliro a kampani Shanghai DaDa Electric Co., Ltd.itha kuwonedwa ngati bwenzi lopanga makasitomala omwe akufuna mayankho ang'onoang'ono ophwanya dera komanso zinthu zodzitchinjiriza zamagetsi otsika. Kwa ogula a B2B, kuwunika kothandiza kwambiri kwaothandizira kuyenera kuyang'ana kwambiri zaukadaulo woyezeka m'malo mongofuna kutsatsa kokha.
- Chotsani zomwe zili muzinthu ndi zofunikira zaukadaulo
- Kutanthauzidwa kovotera pakali pano ndi ma voltage ranges
- Zosankha zomwe zilipo zosweka
- Zambiri zokhotakhota pamaulendo osiyanasiyana
- Zojambula zamalonda ndi chidziwitso cha unsembe
- Zikalata zovomerezeka komanso zovomerezeka
- Njira zokhazikika zopangira ndi kuwongolera khalidwe
- Kuyankhulana kwaukadaulo pazofunikira zenizeni za polojekiti
- OEM / ODM thandizo ngati kuli kotheka
Kwa otumiza kunja ndi ogulitsa magetsi, zinthu izi zitha kukhala zofunika makamaka pamene zinthu ziyenera kuphatikizidwa munjira zosiyanasiyana zogawa kapena kugulitsidwa m'misika ingapo.
Mafunso Ofunsidwa Kawirikawiri
6kA pa imatanthawuza kuchuluka kwa kusweka kwa kagawo kakang'ono pansi pamiyeso yoyenera. Izi zikuyimira ma amperes 6,000 ndipo siziyenera kusokonezedwa ndi momwe MCB ilili pano.
Ayi. Kukwanira kumatengera zomwe zikuyembekezeka kufupika, mphamvu yamagetsi yamagetsi, mawonekedwe aulendo, masinthidwe a pole, mikhalidwe yoyika, ndi malamulo ogwiritsiridwa ntchito. Cholakwika chomwe chilipo chiyenera kufufuzidwa musanasankhe chophwanyira.
Manambala awiriwa amafotokoza magawo osiyanasiyana. 6kA ndi chiwerengero cha mphamvu zowonongeka, pamene 6A ndi mtengo wamakono. Wosweka amatha kukhala ndi 6A yovotera pano komanso mphamvu yosweka ya 6kA.
Amazindikira mawonekedwe osiyanasiyana omwe amangoyenda nthawi yomweyo. Pansi pa IEC 60898-1, B nthawi zambiri imalumikizidwa ndi pafupifupi 3-5 nthawi zovotera pano, C pafupifupi 5-10, ndi D pafupifupi 10-20.
Ma motors amatha kukhala ndi poyambira kwambiri, kotero mawonekedwe a C kapena D angakhale oyenera kutengera mota ndi dera. Kusankhidwa komaliza kuyenera kuganizira zoyambira pakalipano, zolakwika, kutsekereza chingwe, ndi kulumikizana ndi zida zina zoteteza.
Osati zokha. Ngati chiwongolero chapafupipafupi chikuposa mphamvu ya wosweka, chipangizo cha 6kA sichingakhale choyenera. Wosweka ayenera kusankhidwa molingana ndi vuto ndi zofunikira zoyikapo.
Ogula nthawi zambiri amayenera kupempha zidziwitso zatsatanetsatane, mawonekedwe aukadaulo, zojambula zowoneka bwino, malangizo oyikapo, zikalata zoyeserera kapena ziphaso zotsimikizira, ndi milingo yoyenera yazogulitsa. Zofunikira zokhudzana ndi polojekiti zingafunike zolemba zina.
Kusagwirizana pakati pa magulu opangira, kutsata, zolemba zaukadaulo, kuwongolera bwino, kuthekera kotumiza, ndi chithandizo chaukadaulo pambuyo pogulitsa zitha kukhudza kwambiri mtengo wonse komanso kudalirika kwa polojekiti yamagetsi ya B2B.
