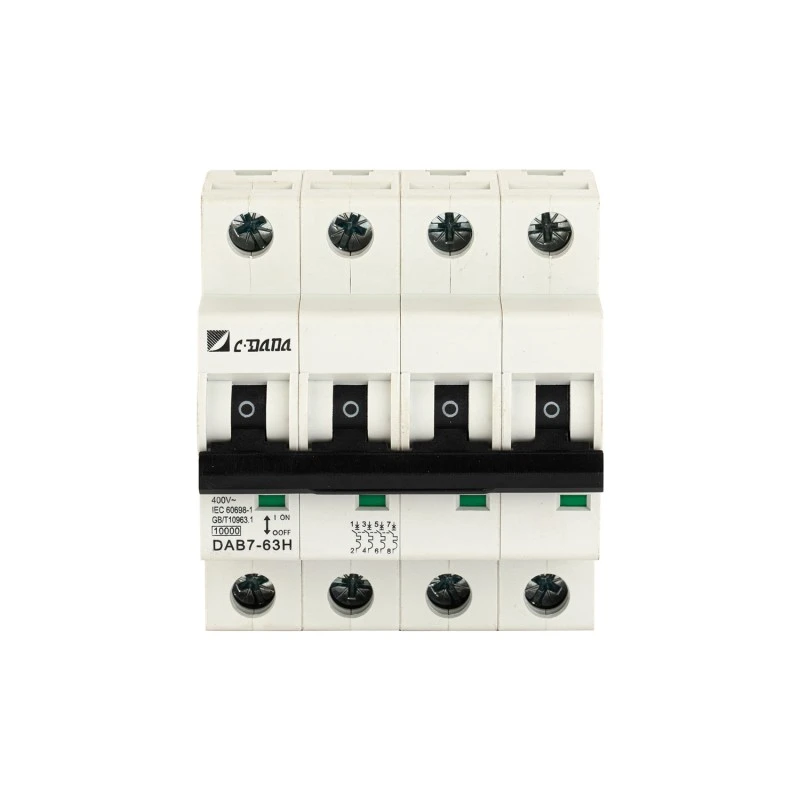

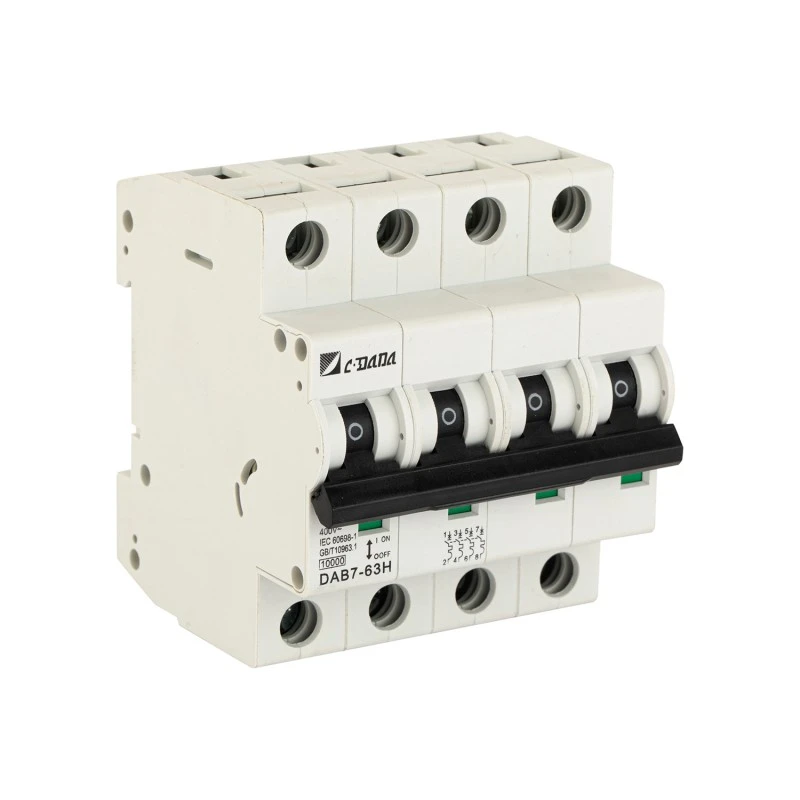

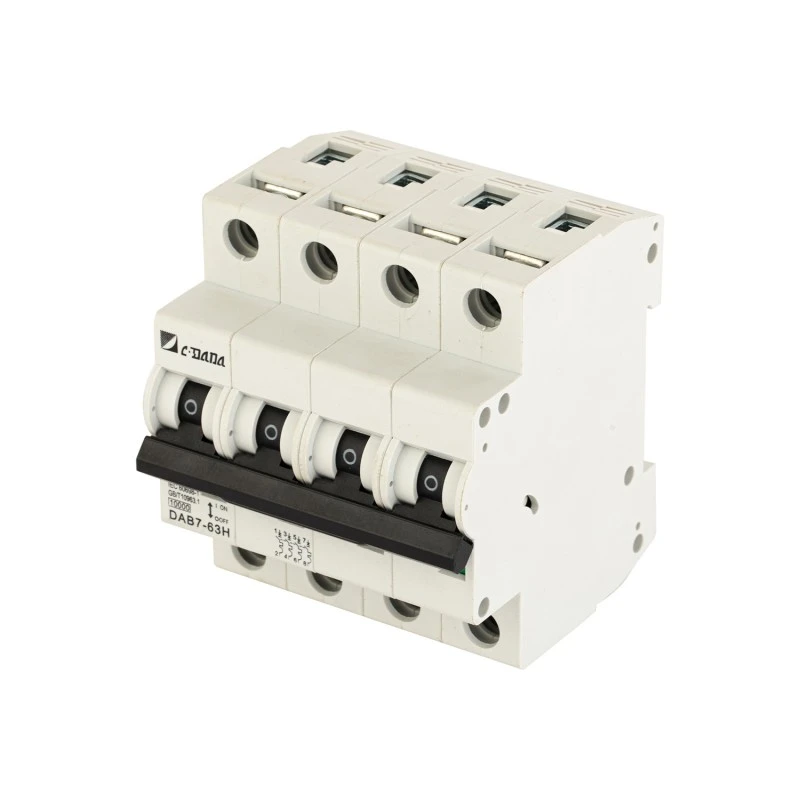

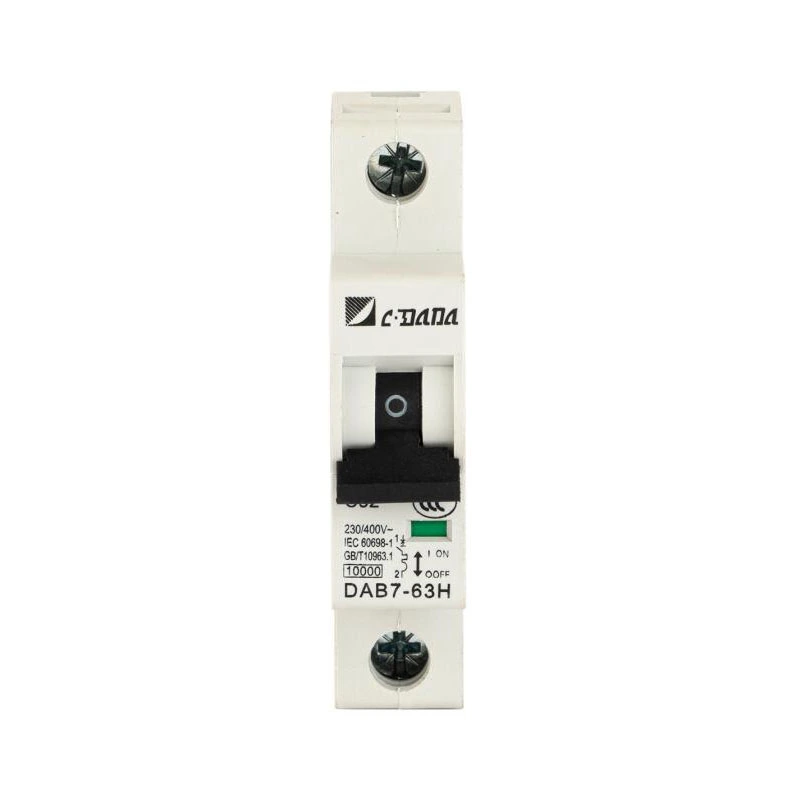

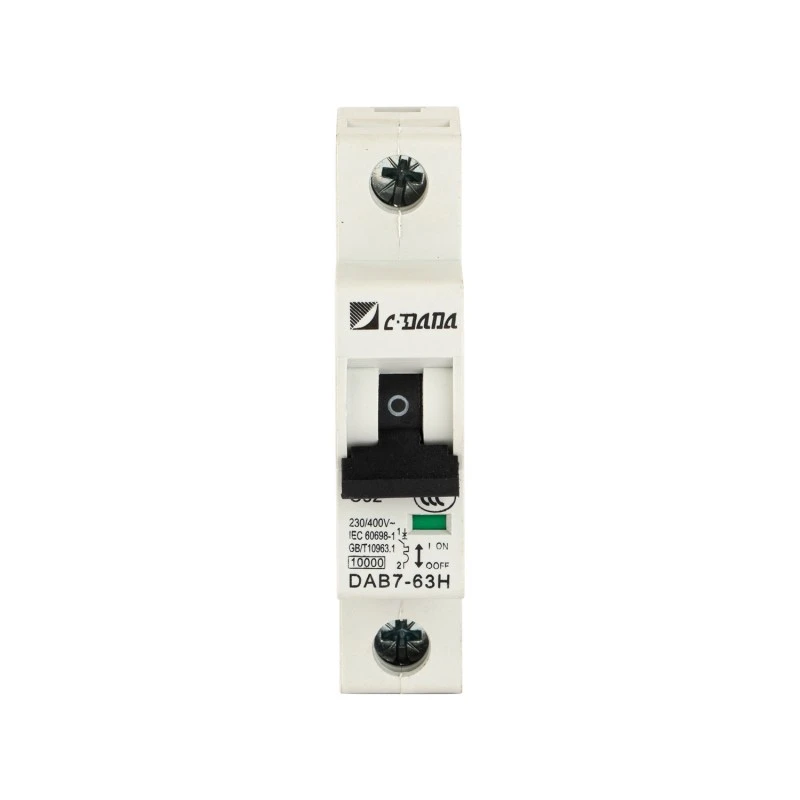

10KA AC Miniature Circuit Breaker
Model:DAB7-63H
10KA AC Miniature Circuit Breaker ndi chida chapamwamba komanso chapamwamba kwambiri, choperekedwa ndi wopanga odalirika CDADA, wokhala ndi satifiketi ya CE, CB, ASTA, SEMKO, ndi ROHS. 1P/2P/3P, 6–63A, yabwino kwa mapanelo mafakitale & malonda. Kuthamanga kwakukulu kwa 10kA, -40 ° C mpaka + 50 ° C ntchito, kukhudzana ndi siliva-aloyi. OEM & oda chochuluka olandiridwa.
Pazofunsira zofunikila pomwe mafunde olakwika kwambiri komanso chitetezo chokhazikika sichingangolephereka, CDADA DAB7-63H 10KA AC Miniature Circuit Breaker imapereka chitetezo chamakampani mwanjira yaying'ono. Yopangidwa ndi Shanghai DADA Electric CO., LTD., chophwanyira ichi cha 10kA chaching'onochi chapangidwira mapanelo amagulu, matabwa ogawa m'nyumba zogona, zamalonda, ndi zopepuka zamafakitale-zopereka chitetezo chodalirika chamafuta (mochulukira) ndi ma elekitiroma (chifupifupi) pamlingo 8 wapano (6A-63A) ndi 1P/2P/3P masinthidwe
Wotsimikizika ku CE, CB, ASTA, ndi SEMKO, amakwaniritsa miyezo yolimba yachitetezo chapadziko lonse lapansi. Ndi chipinda chapamwamba cha 13-plate arc, alloy-containing contact alloy, ndi njira ziwiri zogwirizanitsa (PIN / FORK), DAB7-63H imatsimikizira kutha kwa arc mofulumira, kuchepa kwa kutentha, ndi moyo wautali wamagetsi-ngakhale pansi pa kusintha pafupipafupi kapena kutentha kwakukulu kozungulira.
Zofunika Kwambiri
Chitsanzo: DAB7-63H Series
Mtundu: AC Miniature Circuit Breaker (MCB)
Kuphwanya Mphamvu: 10kA @ 230/400V AC

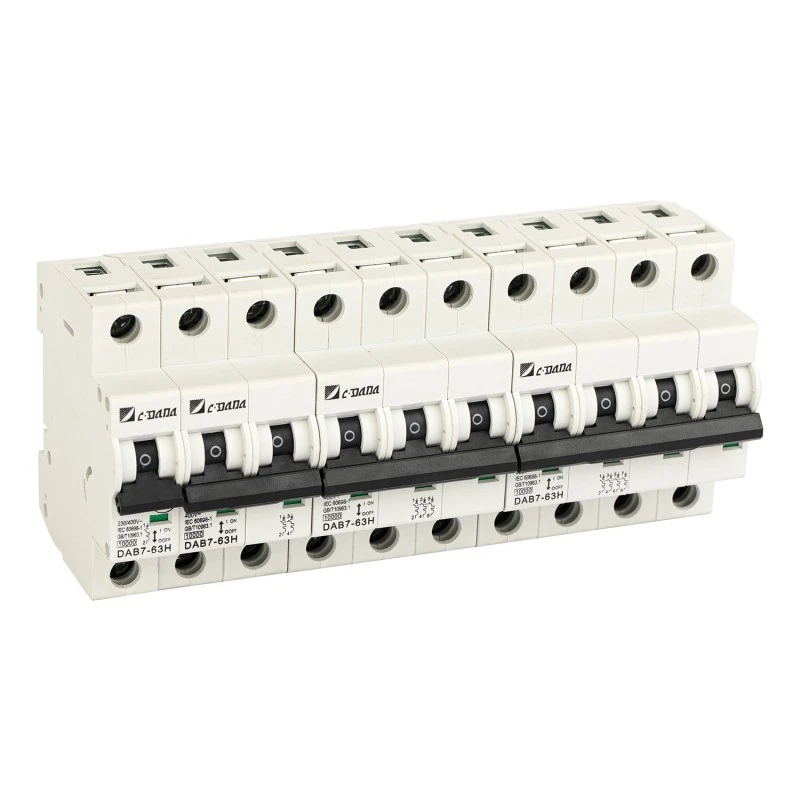

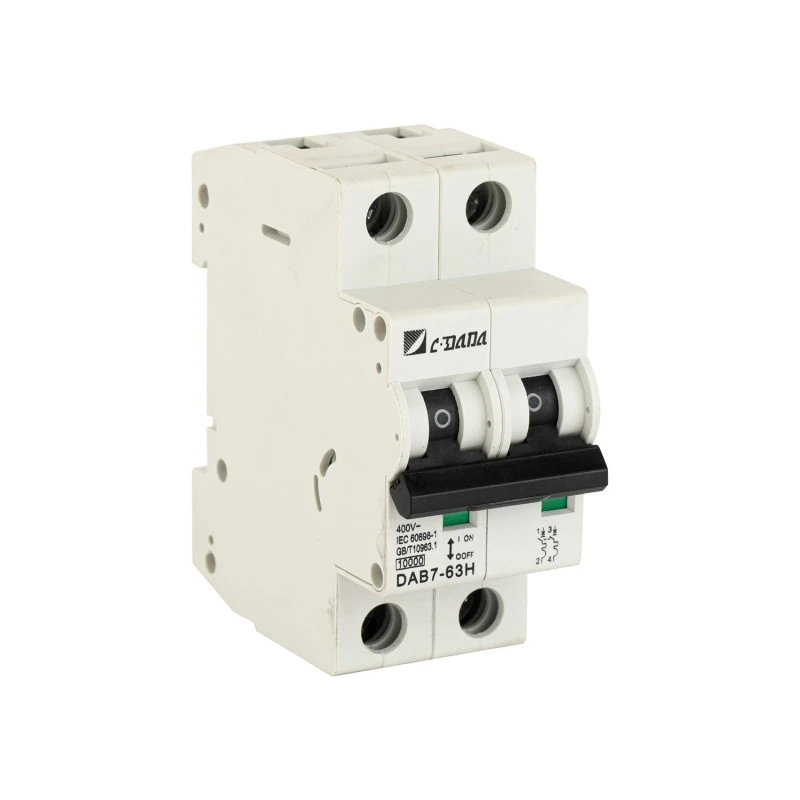

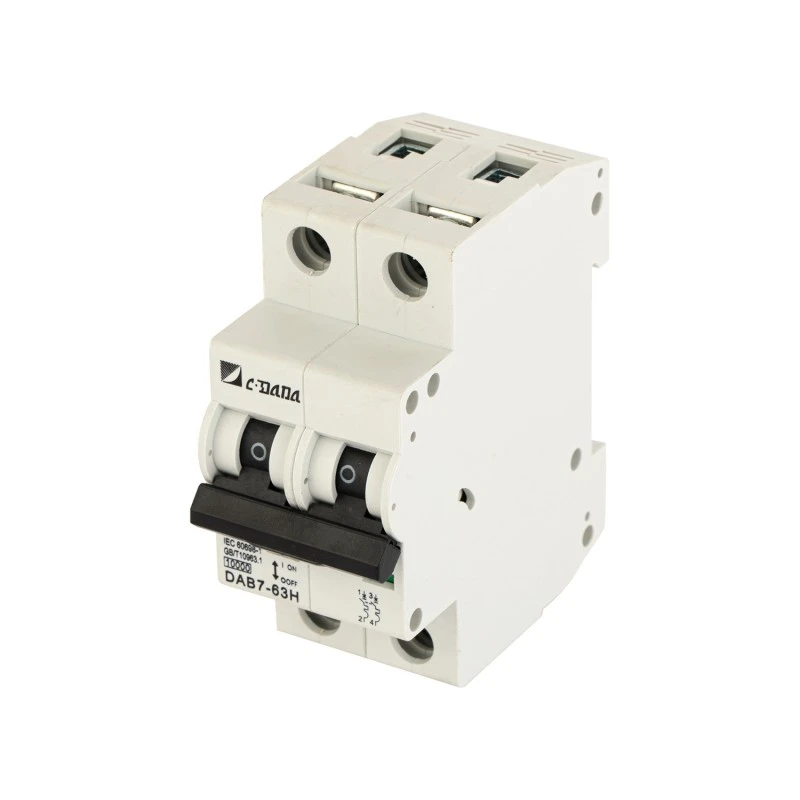

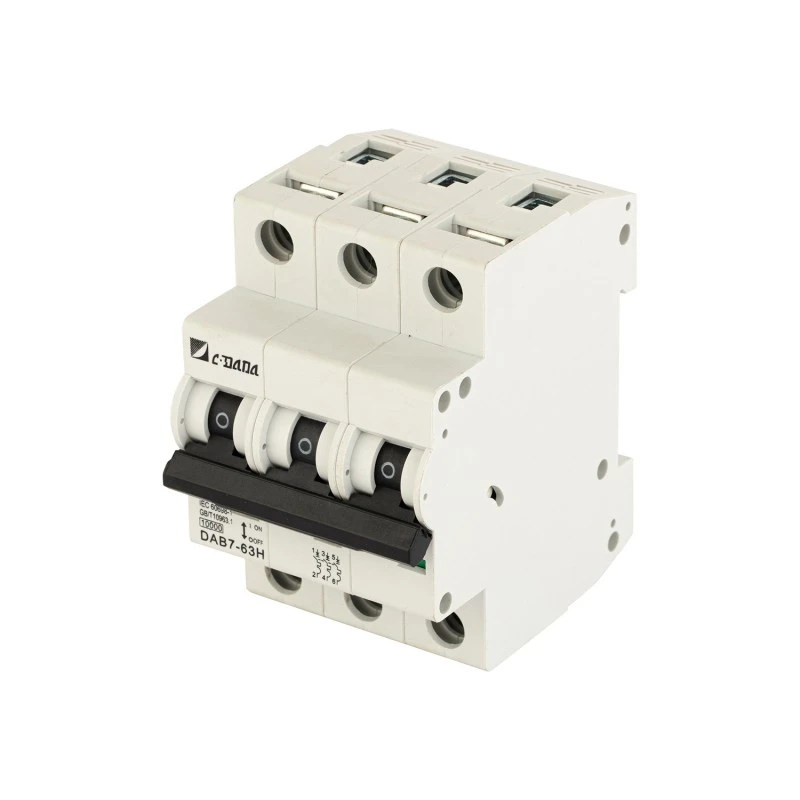

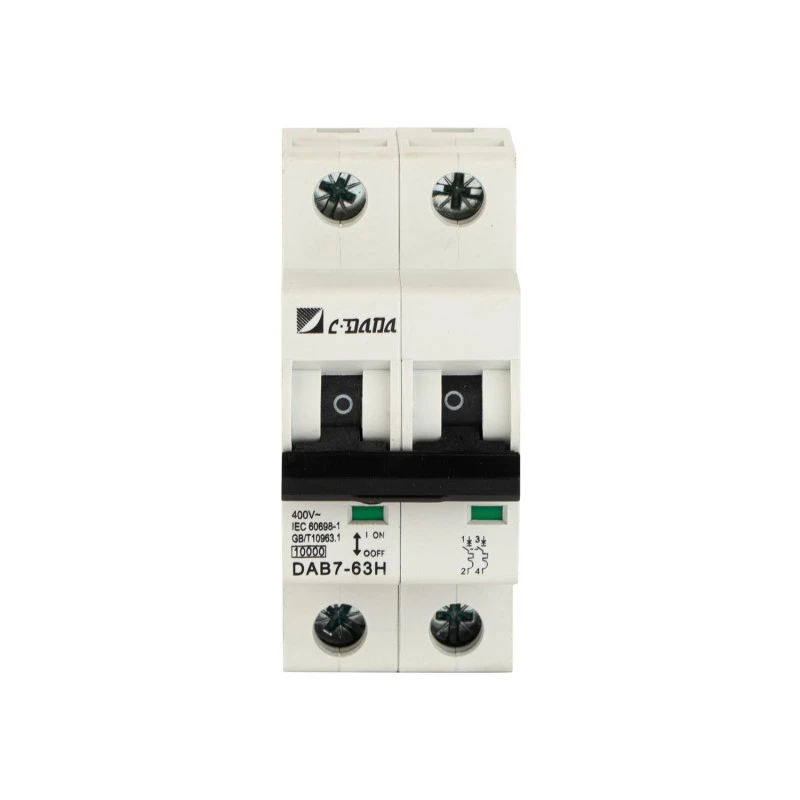

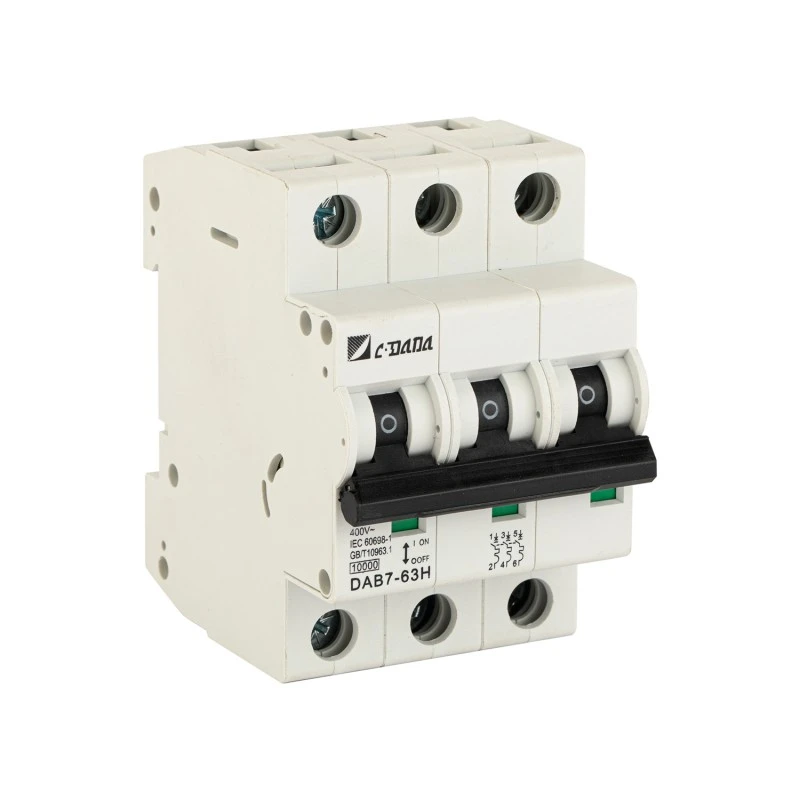

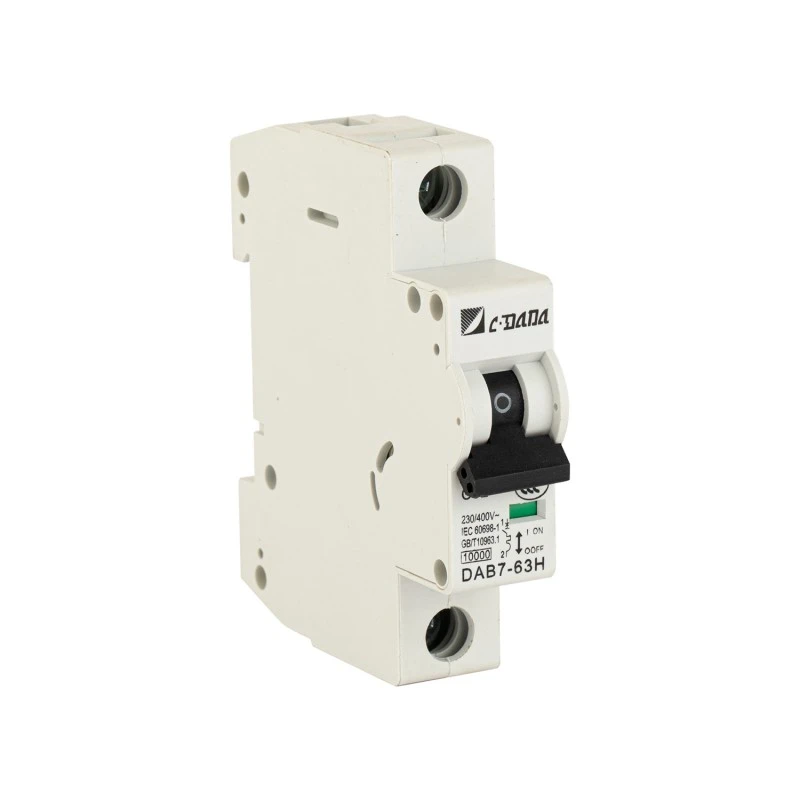

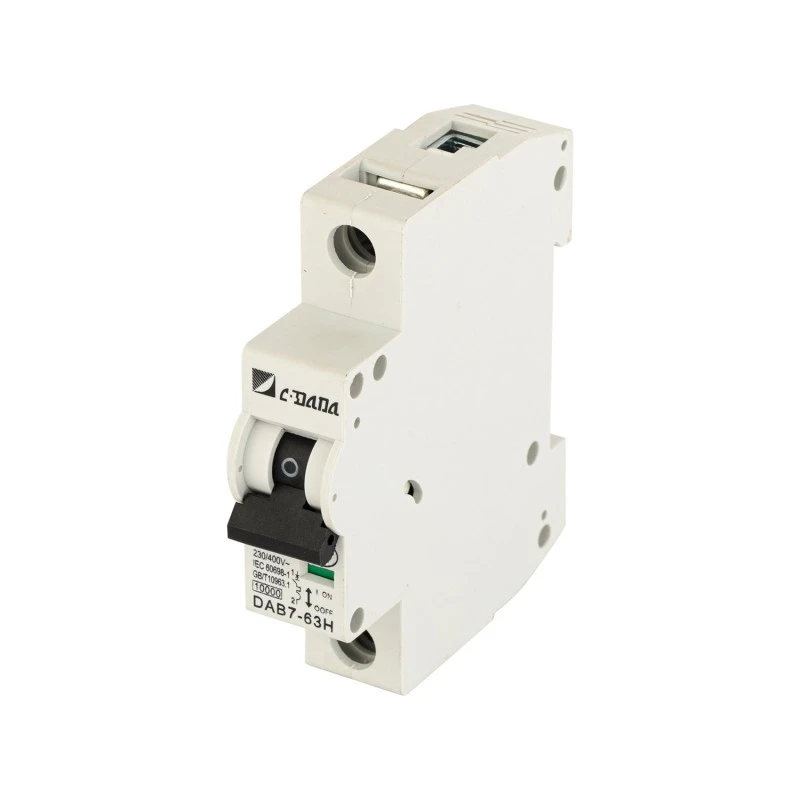

Zithunzi: 1P, 2P, 3P
Idavoteredwa Panopa (Mu): 1A,2A,3A,4A,5A,6A, 10A, 16A, 20A, 25A, 32A, 40A, 63A
Kutentha kwa Ntchito: -40 ° C mpaka +50 ° C

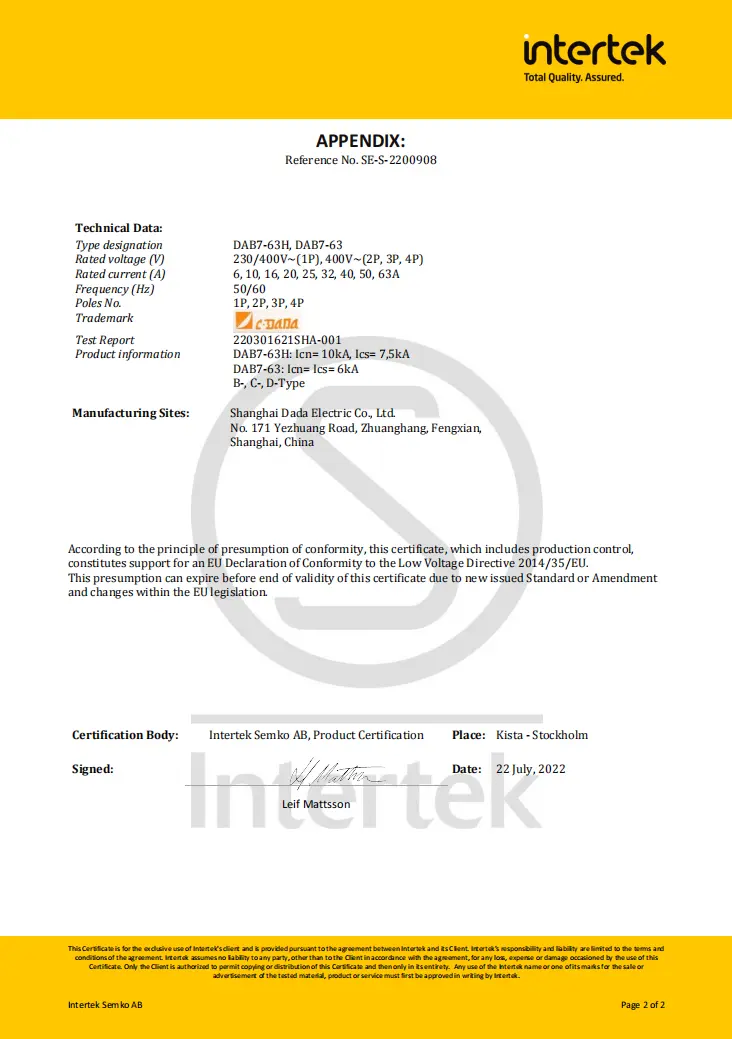

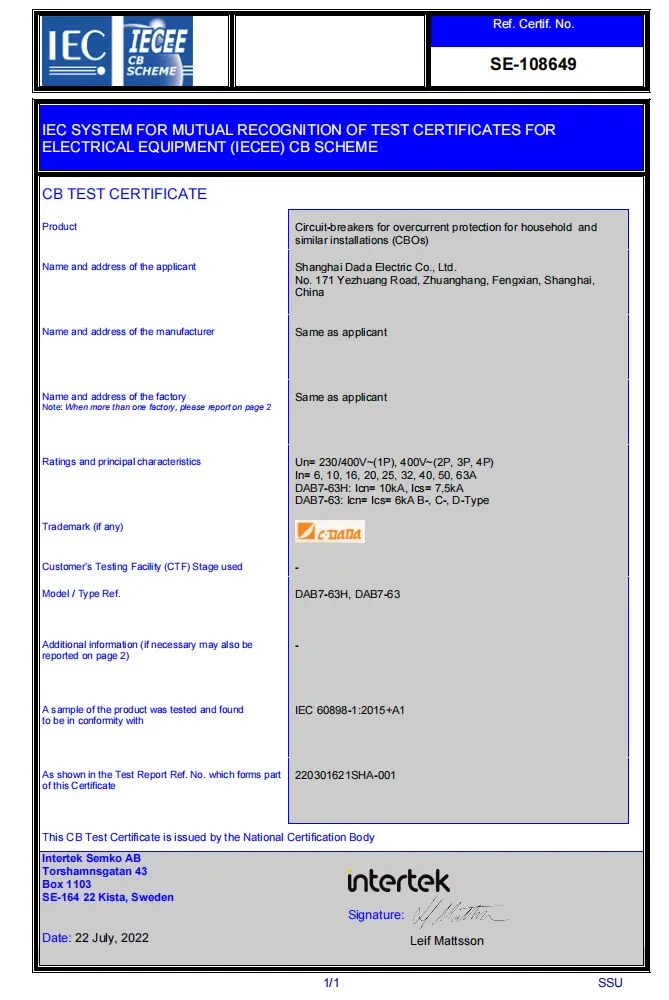

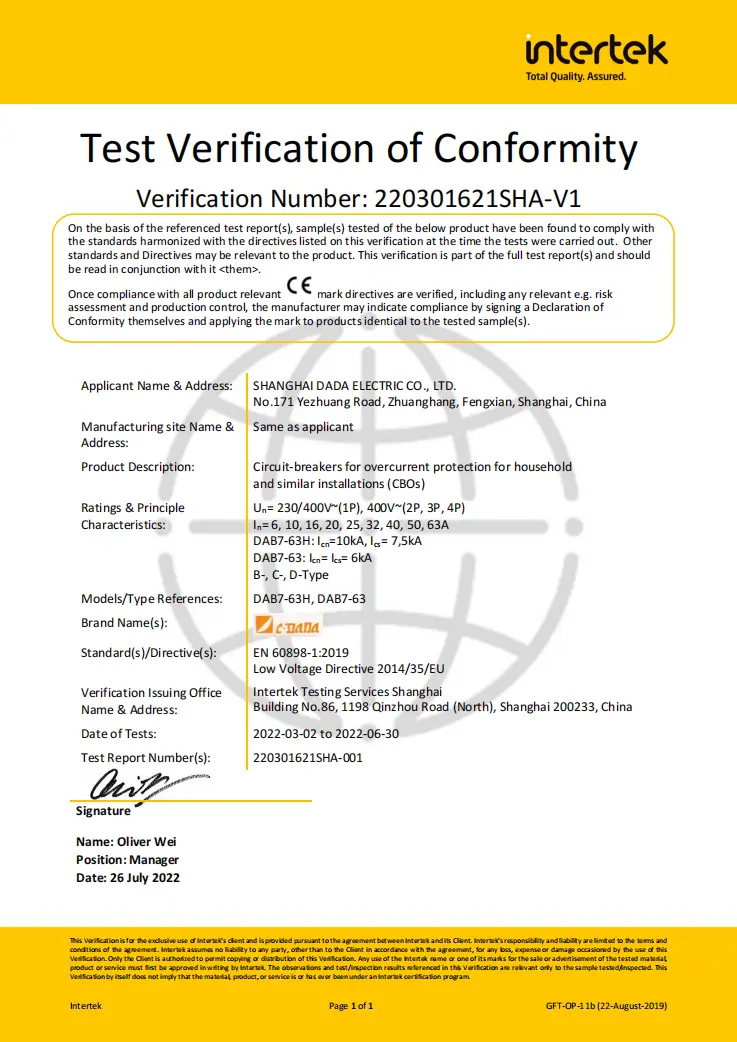

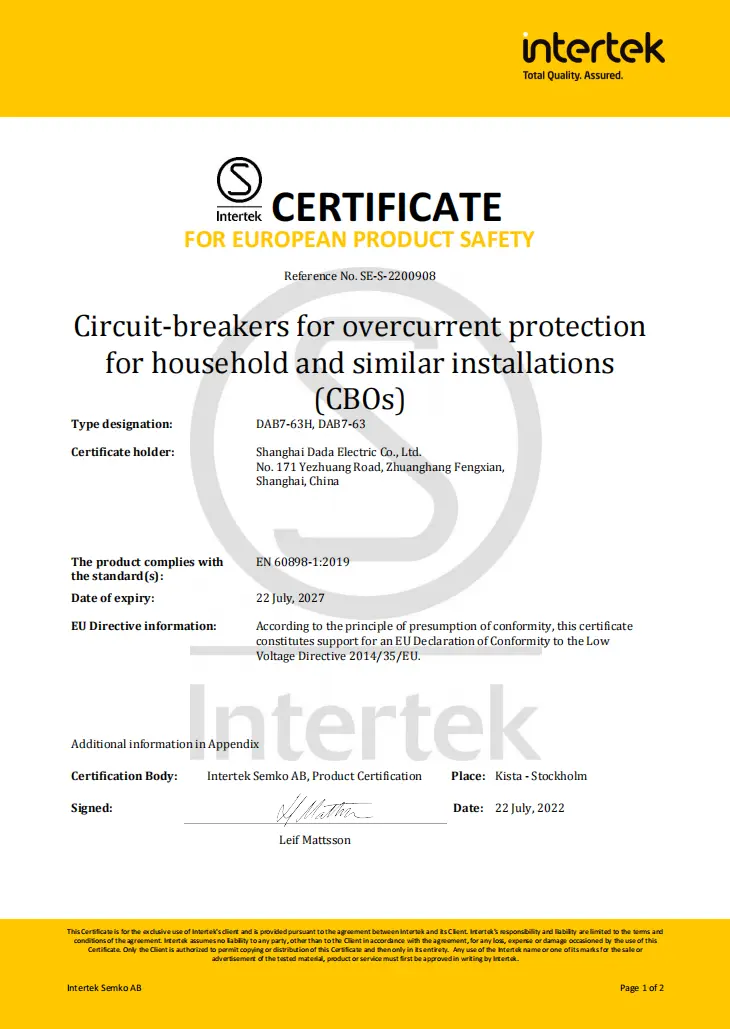

Chitsimikizo: CE, CB, ASTA, SEMKO

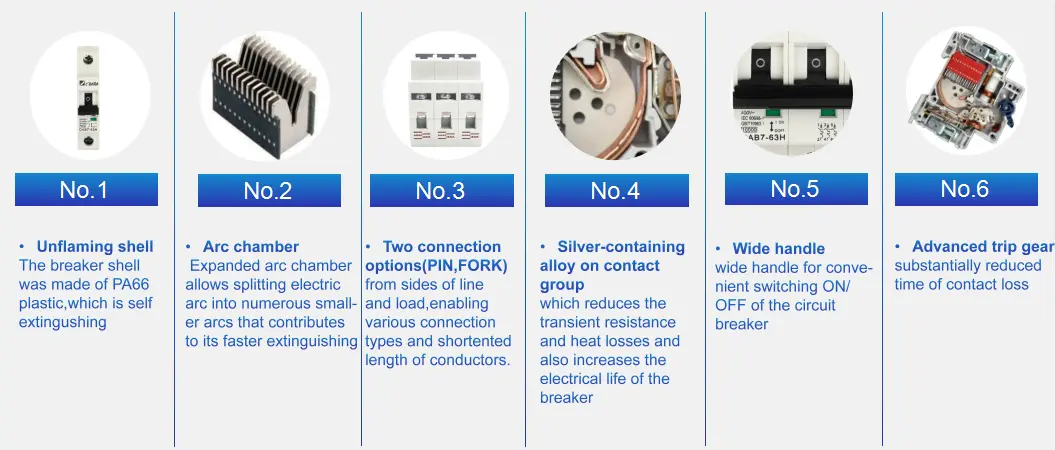

Zofunika Zapangidwe:
Chipinda cha 13-plate arc → kugawanika kwa arc mwachangu kwambiri & kutha
Zolumikizana ndi Silver-alloy → kukana kutsika, moyo wautali
Zosankha zapawiri: PIN kapena FORK (mzere & mbali ya katundu)
Zenera lowonetsa ON/OFF/trip indicator
Wide ergonomic chogwirira ntchito mosavuta
Nyumba zoletsa moto, zotsutsana ndi chikasu (UL94 V-0 zofanana)
Zomangira zazikulu za torque (zoyesedwa mpaka 3 Nm) zokhala ndi +/- mitu yogwira ntchito
DIN njanji yokhala ndi malo okhoma apawiri → kuyika kotetezedwa
Technical Data Sheet
|
MCB DAB7-63 |
|||||||
|
Kuteteza kugawa kwamagetsi wamba (IEC/EN 60898-1) |
|
|
|
|
|||
|
Mitengo |
1P |
2P |
3P |
4P |
|||
|
Kuchita kwamagetsi |
|||||||
|
Ntchito |
chitetezo chafupipafupi, chitetezo chodzaza, kudzipatula, kuwongolera |
||||||
|
Mafupipafupi f (Hz) |
50-60Hz |
||||||
|
Mphamvu yamagetsi yogwira ntchito Ue V AC |
230/400 |
400 |
|||||
|
Zovoteledwa mu(A) |
1,2,3,4,5,6,10,16,20,25,32,40,50,63 |
||||||
|
Mphamvu yamagetsi ya insulated Ui (V) |
500 |
||||||
|
Mphamvu yolimbana ndi voteji Uimp kV |
4 |
||||||
|
Nthawi yomweyo ulendo |
Chithunzi cha DAB7-63N |
B/C/D |
|||||
|
DAB7-63H |
B/C/D |
||||||
|
Idavotera Short circuit Icn(kA) |
Chithunzi cha DAB7-63N |
6 |
|||||
|
DAB7-63H |
10 |
||||||
|
Mtundu womasulidwa |
Mtundu wa maginito otentha |
||||||
|
Moyo wothandizira(O~C) |
Zimango |
Mtengo weniweni |
20000 |
||||
|
Mtengo wokhazikika |
4000 |
||||||
|
Zamagetsi |
Mtengo weniweni |
8000 |
|||||
|
Mtengo wokhazikika |
4000 |
||||||
|
Kulumikizana ndi kukhazikitsa |
|||||||
|
Digiri yachitetezo |
IP20 |
||||||
|
Waya mm² |
1-35 |
||||||
|
Kutentha kwa ntchito |
-5 ~ +40 ℃ |
||||||
|
Kukaniza chinyezi ndi kutentha |
Kalasi 2 |
||||||
|
Kutalika pamwamba pa nyanja |
≤2000 |
||||||
|
Chinyezi chachibale |
+20℃ , ≤90% +40℃ , ≤50% |
||||||
|
Digiri ya kuipitsa |
2 |
||||||
|
Kuyika chilengedwe |
Pewani kugwedezeka kowonekera ndi kugwedezeka |
||||||
|
Kalasi yoyika |
Kalasi II, Kalasi III |
||||||
|
Kukwera |
Chithunzi cha DIN35 |
||||||
|
Kuphatikiza ndi Chalk |
|||||||
|
Kulumikizana kothandizira |
Inde |
||||||
|
Kulumikizana ndi ma alarm |
Inde |
||||||
|
Shunt kumasulidwa |
Inde |
||||||
|
Kutulutsidwa kwa Undervoltage |
Inde |
||||||
|
Kulumikizana kothandizira+Kulumikizana ndi Alamu |
Inde |
||||||
|
Makulidwe(mm) (WxHxL) |
a |
18 |
36 |
54 |
72 |
||
|
b |
80 |
80 |
80 |
80 |
|||
|
c |
72 |
72 |
72 |
72 |
|||
Chifukwa Chosankha CDADA AC MCB 10kA?
★ Magwiridwe Amagulu Amakampani mu Fomu Yaing'ono
Ngakhale ma MCB okhazikika amapereka 6kA, mlingo wa 10kA wa DAB7-63H umapangitsa kukhala woyenera malo omwe ali pafupi ndi malo akuluakulu - monga zipinda zogawa zapansi, malo ochitira malonda, kapena malo ogwirira ntchito opepuka a mafakitale-kumene mafunde olakwika amakhala okwera.★ Chitetezo Chowonjezera & Kukhalitsa
● Chipolopolo chomwe sichimayaka sichimayaka kapena kusinthika
● Gridi yozimitsa kawiri imalepheretsa kutulutsa mpweya wotentha
● Makina opanda maulendo amaonetsetsa kuti kulumikizidwa ngakhale chogwirizira CHOYANKHA
★ Mtengo Wotsika wa Moyo Wonse
Zolumikizana ndi Silver-alloy ndi ma terminals okhathamiritsa amachepetsa kutayika kwamafuta ndi kuwotcherera, kukulitsa moyo wautumiki-makamaka pamapulogalamu apamwamba kwambiri.★ Kuvomereza Padziko Lonse
Ndi ASTA (UK), SEMKO (Nordic), CE (EU), ndi CB (padziko lonse), ma CDADA MCBs amavomerezedwa m'mayiko oposa 70 - abwino kwa omanga magulu otumiza kunja.
★ Mapangidwe Osavuta Okhazikitsa
★ chogwirira chachikulu = ntchito yosavuta
★ Zomangira zogwirira ntchito = palibe zomangira zogwetsedwa
★ Chotsani zenera lowonekera = zowunikira nthawi yomweyo

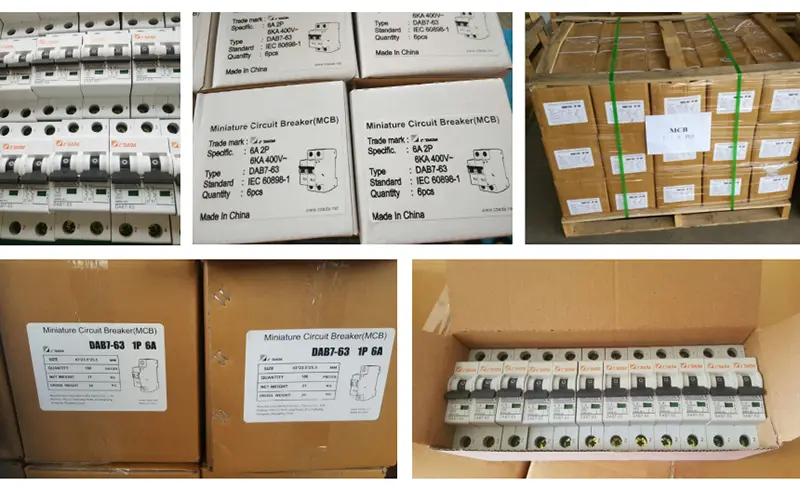

★ Makatoni amphamvu kwambiri, chitetezo cha pallet, chabwino pamayendedwe akutali otumiza kunja
★ Kutumiza mwachangu kwa maoda abwino.
Mapulogalamu abwino
Nyumba Zamalonda: Makanema ogawa pansi, zipinda za seva, malo ogulitsira
Makampani Opepuka: Mabwalo owongolera makina, ma feed ang'onoang'ono amagalimoto, zoyambira zochitira misonkhano
Public Infrastructure: Sukulu, zipatala, maofesi a boma
Malo Okhala Okwera Kwambiri: Malo okhala ndi ma metering apakati
Ma Panel Otumiza kunja: Kwa ma projekiti omwe amafunikira ziphaso zapadziko lonse lapansi
Mafunso Ofunsidwa Kawirikawiri
Q1: Kodi pali kusiyana kotani pakati pa 6kA ndi 10kA MCBs?
A1: Ma MCB a 10kA amatha kusokoneza mafunde apamwamba kwambiri - kuwapangitsa kukhala oyenera kuyika pafupi ndi thiransifoma kapena wopeza ndalama, pomwe milingo yayifupi imaposa 6kA. Gwiritsani ntchito 10kA mumagulu ang'onoang'ono amalonda / mafakitale; 6kA nthawi zambiri imakhala yokwanira kumapeto kwa nyumba.

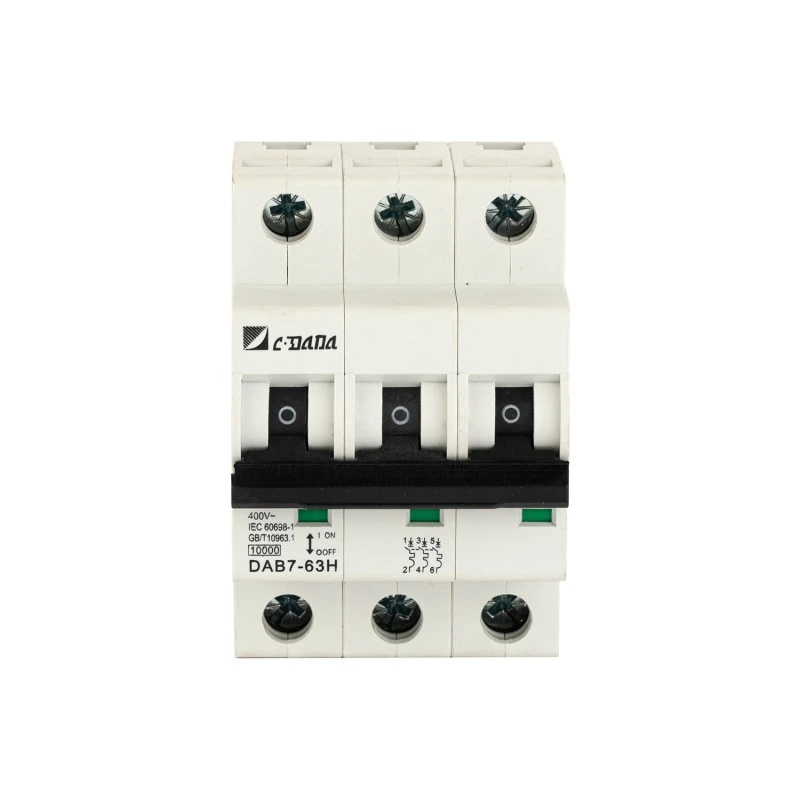

Q2: Kodi 10KA AC Miniature Circuit Breaker ikupezeka mu 3P pamakina atatu?
A2: ndi! DAB7-63H ikupezeka mu 1P, 2P, ndi 3P-yoyenera kuyatsa magawo atatu, HVAC, kapena mabwalo amakina.
Q3: Kodi "zitsulo zokhala ndi siliva pazolumikizana" zimatanthauza chiyani pakuchita?
A3: Imachepetsa kukana kukhudzana, imachepetsa ma arcing panthawi yosintha, komanso imatalikitsa moyo wamagetsi-makamaka m'mabwalo omwe amagwira ntchito pafupipafupi kapena zonyamula katundu.
Q4: Kodi ndingagwiritse ntchito zolumikizira zamtundu wa foloko ndi MCB iyi?
A4: Zoona! Imathandizira ma PIN ndi FORK onse pamzere ndi m'mbali zonyamula - kupangitsa mawaya osinthika, otsika komanso kuthamanga kwa zingwe zazifupi.
Q5: Chifukwa chiyani kusankha CDADA pa ena 10kA MCB zopangidwa?
A5: CDADA imadziwika chifukwa:● Mulingo wowona wa 10kA wokhala ndi ziphaso zonse (osati kungonena)
● Chipinda chapamwamba cha arc (mbale 13) chosokoneza kwambiri
● Zosankha zapawiri sizipezeka kawirikawiri m'kalasili
● -40 ° C mpaka +50 ° C opareshoni-yokulirapo kuposa opikisana nawo ambiri
● Okonzeka OEM: khalidwe losasinthika, kuthandizira kwa Chingerezi, mitengo yambiri
