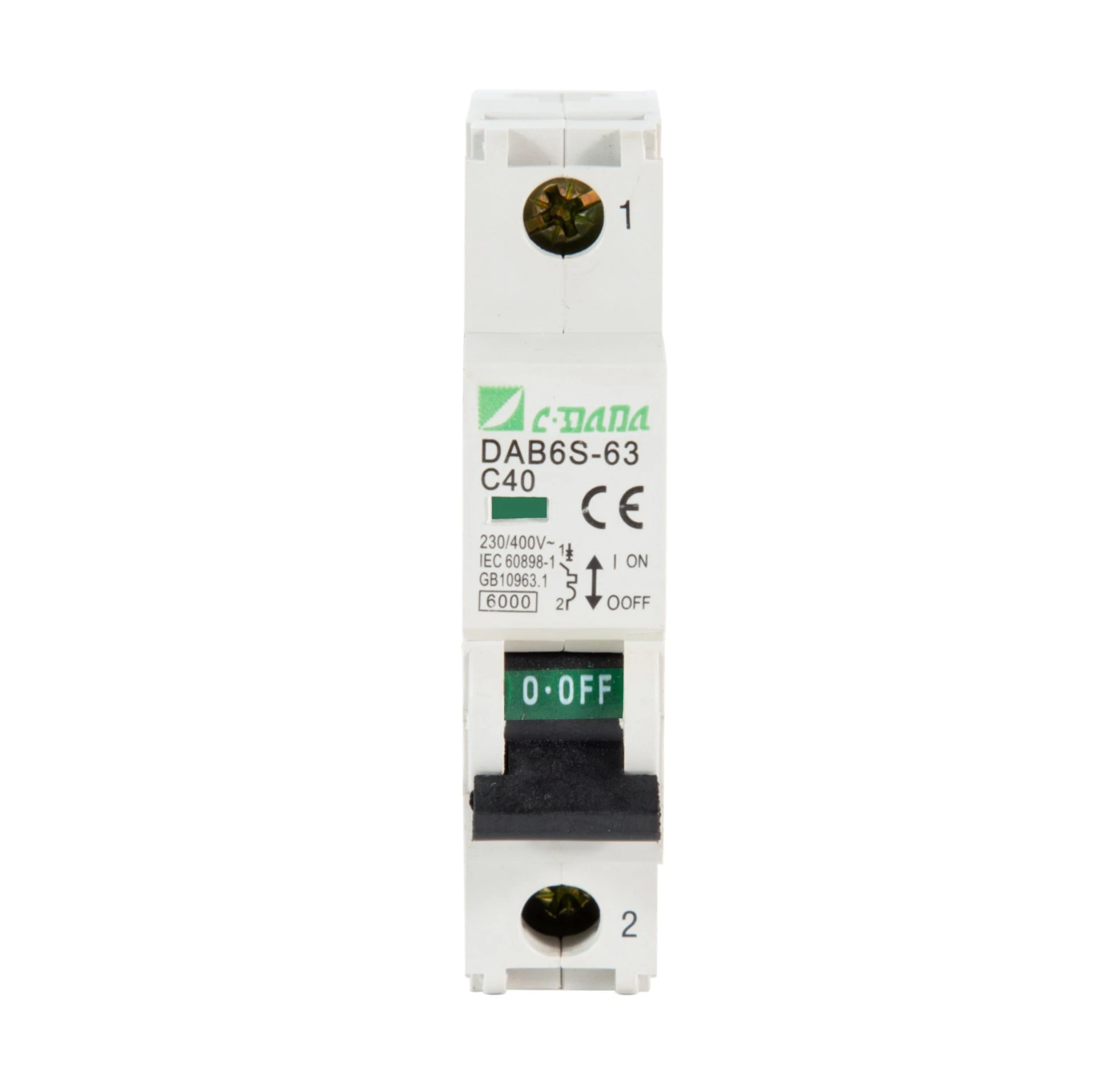

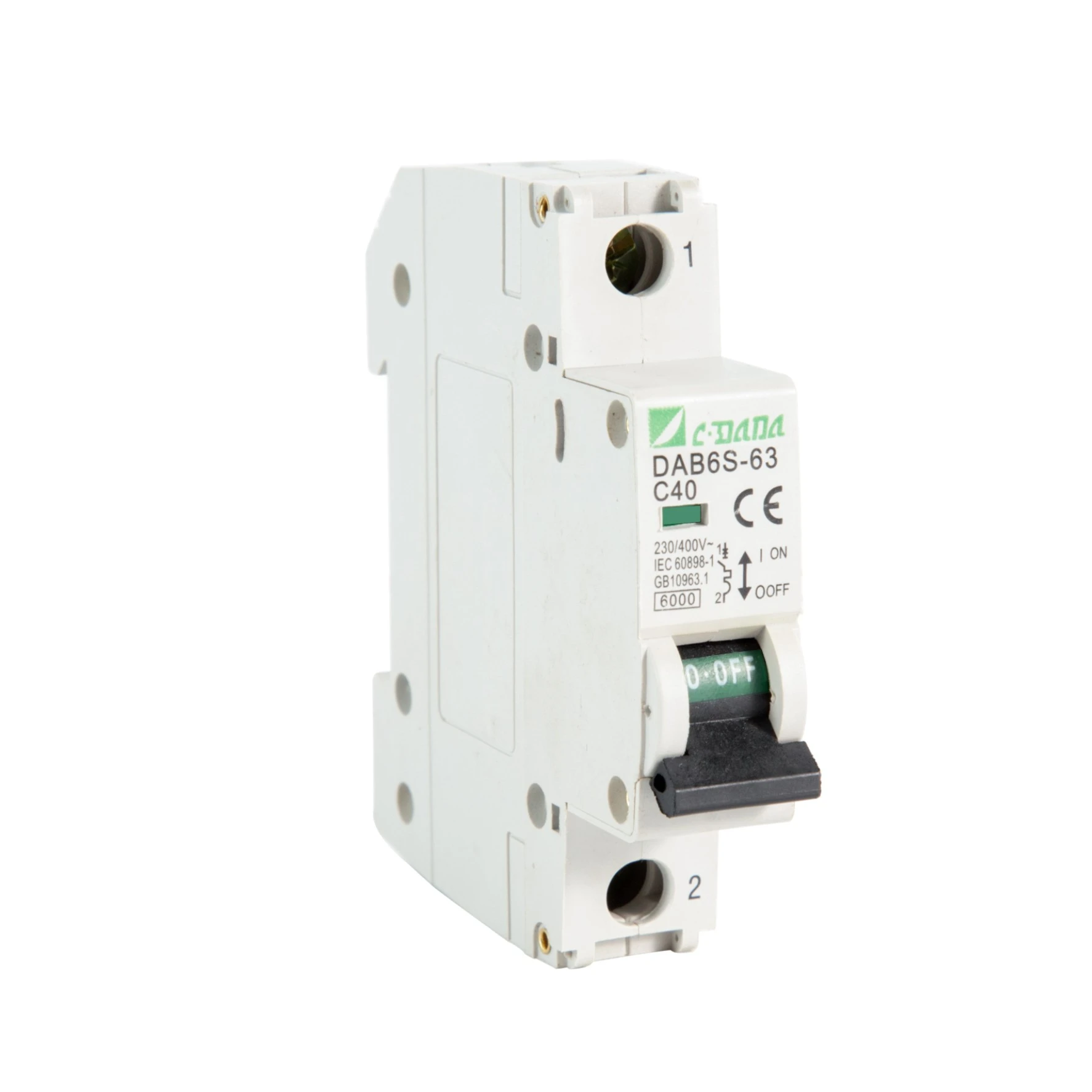

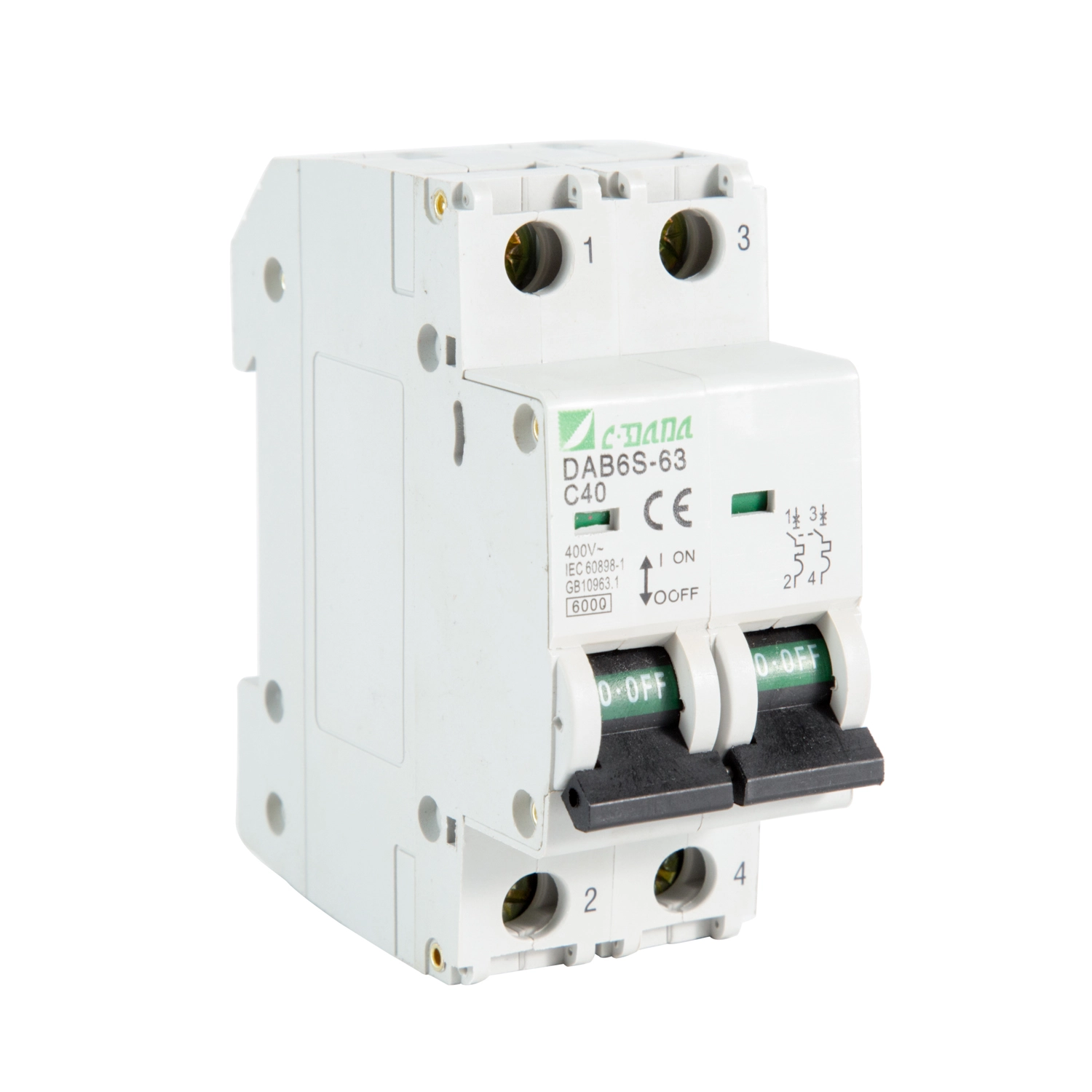

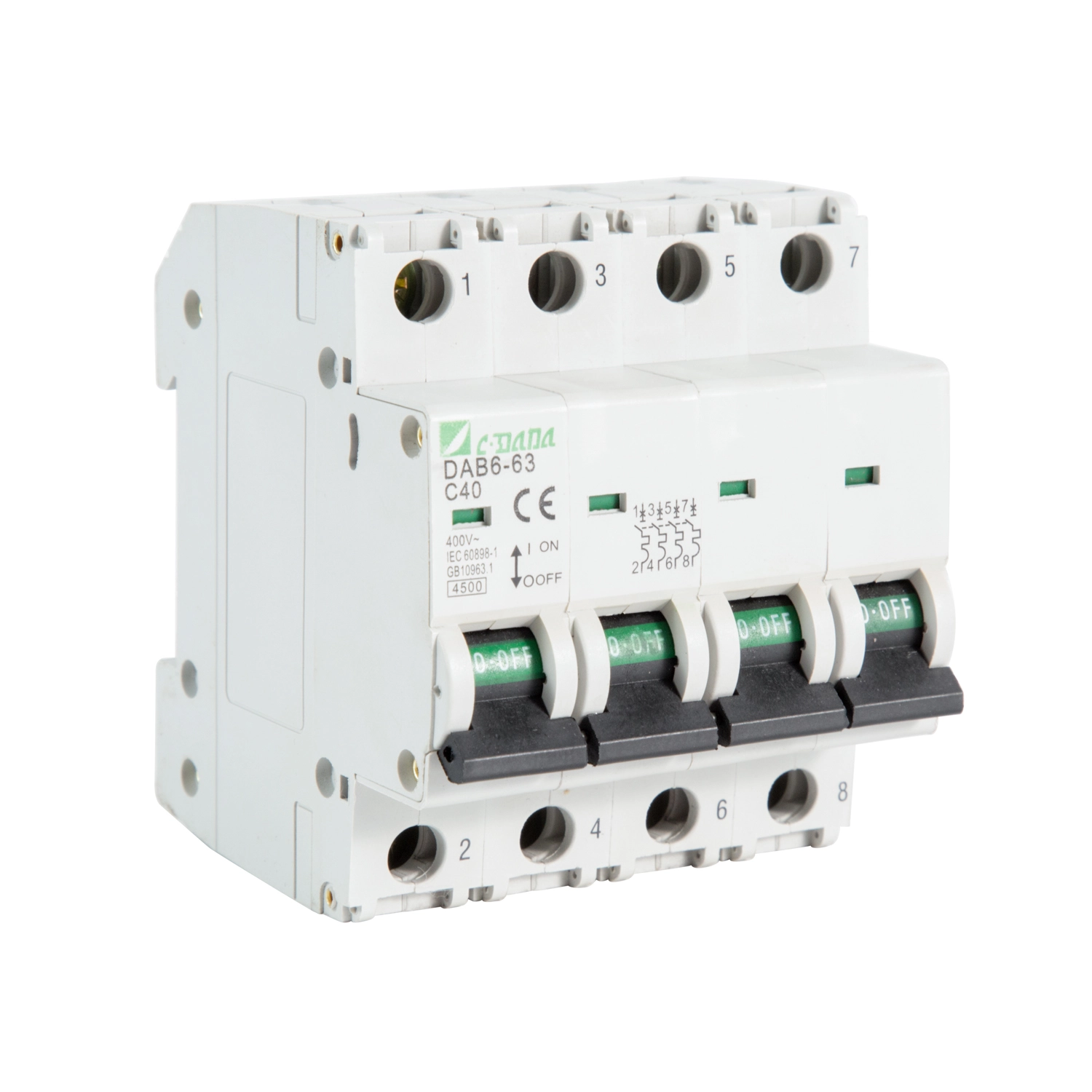

6kA AC Miniature Circuit Breaker
Model:DAB6-63
Gulani 6kA AC Miniature Circuit Breaker (DAB6-63) kuchokera ku Shanghai DADA Electric, ndife opanga odalirika komanso ogulitsa. Chogulitsachi ndi chovomerezeka cha CE & CB, 1P/2P/3P/4P chilipo, chokhala ndi ma curve a B/C/D ogwiritsira ntchito kunyumba & kutsatsa. Kutentha kwakukulu (-40 ° C mpaka + 50 ° C), malo otsika otsika kutentha. Zabwino kwa mapanelo okhala.
Onetsetsani chitetezo chodalirika, chotetezeka, komanso choyenera cha dera m'nyumba ndi nyumba zazing'ono zamalonda ndi CDADA DAB6-63 6kA AC Miniature Circuit Breaker. Zopangidwira mapanelo ogawa nyumba, chowotcha chaching'ono cha 6kAchi chimapereka chitetezo chokwanira komanso chachifupi chotchinga pazambiri zosiyanasiyana - kuchokera pakuwunikira ndi zida zamagetsi (B curve) mpaka ma mota okhala ndi mafunde othamanga kwambiri ngati mapampu ndi ma hoist (D curve).
Ndi ziphaso za CE ndi CB, kapangidwe kolimba, komanso kutentha kwapakati pa -40 ° C mpaka +50 ° C, DAB6-63 imapereka magwiridwe antchito odalirika nyengo iliyonse. Chingwe chake chosinthidwa chimatsimikizira kugwira ntchito motetezeka, pomwe zingwe zotchingira zimachepetsa kutentha ndikukulitsa kukhazikika kwa kulumikizana-kupangitsa kukhala chisankho chanzeru kwa akatswiri amagetsi, omanga, ndi ophatikiza gulu la OEM.
Zofunika Kwambiri

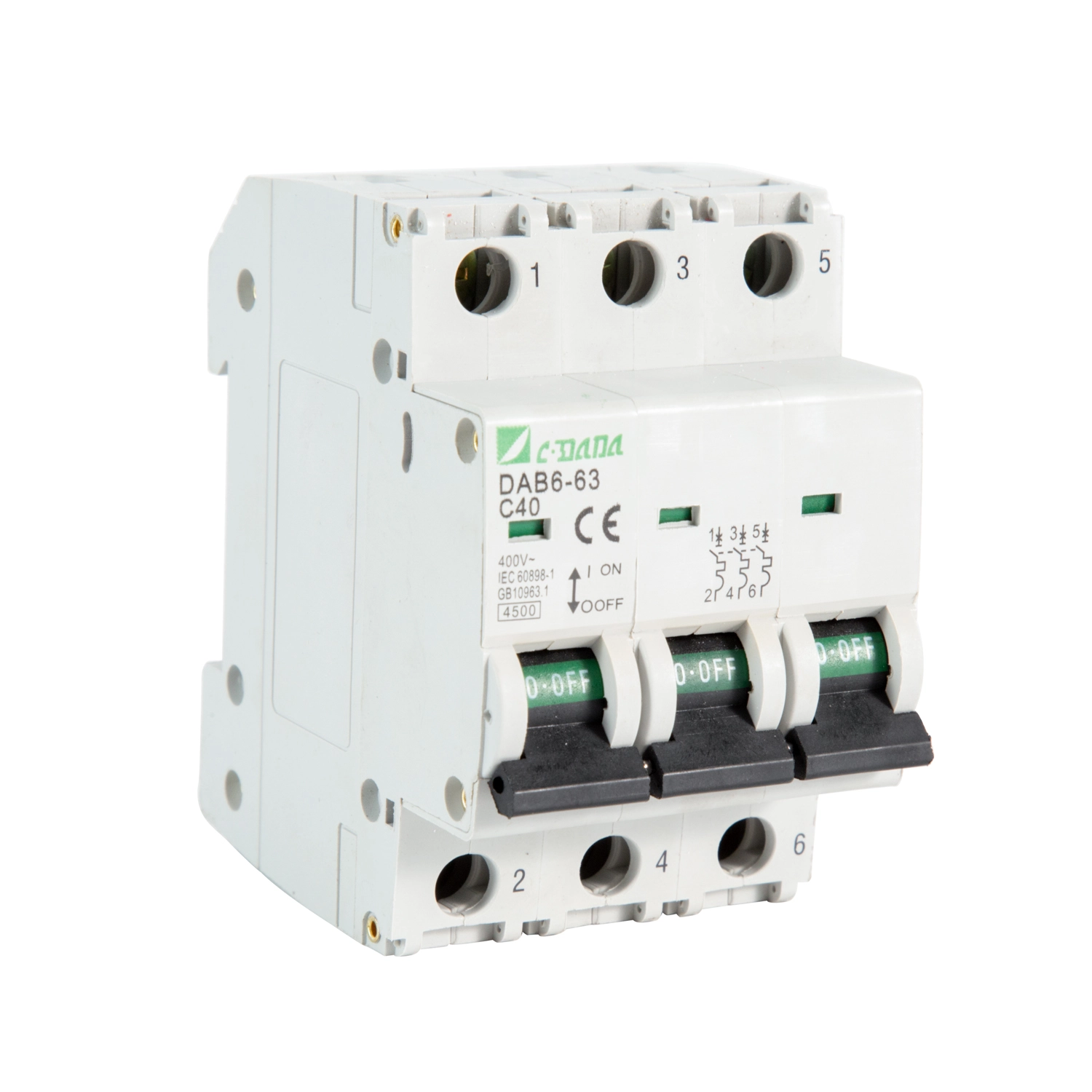

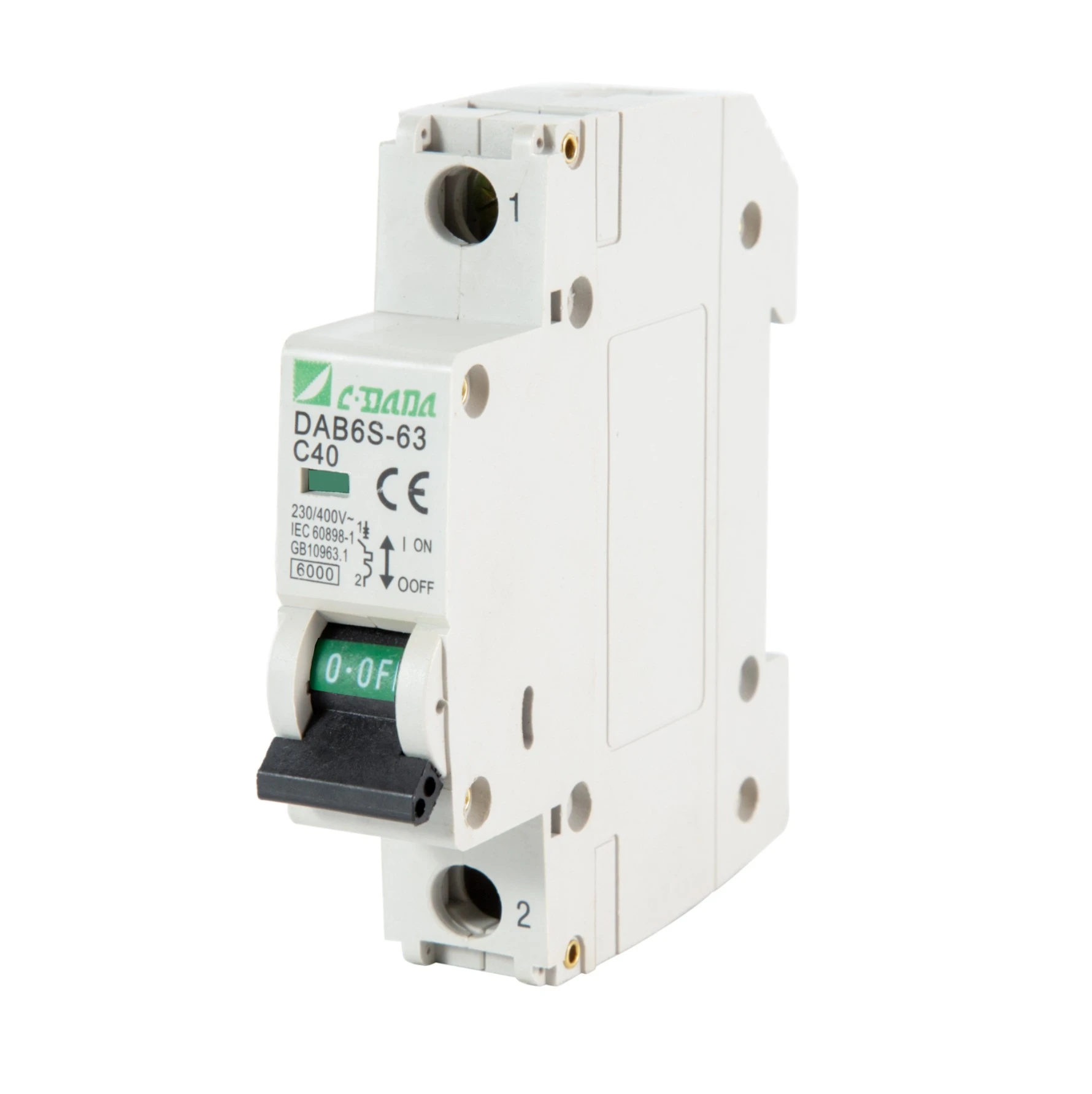

Chitsanzo: DAB6-63 Series
Mtundu: AC Miniature Circuit Breaker (MCB)
Kuphwanya Mphamvu: 6kA @ 230/400V AC
Mitu: 1P, 2P, 3P, 4P
Trip Curves:
B: Zowunikira & zolemetsa (3–5×In)
C: Kwa ma mota acholinga chambiri (5–10×Mu)
D: Pazinthu zolemetsa kwambiri ngati ma compressor / mapampu (10–20×In)
Idavoteredwa Panopa (Mu): 1A - 63A (masitepe okhazikika)
Kutentha kwa Ntchito: -40 ° C mpaka +50 ° C

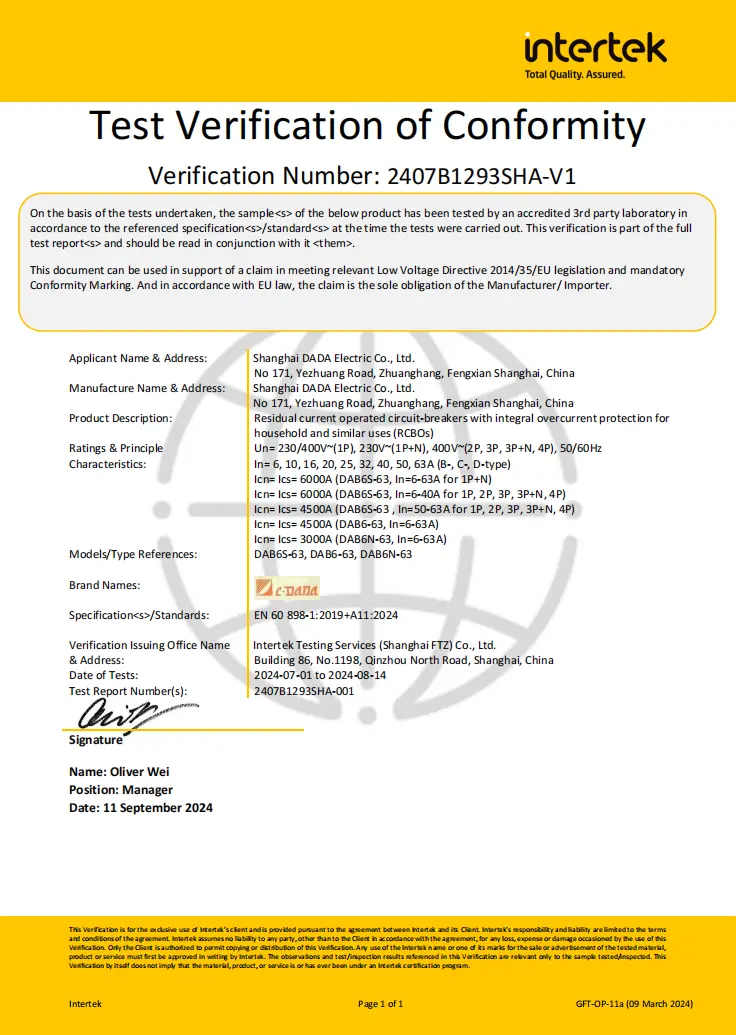

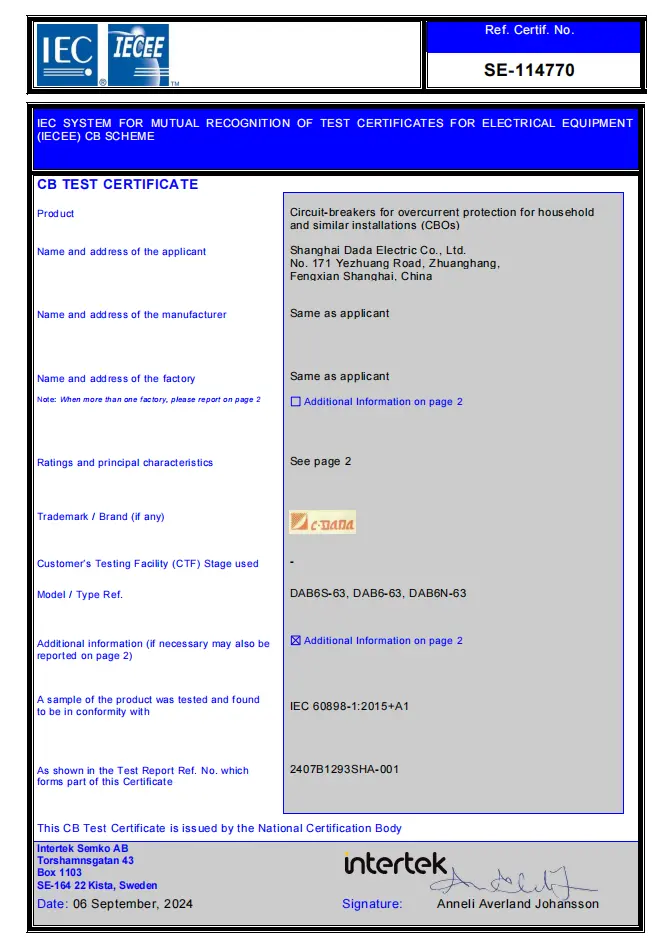

Chitsimikizo: CE, CB
Zofunika Kwambiri:
★ Notched terminal clamps → kutsika kutsika kwamafuta, mphamvu zamakina apamwamba
★ Wider opaleshoni lever → bwino kugwira ndi kukhudzana malo
★ njira zodzitetezera pafupipafupi
★ DIN njanji yokwera (muyezo 35mm)

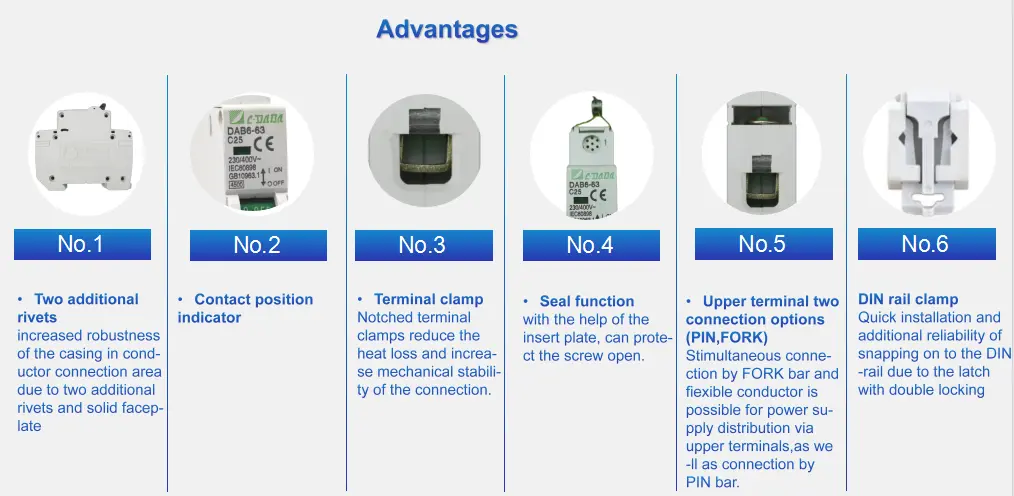

Ubwino wake
Technical Data Sheet
|
MCB DAB6-63 |
||||||
|
Kuteteza kugawa kwamagetsi wamba (IEC/EN 60898-1) |
|
|
|
|
||
|
Mitengo |
1P |
2P |
3P |
4P |
||
|
Kuchita kwamagetsi |
||||||
|
Ntchito |
chitetezo chafupipafupi, chitetezo chodzaza, kudzipatula, kuwongolera |
|||||
|
Kuvoteledwa pafupipafupi f Hz |
50-60Hz |
|||||
|
Mphamvu yamagetsi yogwira ntchito Ue V AC |
230/400 |
400 |
||||
|
Zovoteledwa panopa mu A |
6,10,16,20,25,32,40,50,63 |
|||||
|
Mphamvu yamagetsi ya insulated Ui V |
500 |
|||||
|
Impulse kupirira voteji Uimp kV |
4 |
|||||
|
Nthawi yomweyo ulendo |
Chithunzi cha DAB6-63N |
B/C/D |
||||
|
DAB6-63H |
B/C/D |
|||||
|
Idavotera Short circuit Icn(kA) |
Chithunzi cha DAB6-63N |
4.5 |
||||
|
DAB6-63H |
6 |
|||||
|
Mtundu womasulidwa |
Mtundu wa maginito otentha |
|||||
|
Moyo wothandizira(O~C) |
Zimango |
Mtengo weniweni |
20000 |
|||
|
Mtengo wokhazikika |
4000 |
|||||
|
Zamagetsi |
Mtengo weniweni |
8000 |
||||
|
Mtengo wokhazikika |
4000 |
|||||
|
Kulumikizana ndi kukhazikitsa |
||||||
|
Digiri ya chitetezo |
IP20 |
|||||
|
Waya mm² |
1-35 |
|||||
|
Kutentha kwa ntchito |
-5>+40℃ |
|||||
|
Kukaniza chinyezi ndi kutentha |
Kalasi 2 |
|||||
|
Kutalika pamwamba pa nyanja |
≤2000 |
|||||
|
Chinyezi chachibale |
+20℃,≤90% +40℃,≤50% |
|||||
|
Digiri ya kuipitsa |
2 |
|||||
|
Kuyika chilengedwe |
Pewani kugwedezeka kowonekera ndi kugwedezeka |
|||||
|
Kalasi yoyika |
KalasiⅡ , KalasiⅢ |
|||||
|
Kukwera |
Chithunzi cha DIN35 |
|||||
|
Kuphatikiza ndi Chalk |
||||||
|
Kulumikizana kothandizira |
Inde |
|||||
|
Kulumikizana ndi ma alarm |
Inde |
|||||
|
Shunt kumasulidwa |
Inde |
|||||
|
Kutulutsidwa kwa Undervoltage |
Inde |
|||||
|
Kulumikizana kothandizira+Kulumikizana ndi Alamu |
Inde |
|||||
|
Makulidwe(mm) (WxHxL) |
a |
17.5 |
35 |
52.5 |
70 |
|
|
b |
80.2 |
80.2 |
80.2 |
80.2 |
||
|
c |
76.5 |
76.5 |
76.5 |
76.5 |
||
Chifukwa Chiyani Sankhani CDADA 6kA AC Miniature Circuit Breaker?
★ Chitetezo Chokhazikika Pakatundu Uliwonse
Sankhani njira yokhotakhota yoyenera (B/C/D) kuti ifanane ndi pulogalamu yanu—kupewa maulendo okasokoneza ndikuonetsetsa chitetezo.
|
|
Yesani panopa |
Nthawi yoyenda |
Mapulogalamu |
|
B Chipinda |
3ln 5ln |
0.1 |
Mtundu wa B umagwira ntchito pazowonjezera zomwe zimagwira: -Chotenthetsera chamagetsi-chotenthetsera madzi-Chingwe chamagetsi |
|
C Curve |
5 inu 10ln |
0.1 |
Mtundu C ndi woyenera katundu wamba: -Lampu - Socket yamphamvu -Moto yamagetsi yaying'ono |
|
D Curve |
10ln 20 inu |
0.1 |
Yang'anirani ndi kuteteza mabwalo ndi mawotchi apompopompo (magalimoto akuluakulu) |
★ Zopangidwa Kuti Zikhale Zodalirika M'nyengo Yanyengo Yambiri
Imagwira ntchito bwino kuchokera ku kuzizira kwa Arctic (-40 ° C) mpaka kutentha kotentha (+50 ° C) - yabwino kwa ntchito zapadziko lonse lapansi.
★ Kuchepa Kwa Mphamvu Zochepa, Chitetezo Chapamwamba
Mapampu otetezedwa omwe ali ndi patent amawonjezera kuthamanga kwa kulumikizana, kuchepetsa kukana, kutulutsa kutentha, komanso chiwopsezo chamoto.
★ Mapangidwe Osavuta Ogwiritsa Ntchito
Chingwe chokulirapo chimathandizira magwiridwe antchito apamanja-ofunikira pakagwa mwadzidzidzi kapena kusintha pafupipafupi.
★ Trusted Global Compliance
Chitsimikizo cha CE ndi CB chimatsimikizira kuvomerezedwa ku Europe, Middle East, Africa, ndi Asia-mothandizidwa ndi kuwongolera kwapamwamba kochokera ku Shanghai.
★ Zabwino Kugwiritsa Ntchito Nyumba Zogona & Zopepuka Zamalonda Zocheperako, zotsika mtengo, komanso zosavuta kukhazikitsa—zabwino m'nyumba, maofesi, masukulu, ndi malo ogulitsira.
Ntchito Zofananira
Nyumba: Mabwalo ounikira, ma soketi, zida zakukhitchini
Zipinda & Ma Condos: Ma board ogawa apansi
Maofesi Ang'onoang'ono: HVAC, zida za IT, zizindikiro
Masitolo Ogulitsa: Zowunikira zowonetsera, machitidwe a POS
Makampani Opepuka: Makanema owongolera mafani, mapampu ang'onoang'ono, ma compressor
Mafunso Ofunsidwa Kawirikawiri (FAQ)
Q1: Kodi "6kA" imatanthauza chiyani pa MCB?
A1: Ndiko kusweka kwa kagawo kakang'ono-kulakwitsa kwakukulu (6,000 amps) MCB imatha kusokoneza popanda kuwonongeka. Ndizoyenera kugwiritsa ntchito nyumba zambiri komanso zopepuka zamabizinesi.
Q2: Ndi njira iti yaulendo yomwe ndiyenera kusankha kuti ndikagwiritse ntchito kunyumba?
A2:B curve: Yabwino kwambiri pakuwunikira komanso soketi wamba
C curve: Yovomerezeka pama air conditioners, makina ochapira, kapena ma mota ang'onoang'ono
D curve: Zimangofunika pazida zothamangira kwambiri monga mapampu amadzi kapena zikepe
Q3: Kodi MCB iyi ingagwiritsidwe ntchito panja?
A3: Inde- bola ngati mpanda umapereka chitetezo cha IP. 6kA AC Miniature Circuit Breaker imagwira ntchito modalirika kuyambira -40 ° C mpaka + 50 ° C, ndikupangitsa kuti ikhale yoyenera magalasi, mashedi, kapena mabokosi a mita m'malo ovuta.
Q4: Kodi ma terminals amagwirizana ndi zingwe wamba?
A4: Inde - imavomereza zingwe zamkuwa zolimba kapena zomangika mpaka 25mm², ndipo kapangidwe kachingwe kakang'ono kamatsimikizira kulumikizidwa kotetezeka, kocheperako.
Q5: Chifukwa kusankha CDADA pa zopangidwa ena 6kA MCB?
A5: CDADA imapereka:● Chitsimikizo choona cha CE & CB (osati kungodzinenera)
● Kutentha kwapang'onopang'ono kogwira ntchito kuposa ambiri omwe akupikisana nawo
● Mapangidwe apamwamba a ma terminal kuti azitentha pang'ono komanso moyo wautali
● Chotsani zilembo za B/C/D kuti musankhe mosavuta
● Mitengo yogwirizana ndi OEM yokhala ndi khalidwe losasinthika kuchokera kwa wopanga wovomerezeka waku China
