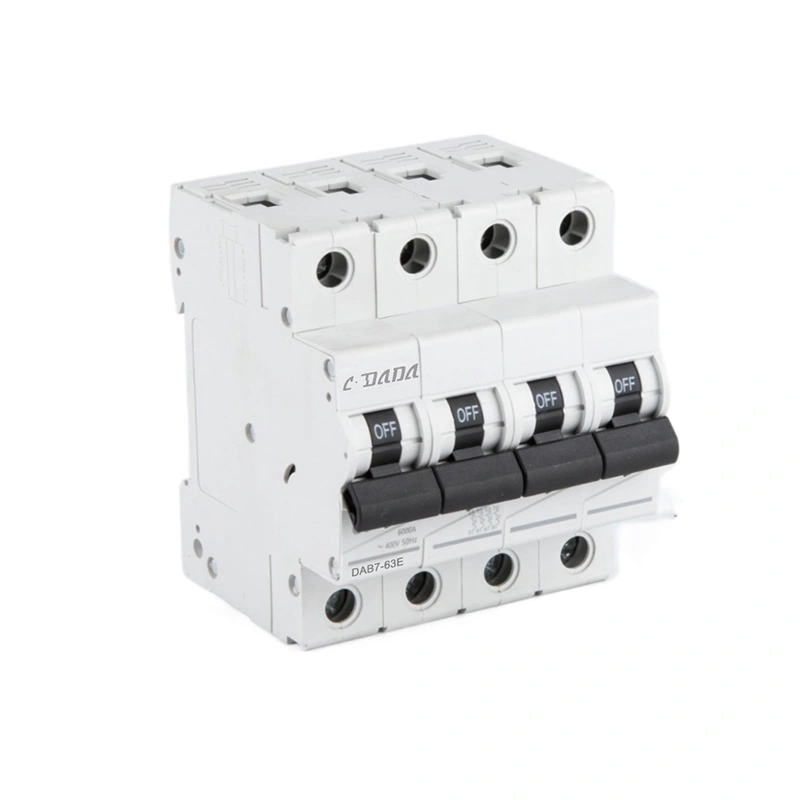

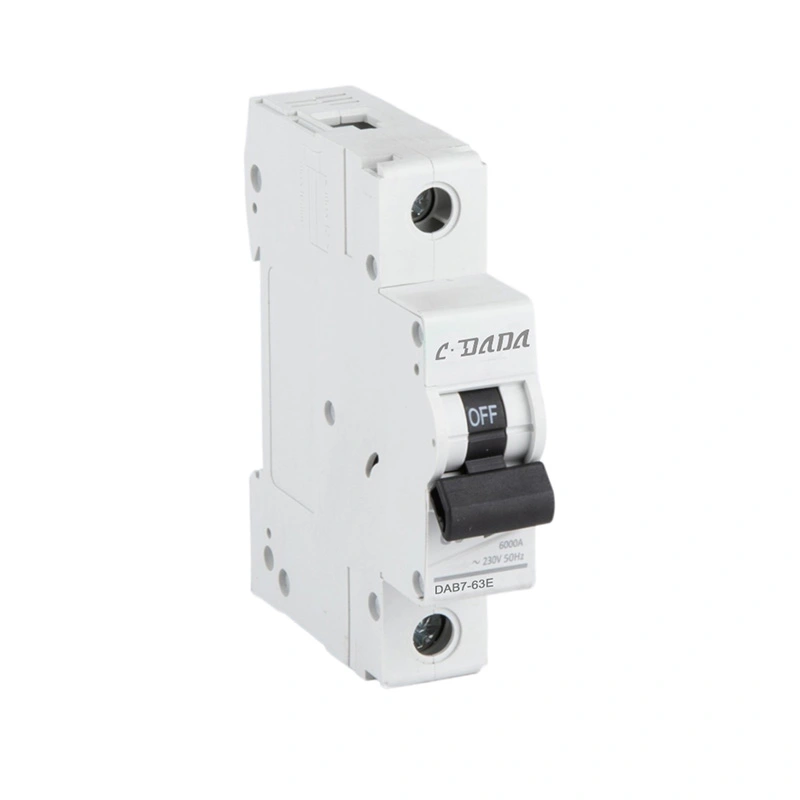

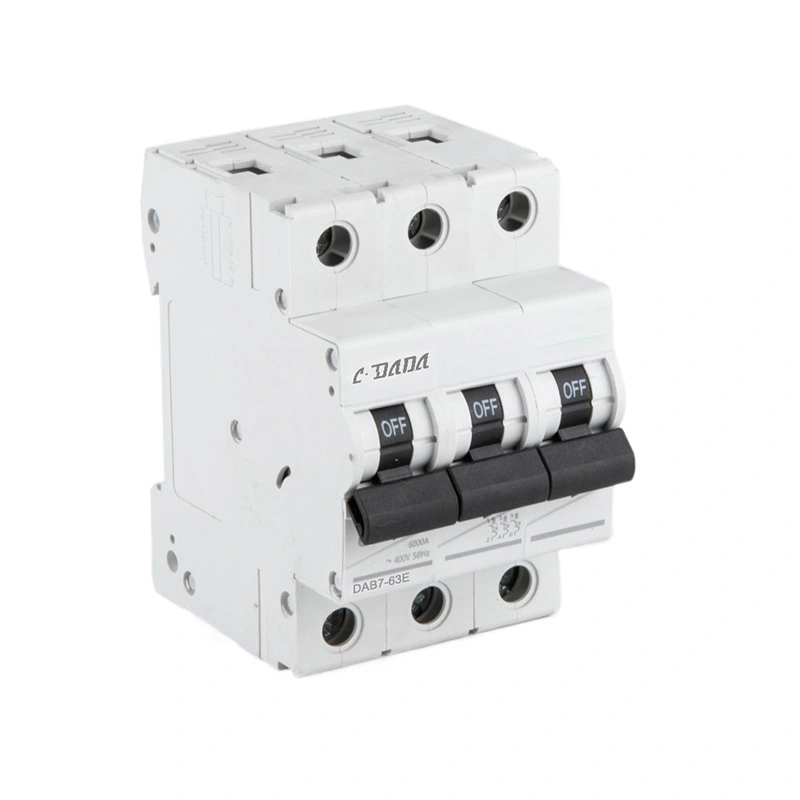

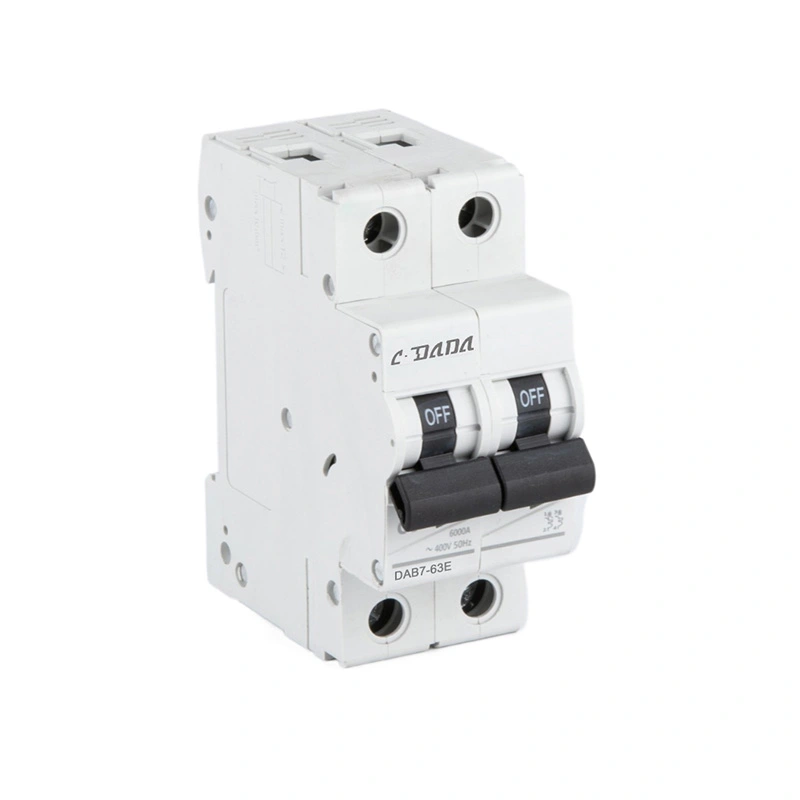

1P 6kA AC Miniature Circuit Breaker
Model:CDADA Series AC MCB
Khalani omasuka kulumikizana ndi CDADA, ndikupeza 1P 6kA AC Miniature Circuit Breaker yathu yokhala ndi mtengo wachindunji wa fakitale, yopereka zochulukira zodalirika komanso chitetezo chozungulira chachifupi ndi kapangidwe ka njanji ya DIN. Chogulitsachi chimakhala ndi kutsika kwamphamvu kwamaginito komanso mawonekedwe omveka bwino, osavuta kuyiyika ndikuwongolera. Imapereka magwiridwe antchito okhazikika pamabwalo okhalamo komanso opepuka amalonda, kuwonetsetsa kuti magetsi ali ndi chitetezo chokhala ndi moyo wautali wautumiki.
CDADA 1P 6kA AC Miniature Circuit Breaker ndi chipangizo chapamwamba chapamwamba cha single-pole miniature breaker chopangidwira makina a AC low-voltage. Amapereka chitetezo chodalirika kuzinthu zambiri ndi maulendo afupiafupi, kuteteza bwino mabwalo amagetsi ndi zipangizo zolumikizidwa. Wopangidwa motsatira miyezo yapadziko lonse lapansi, AC MCB iyi ndiyabwino kwa ogawa, ma OEM ndi makontrakitala amagetsi omwe akufuna njira zotetezera zokhazikika, zotsika mtengo.
Zamalonda & Ubwino wake
★ Compact Design: Mapangidwe opulumutsa malo oyenera matabwa okhazikika ogawa
★ Kuthamanga Kwambiri Kwambiri: Kutha kwa 6kA kusokoneza kwafupipafupi kwa chitetezo chowonjezereka
★ Kuyenda Molondola: Gawo laulendo wotenthetsera-maginito limatsimikizira kuchulukira kolondola & chitetezo chachifupi
★ Chizindikiritso Chowonekera: Zenera lowonekera ON/OFF kuti mutsimikizire mawonekedwe ozungulira mwachangu
★ Mawaya Otetezedwa: Ma terminals apamwamba kwambiri okhala ndi kulumikizana kokhazikika, amachepetsa kukana kulumikizana
★ Kumanga Kwachikhalire: Nyumba zosagwira moto ndi kutentha kwambiri
★ Kuyika Kosavuta: Kukwera njanji ya 35mm DIN-njanji kuti kusonkhana mwachangu
★ Ubwino Wodalirika: 100% kuyang'anitsitsa kwathunthu musanatumize, kugwira ntchito kosasinthasintha
Mapulogalamu
★ CDADA 1P 6kA AC Miniature Circuit Breaker imagwiritsidwa ntchito kwambiri mu:
★ Nyumba zogona, nyumba zogona komanso nyumba zogona
★ Nyumba zamaofesi, malo ogulitsira ndi malonda
★ Malo opangira mafakitale opepuka komanso mafakitale opanga zinthu
★ Malo ogulitsira, mahotela ndi malo odyera
★ Ntchito za boma ndi zomangamanga
★ Mabwalo owunikira ndi chitetezo cha zida zazing'ono zamagetsi
Technical Parameters
|
Kanthu |
Kufotokozera |
|
Chitsanzo |
CDADA Series AC MCB |
|
Standard |
IEC60898 |
|
Mtundu |
AC MCB (Miniature Circuit Breaker) |
|
Mitengo |
1P, 2P, 3P, 4P |
|
Kuphwanya Mphamvu |
6kA pa |
|
Adavoteledwa Panopa |
1A, 2A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A |
|
Tripping Curve |
B, C, D (posankha) |
|
Adavotera Voltage |
AC 230V, 400V |
|
Insulation Voltage |
600V |
|
Mphamvu ya Voltage |
6kv ku |
|
Digiri ya Chitetezo |
IP20 |
|
Kuyika |
35mm DIN Rail |
|
Kutentha kwa Ntchito |
-5 ℃ ~ +40 ℃ |
|
Moyo Wamakina |
≥20,000 ntchito |
|
Moyo Wamagetsi |
≥4,000 ntchito (panthawi yake) |
|
Kutsata Miyezo |
IEC60898-1, IEC60898-2 |
Miyeso Yaumboni
★ M'lifupi: 17.8mm pa mtengo (muyezo wa mtengo umodzi kukula)
★ Kutalika: Pafupifupi 85-92mm (amasiyana malinga ndi mawerengedwe apano)
★ Kuzama: Pafupifupi 68-72mm
★ Kutha Kwa Wiring: 1.5-16mm² chingwe chosinthika kapena cholimba chamkuwa
★ Kuyanjanitsidwa Kwanthawi Zonse: Imagwirizana ndi masitima onse a 35mm DIN njanji (TS35/7.5, TS35/15)
IEC 60898-1
Kutulutsidwa kwa Magnetic

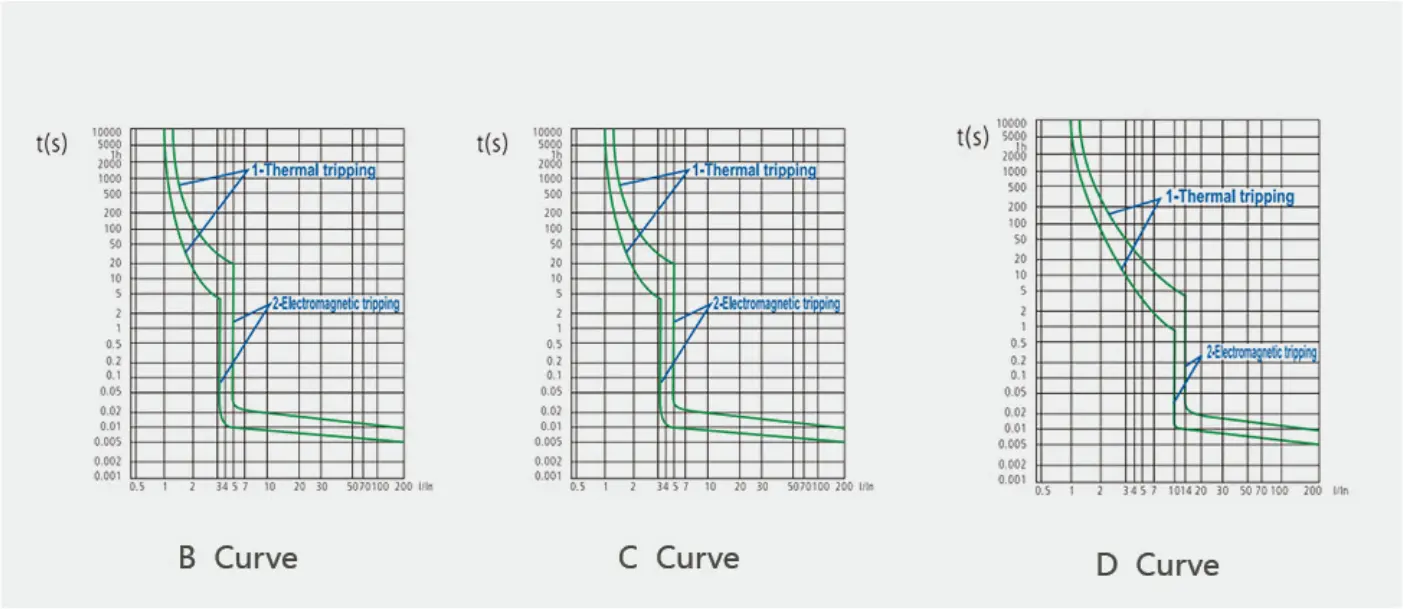

Dongosolo lalifupi likachitika, kudumpha nthawi yomweyo kumatheka ndi maginito okhala ndi pakati pachitsulo. Malinga ndi muyezo wa 1EC60898, mankhwalawa amatha kugawidwa m'mitundu itatu: B, C, ndi D.
|
|
Yesani panopa |
Nthawi yoyenda |
Mapulogalamu |
|
B Chipinda |
3ln 5ln |
0.1 |
Mtundu wa B umagwira ntchito pazowonjezera zomwe zimagwira: -Chotenthetsera chamagetsi-chotenthetsera madzi-Chingwe chamagetsi |
|
C Curve |
5 inu 10ln |
0.1 |
Mtundu C ndi woyenera katundu wamba: -Lampu - Socket yamphamvu -Moto yamagetsi yaying'ono |
|
D Curve |
10ln 20 inu |
0.1 |
Yang'anirani ndi kuteteza mabwalo ndi mawotchi apompopompo (magalimoto akuluakulu) |
Kutulutsidwa kwa Thermal
● Kuchulukirachulukira kukachitika m'derali, mzere wa bimetallic wa woyendetsa dera umapindika chifukwa cha kutentha, zomwe zimapangitsa kuti olumikizanawo azitha kulumikizidwa ndikupangitsa kuti kutentha kuzitha;
● Muyezo wa IEC umatanthawuza nthawi yodutsa maulendo osiyanasiyana olemetsa;
●Kutentha kwa malo oyeserera ndi 30 °C.
|
Yesani panopa |
Nthawi yoyenda |
|
1.13n |
t z 1h(mu ≦ 63A) |
|
1.45l |
t<1h(Mu ≦ 63A) |
|
2.55l |
1s<1h<60s(Mu≤32A)1s |

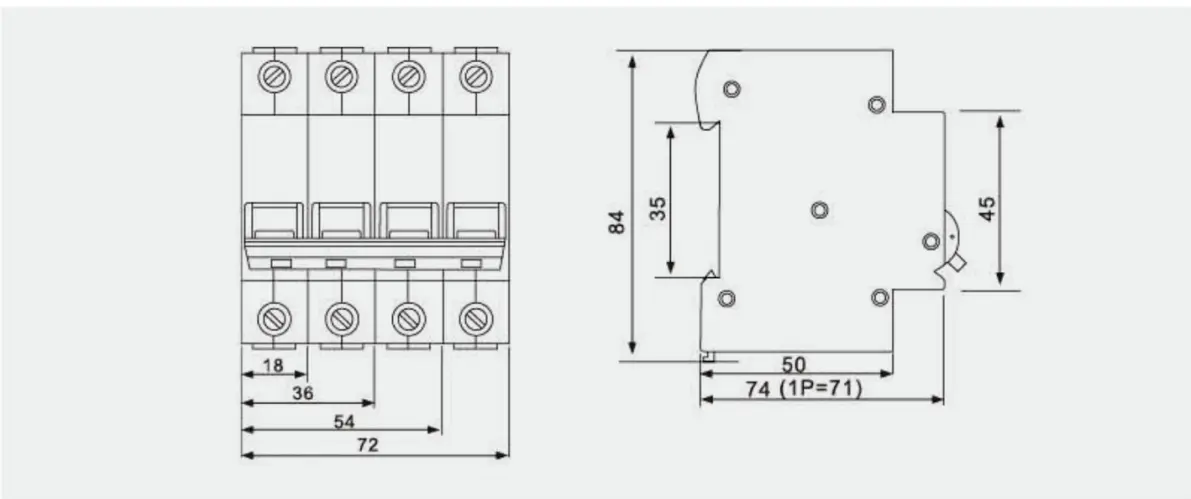

● Kukula kwazinthu ndi kukhazikitsa (MM)
Zogulitsazo zimayikidwa pa njanji yowongolera yomwe imatha kulumikizana kwambiri ndi 25mm2.
Kuwongolera Kwabwino
★ ISO9001 Certified Manufacturing: Okhwima dongosolo kasamalidwe khalidwe pakupanga
★ Kuyesa Kwathunthu: Kuwunika kwa 100% kuphatikiza mikhalidwe yodumphadumpha, kukwera kwa kutentha ndi mayeso amagetsi
★ Kupanga M'nyumba: 90% ya zigawo zikuluzikulu zomwe zimapangidwa mkati kuti zigwirizane bwino
★ Kuyesa Kwachilengedwe: Kugwira ntchito kwapamwamba / kutsika kwa kutentha, kutsimikizira kukana kwa chinyezi
★ Chitsimikizo Chodalirika: Kuyesa kwanthawi yayitali kwa moyo wautali wautumiki
Kupaka & Kutumiza
★ Standard Export Packaging: Makatoni okhala ndi malata okhala ndi chitetezo
★ Zolemba Zomveka: Nambala yachitsanzo, mlingo wamakono, chiwerengero cha ma pole, kuchuluka ndi chidziwitso cha certification
★ Kupaka Kuteteza: Bokosi lamagulu la magawo 12 kuti mupewe kuwonongeka panthawi yodutsa
★ Zosankha Zotumiza: Zoyenera kuyenda panyanja, mpweya ndi pamtunda; zilipo zotumizidwa zambiri
★ Kupaka Mwamakonda: Zosankha zapaketi za OEM zopezeka kwa omwe amagwirizana nawo
Makasitomala Kupambana Milandu
★ CDADA 1P 6kA AC Miniature Circuit Breaker yakhazikitsa mgwirizano wanthawi yayitali ndi makasitomala padziko lonse lapansi:
★ Ntchito Zomanga Nyumba: Zoperekedwa kwa omanga nyumba ku Southeast Asia, Middle East ndi South America
★ Kuyika Zamalonda: Kugwirizana ndi makontrakitala amagetsi ku Europe, Africa ndi Asia pantchito zomanga zamalonda
★ Mgwirizano wa OEM: Wogwirizana ndi mitundu yamagetsi yapadziko lonse lapansi polemba zilembo zachinsinsi ndi mayankho osinthidwa makonda
★ Ntchito Zamakampani: Zoperekedwa kumalo opangira makina ndi zida zoteteza
★ Distributor Networks: Kugwira ntchito ndi ogulitsa zigawo m'maiko opitilira 30 kuti mukwaniritse msika wakumaloko
