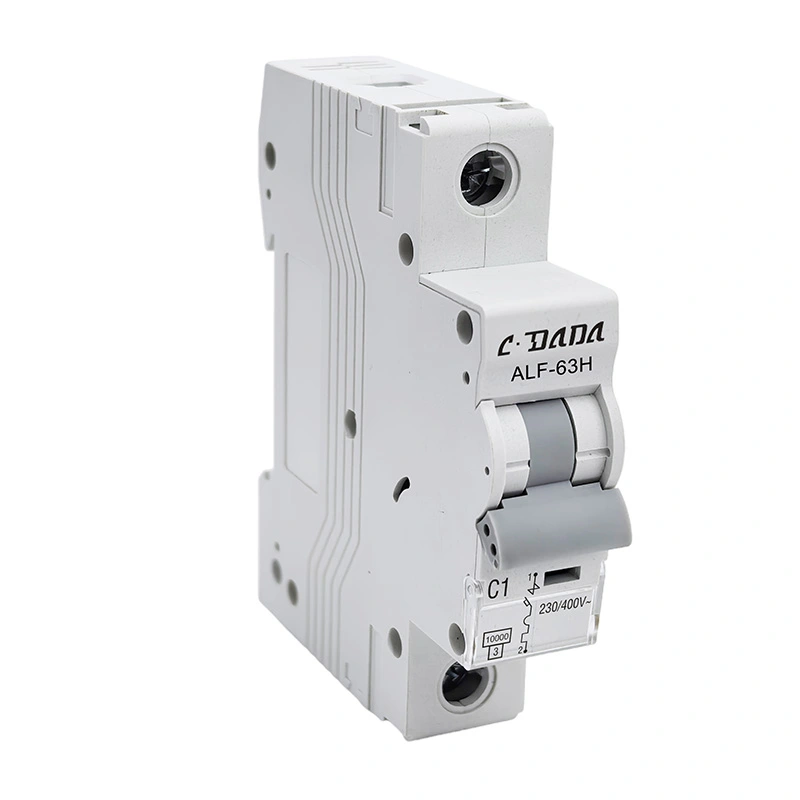

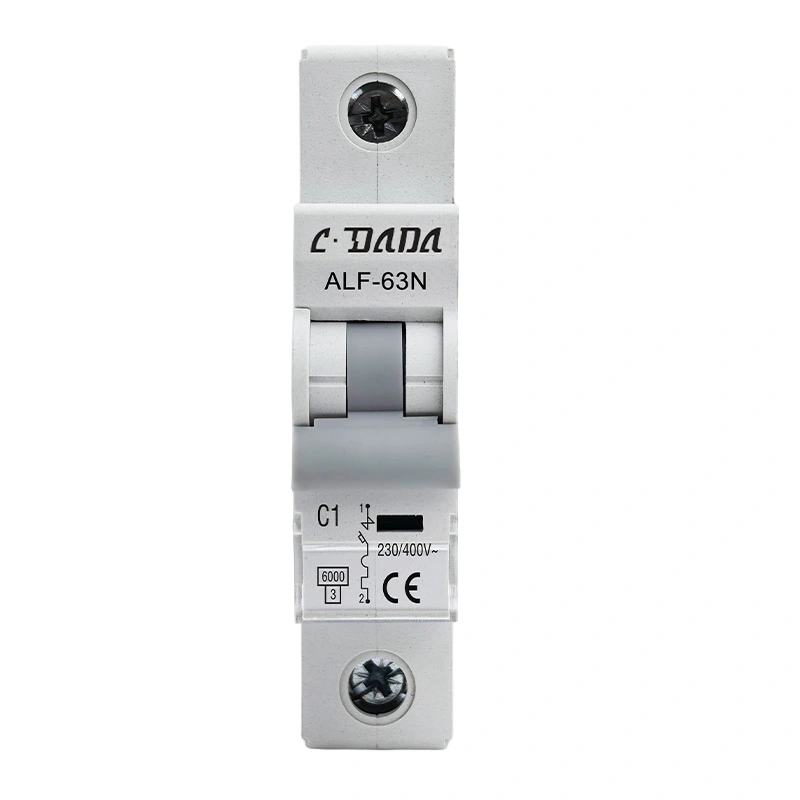

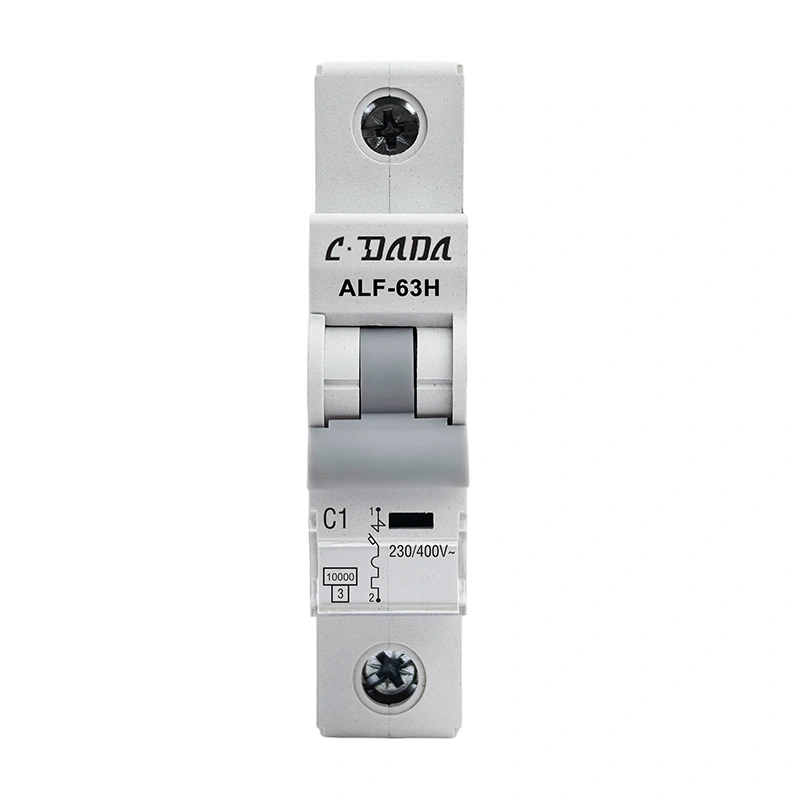

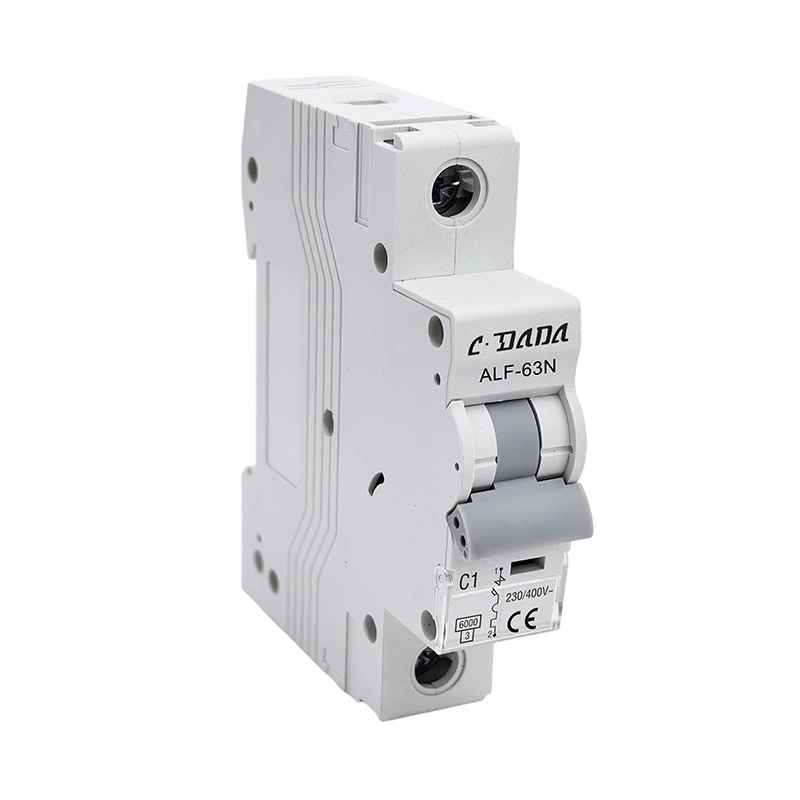

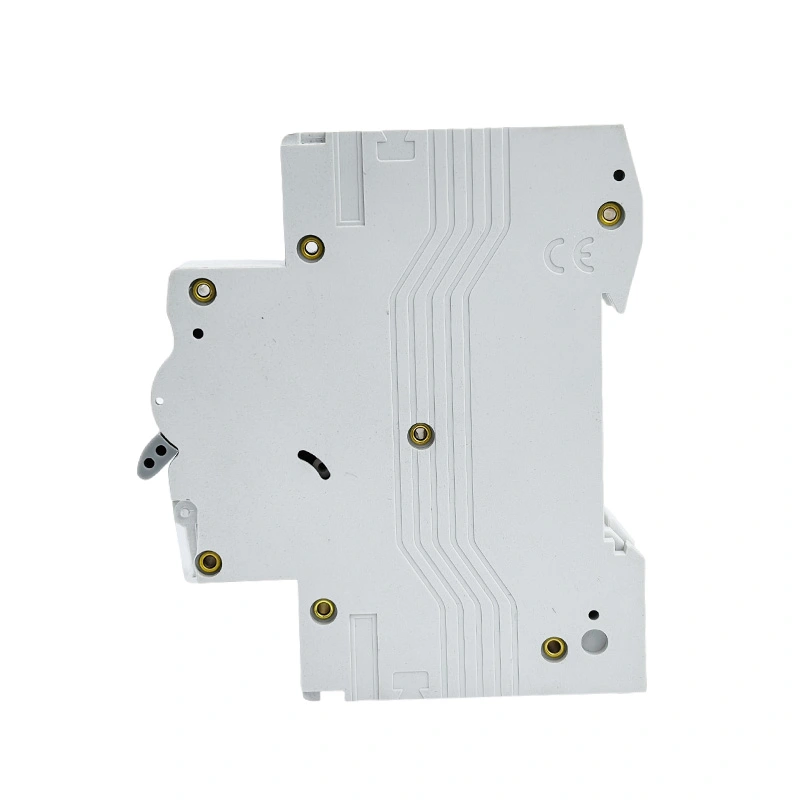

6KA 10kA Miniature Circuit Breaker

Mndandanda wa ALF-63N/H wosweka kwambiri 6KA 10kA Miniature Circuit Breaker (MCB), umagwirizana ndi muyezo wa IEC60898, MCB ili ndi mawonekedwe odalirika, ntchito zodzitetezera, nthawi yochepa yotulutsa, komanso mphamvu yopuma, voliyumu yaying'ono. Amagwiritsidwa ntchito kwambiri ndikudzaza ma contactor, switchgear, ndi zida zamagetsi.

Lumikizanani ndi CDADA ndikusankha ife monga wopanga wanu, titha kupereka ntchito za OEM/ODM.

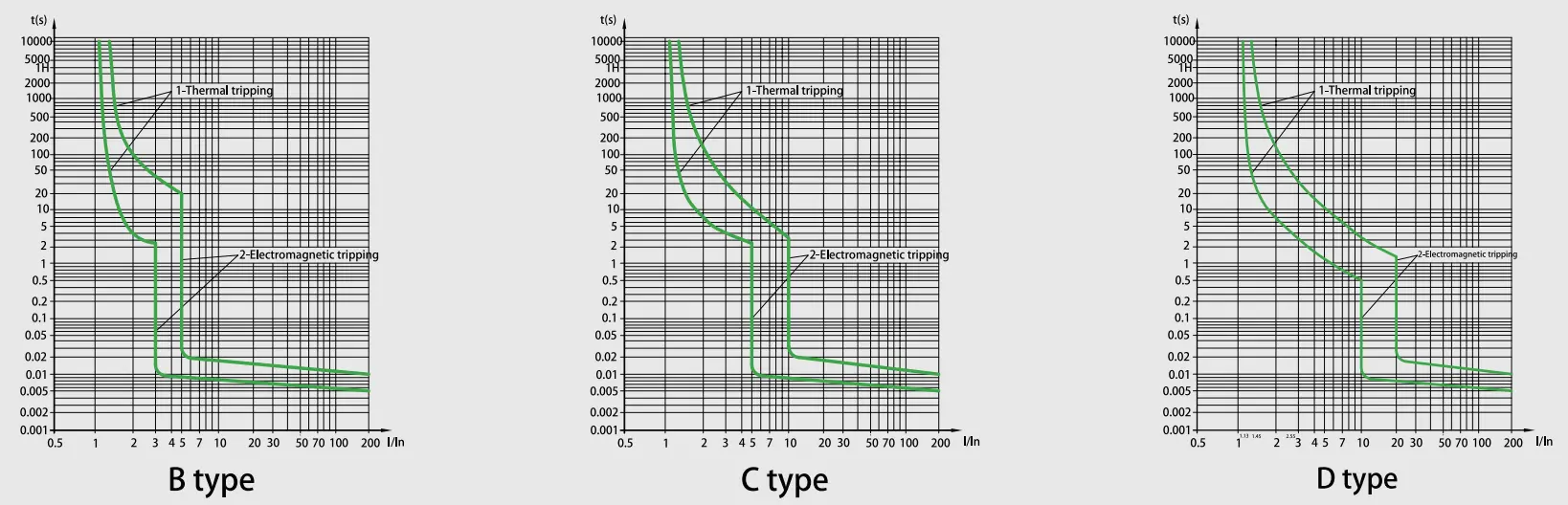

Khalidwe Curve

Kufotokozera zaukadaulo

ALF-63N/H Series 6KA 10kA Miniature Circuit Breaker
Standard	EN/IEC60898-1
Kuphwanya mphamvu (kA)	6, 10
Chitetezo	Kulimbana ndi kuchulukana komanso kuzungulira kwafupipafupi
Zovoteledwa panopa(A)Mu	1,2,3,4,6,10,13,16,20,25,32,40,50,63
Mphamvu yamagetsi (V)	1PAC 230/400,240/415
	1P+N,2P,3P,3P+N,4PAC400/415
Mphamvu yolimbana ndi mphamvu yamagetsi ya Uimp(kV)	4
Adavotera voteji ya Ui (V)	500
Mphamvu yochepetsa mphamvu	3
Kutentha kozungulira (℃)	-25 ~ +40, Max.95% chinyezi
Malire ogwiritsira ntchito kutentha	1.13xln Palibe kuyenda mkati mwa ola limodzi
	1.45xIn Kuyenda mkati mwa ola limodzi
Maginito ntchito	B:(3-5)xIn,C:(5-10)xIn,D:(10-20)xIn
Chiwerengero cha mitengo	1P,1P+N,2P,3P,3P+N ndi 4P
Mtundu waulendo	Kutulutsa kwamafuta / maginito
Mphamvu yokwerera	16mm² kusinthasintha kapena 25mm² okhazikika mpaka 25A mavoti
	25mm² kusinthasintha kapena 35mm² olimba kuchokera ku 32A mpaka 63A mavoti
Digiri ya chitetezo	IP20
Kuyika	Kukwera pa 35mm DIN njanji
M'lifupi	17.8mm pa mtengo

Circuit breaker kumasulidwa khalidwe

AYI.	Chiyembekezero chaposachedwa (A)	Dziko loyamba	Yesani panopa	Nthawi yotchulidwa	Zotsatira zingapezeke	Ndemanga
1	1-63	kuzizira	1.13 ku	t≤1h	Osayenda
2	1-63	pa mayeso am'mbuyomu	1.45l	ndi <1h	ulendo	Kukhazikitsa zomwe zilipo pamtengo wotchulidwa pafupipafupi mu 5s
3	Pa≤32	kuzizira	2.55 ku	1s	ulendo
	mu> 32
4	1-63	kuzizira	3 inu	t≤0.1s	Osayenda	B mtundu
			5 inu	t <0.1s	ulendo	B mtundu
			5 pa 10ln	t≤0.1s	Osayenda	C mtundu
			10 inu	t <0.1s	ulendo	C mtundu
			20ln	t≤0.1s	Osayenda	D mtundu
				t <0.1s	ulendo	D mtundu

Kupirira (Ntchito)

Gulu	Operation Cycles	Nthawi zambiri ntchito	Zovoteledwa panopa
Kupirira kwamagetsi	4000	240/h	1-32
		120/h	40-63
Kupirira kwamakina	10000	240/h	1-63

Mawonekedwe

★ Ultra-High Short-Circuit Breaking Capacity

Ukadaulo wotsogola wa arc umakwaniritsa kusokoneza kwakukulu poyerekeza ndi miyezo yamakampani, kuonetsetsa chitetezo chodalirika pamakina amagetsi amtundu wa mafakitale pansi pazovuta kwambiri.

★ Chiyankhulo Cholumikizira Mawonekedwe Awiri

Mapangidwe ophatikizika a hybrid terminal amathandizira kuyika mabasi olimba komanso kuwongolera kwa chingwe, kumathandizira kusinthika kopanda zida kumitundu yosiyanasiyana yakuyika ndikuchepetsa nthawi yolumikizira ndi 40%.

★ Njira Yosungira Mphamvu-Njira ya Moyo Wautali

Makina ogwiritsira ntchito opangidwa ndi masika okhala ndi 10,000 makina opirira, okhala ndi ukadaulo wolipira

★ Mpanda Wapamwamba Wophatikiza

zokhala ndi zipinda zoziziritsa kukhosi, zosagwira kutentha, komanso zosagwira ntchito mopanda mantha zophatikizira zipinda zoziziritsa kukhosi zomwe zili ndi zolakwika.

★ Dynamic Current-Limiting Topology

Kugwiritsa ntchito mphamvu mwanzeru kumachepetsa mafunde amphamvu kwambiri ndi 65-80%, ndikupangitsa kukhathamiritsa kwazomwe zidatsitsidwa ndi 30% kuthekera kochepetsera mtengo wadongosolo lonse.

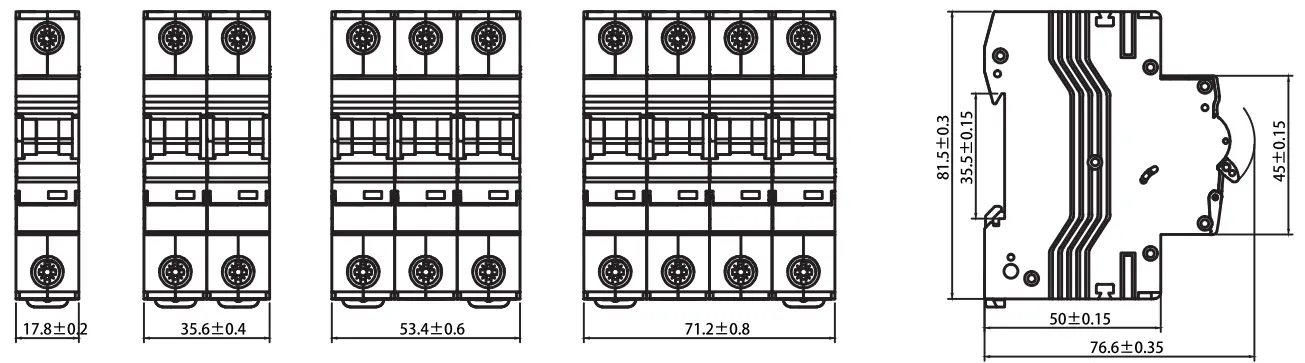

Lembani miyeso

Zochitika za Ntchito

★ Malo okhala: Mayunitsi ogula ndi matabwa ogawira chitetezo chapakhomo.

★ Industrial: Chitetezo cha ma contactor, switchgear, ndi zida zamagetsi zolemera.

★ Zamalonda: Nyumba zamaofesi ndi malo ogulitsira omwe amafuna kudalirika kwambiri.

Quality Control & Standard Testing

★ CDADA MCB iliyonse imayesedwa mwamphamvu kuti iwonetsetse kuti ikutsatira IEC60898-1:

★ Kuyesa Kwapaulendo Kotentha: Kutsimikiziridwa pa 1.13In (osayenda) ndi 1.45In (ulendo mkati mwa ola limodzi).

★ Magnetic Tripping Test: Kuyesa kutulutsa kolondola kwa mawonekedwe a B, C, ndi D.

★ Kupirira Kwamagetsi: Kuyesedwa kwa ma 4,000 ozungulira.

★ Kupirira Kwamakina: Kutsimikiziridwa pamizere 10,000.

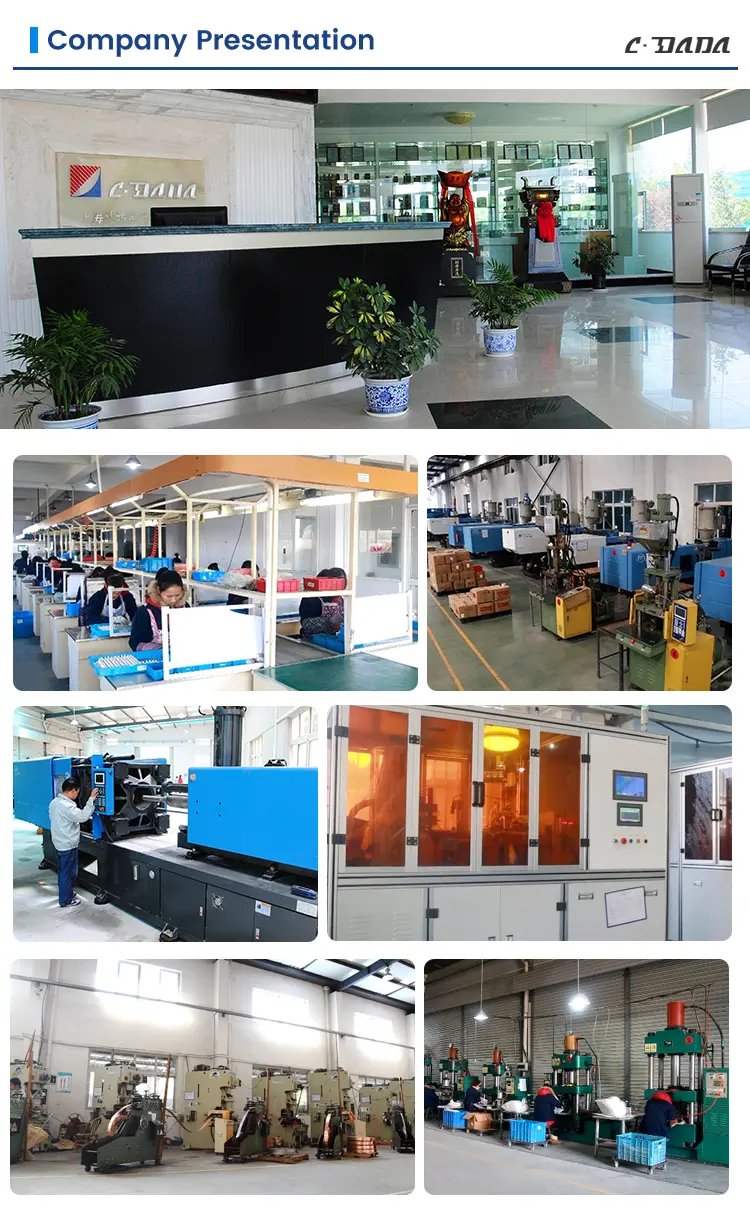

Mphamvu ya Fakitale & Thandizo

Shanghai DADA Electric Co., Ltd. ndiwopanga otsogola okhala ndi mizere yapamwamba yopanga komanso gulu laukadaulo laukadaulo. Timapereka:

★ makonda ntchito za OEM/ODM zamitundu yapadziko lonse lapansi.

★ Zida zoyesera zamakono kuti zitsimikizire kuti palibe vuto lililonse.

★ Global Logistics Support: Kukonzekera bwino kwa katundu wapanyanja ndi mpweya kuti zinthu zifike bwino.
