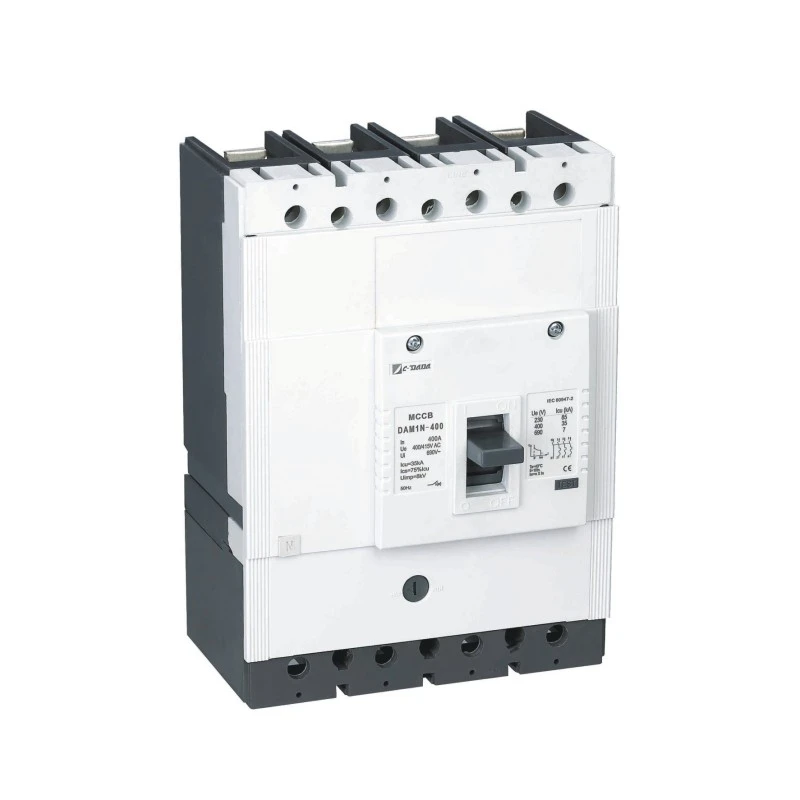

Mtundu Wokhazikika Wowumbidwa Mlandu Wophwanyika
Model:DAM1 Series
Gwero lapamwamba komanso lotsogola la Mtundu Wokhazikika Wopukutira Wozungulira (MCCB) wochokera ku Shanghai DADA Electric-certified (CE, CB, ASTA), chitetezo cha maginito, 12.5A-1600A. Zabwino kwa mapanelo amakampani & azamalonda. Easy DIN-njanji kapena gulu phiri. OEM & malamulo chochuluka olandiridwa, kusankha CDADA monga katundu wanu molimba mtima.

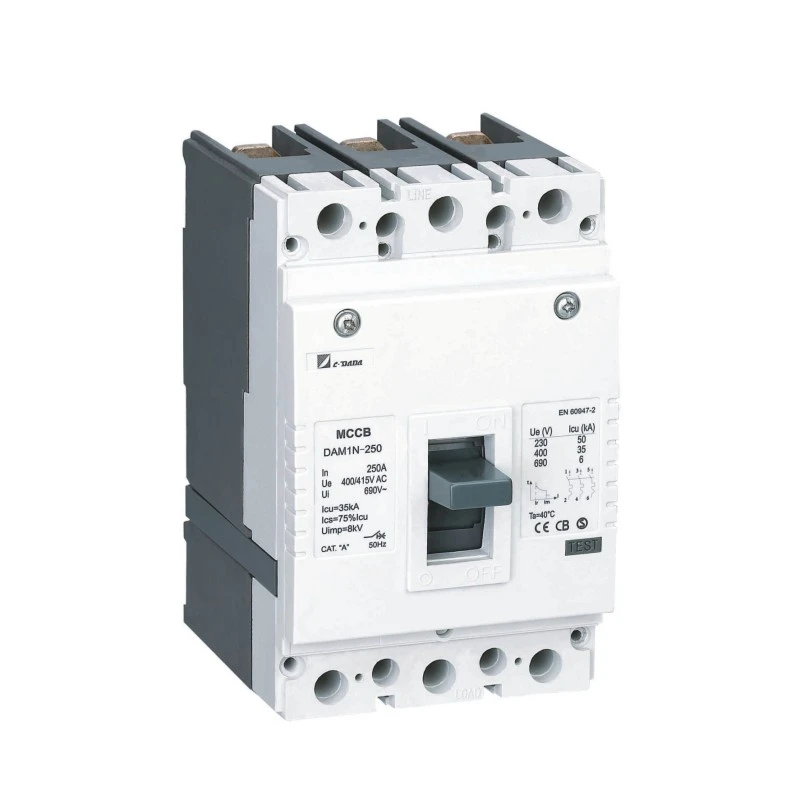

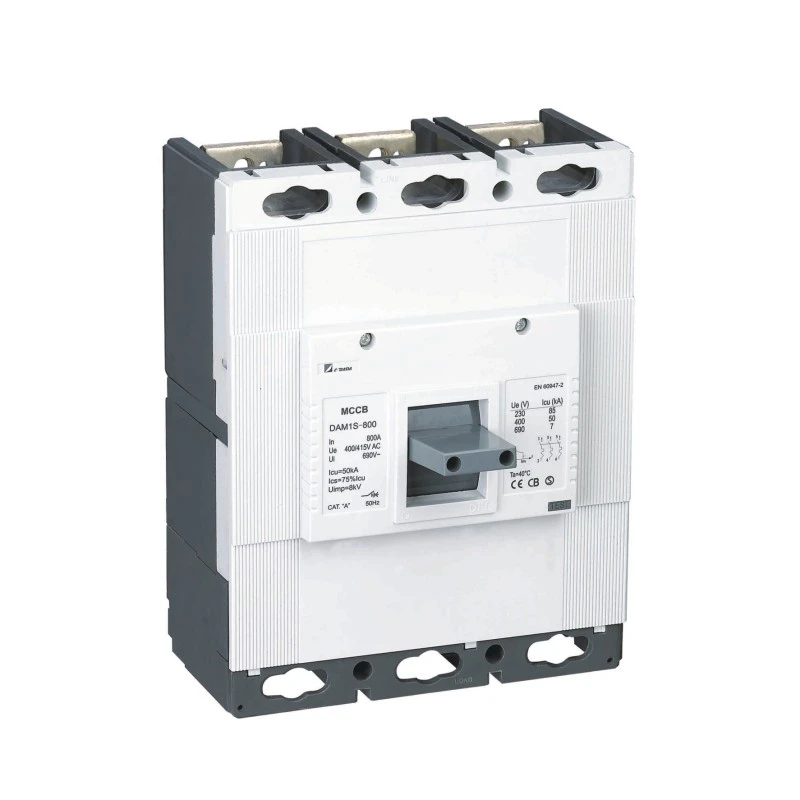

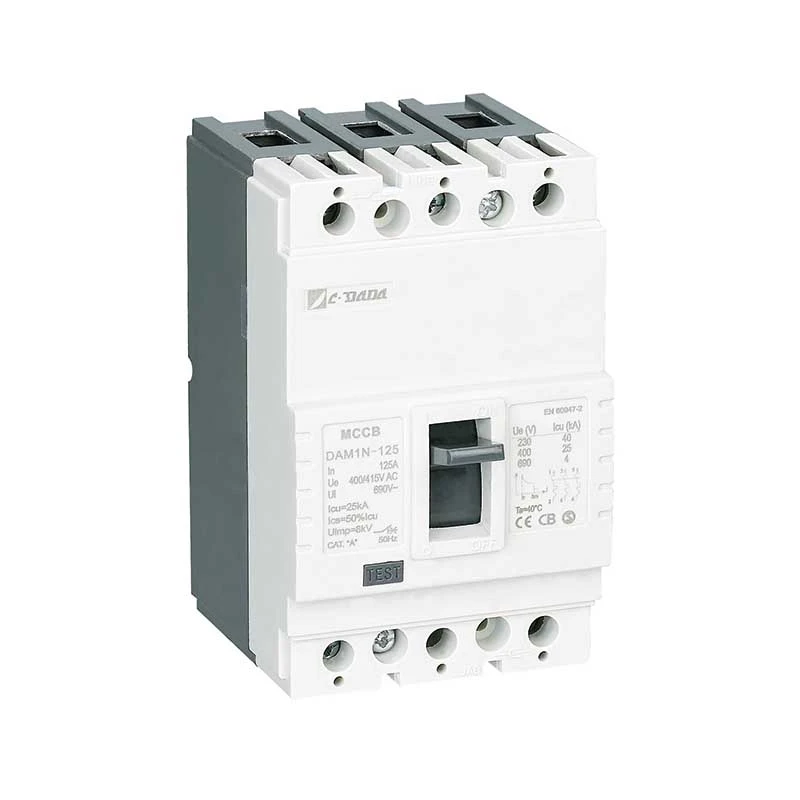

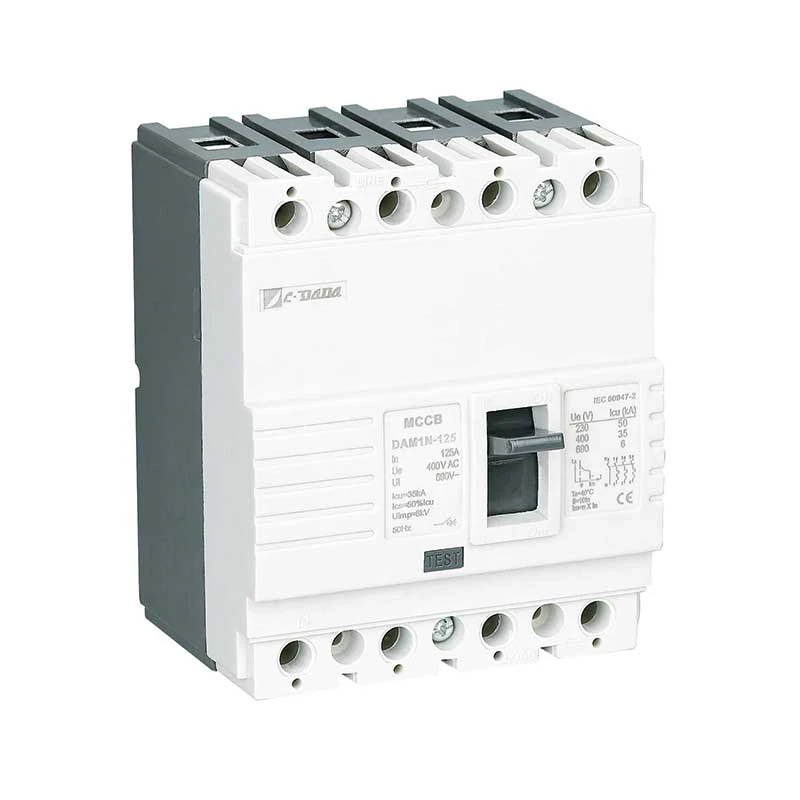

CDADA Fixed Type Molded Case Circuit Breaker (MCCB) DAM1 mndandanda amakwaniritsa zosowa za ntchito iliyonse, kuchokera kwa ogwiritsa ntchito ang'onoang'ono kupita ku makina osinthira mafakitale ndikuyika kugawa.
Mndandanda wa DAM1 uli ndi makulidwe asanu ndi awiri, mpaka 1600A, kuphwanya mphamvu mpaka 100 kA, magetsi ogwiritsira ntchito mpaka 1000 Volts, amakumana mosavuta ndi zofunikira zosiyanasiyana zamagetsi ndi makina opangira magetsi, amapereka njira zosiyanasiyana zopangira kuti apititse patsogolo zosowa za mphamvu iliyonse.
Ndi chiphaso chapadziko lonse lapansi KEMA, ASTA, SEMKO, CB, CE, ROHS; DAM1 ndiye chisankho chabwino kwambiri pazomera zamagetsi padziko lonse lapansi ndi OEM.
Zofunika Kwambiri
Magawo amagetsi a DAM1 MCCB owumbidwa ndi ophwanya dera
| Chitsanzo | kodi | Icu (KA) | Ics (KA) | Adavoteledwa Panopa -Mu | Ui(V) | Uwu (V) | Pole | Umu (V) |
| DAM1-160 | B | 25 | 18.75 | 10 - 12,5 - 16 - 20 - 25 - 32 - 40 - 50 - 63- 80 - 100 - 125-160A | 500V | 230 V | 1P | 10000 |
| N | 36 | 27 | ||||||

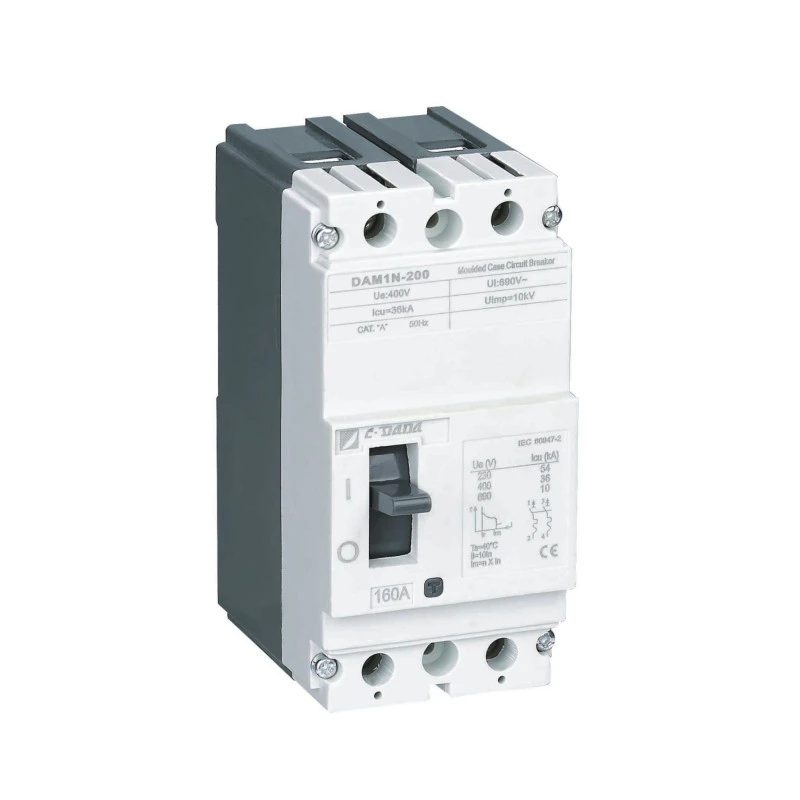

| DAM1-200 | B | 25 | 18.75 | 10 - 12,5 - 16 - 20 - 25 - 32 - 40 - 50 - 63- 80 - 100 - 125-160(200)A | 750V | 400V | 2P | 10000 |
| N | 36 | 27 | ||||||
| DAM1-125 | B | 25 | 12.5 | 10 - 12,5 - 16 - 20 - 25 - 32(30) - 40 - 50 - 63(60) - 80 - 100 - 125A | 750V | 400V | 3P / 4P | 10000 |
| N | 35 | 17.5 | ||||||
| S | 50 | 37.5 | ||||||
| DAM1-160 | B | 25 | 12.5 | 10- 12,5-16-20 - 25 - 32 - 40 - 50 - 63 - 80 - 100 -125 - 160(150)A | 750V | 400/415V | 3P / 4P | 8000 |
| N | 35 | 26.25 | ||||||
| S | 50 | 37.5 | ||||||
| DAM1-250 | N | 35 | 26.25 | 63 - 80-100-125 - 160(180) - 200(225) - 250(320)A | 750V | 400/415V | 3P / 4P | 8000 |
| S | 50 | 37.5 | ||||||
| H | 65 | 48.75 | ||||||
| G | 85 | 51 | ||||||
| DAM1-630(400) | N | 35 | 26.25 | 250 - 315 (350)- 400 - 500 - 630A | 750V | 400/415V | 3P / 4P | 8000 |
| S | 50 | 37.5 | ||||||
| H | 70 | 52.5 | ||||||
| G | 85 | 52.5 | ||||||
| DAM1-800 | N | 35 | 35 | 400 - 500 - 630 (700)- 800 -1000A | 750V | 400/415V | 3P / 4P | 8000 |
| S | 50 | 37.5 | ||||||
| H | 70 | 52.5 | ||||||
| G | 85 | 52.5 | ||||||
| DAM1-1600 | S | 65 | 50 | 800 -1000 - 1250 - 1600A | 750V | 400V | 3P / 4P | 8000 |
| H | 85 | 50 | ||||||
| G | 100 | 50 |
● Mayeso a Icu:O-t-CO(O:Kuyendetsa kotsegula,CO:Kuyendetsa-Kotseka,t:Kudikirira)
● Ics:O-t-CO-t-CO kuyesa(O:kuyendetsa kotseguka,CO:Kuyendetsa-Kotseka,t:Kudikirira)
★ ON/I Udindo: Zimasonyeza kuti zolumikizana ndi chophwanyira zatsekedwa. Pamalo awa, lever ya breaker ili pamalo apamwamba
★ TRIP Position: Zimasonyeza kuti wosweka amatsegulidwa chifukwa cha kulephera kulikonse (kupitirira katundu kapena dera lalifupi). Pachifukwa ichi, lever ya breaker ili pakati pakati pa ON ndi OFF malo. Kuti mutenge chophwanya, chomwe chili paulendo, kupita ku ON malo; kanikizani chowotcha chophwanyira pansi monga chisonyezero cha OFF
Wosweka adzakhazikitsidwa ndi "dinani" phokoso. Pambuyo pake, kukoka lever monga ON chizindikiro kutseka wosweka.
★ OFF/0 Udindo: Zimasonyeza kuti kukhudzana ndi wosweka ndi otseguka. Mwanjira iyi, lever yophwanyira ili pansi.
Magawo akuthupi a DAM1-125 MCCB opangidwa ndi ophwanya dera
| Gulu (EN 60947-2/IEC 60947-2) | Kupirira |
|
||||||
| Chitsanzo | Pole | Katundu wa Dielectric (V) | mtunda wautali (mm) | Total Cycles | Moyo Wamagetsi | Moyo Wamakina | Dera lalikulu | Dera lothandizira |
| DAM1-160 | 1P | 2500 | ≤30/0 | 20000 | 3000 | 17000 | A/0 | AC-15 |
| DAM1-200 | 2P | 2500 | ≤30/0 | 15000 | 2500 | 12500 | A/0 | AC-15 |
| DAM1-125 | 3P / 4P | 2500 | ≤30/0 | 8000 | 1000 | 7000 | A/0 | AC-15 |
| DAM1-160 | 3P / 4P | 3000 | ≤30/0 | 8000 | 1000 | 7000 | A/0 | AC-15 |
| DAM1-250 | 3P / 4P | 3000 | ≤30/0※ | 8000 | 1000 | 7000 | A/B | AC-15 |
| DAM1-630(400) | 3P / 4P | 3000 | ≤60/0※ | 5000 | 1000 | 4000 | A/B | AC-15 |
| DAM1-800 | 3P / 4P | 3000 | ≤80/0※ | 5000 | 1000 | 4000 | A/B | AC-15 |
| DAM1-1600 | 3P / 4P | 3000 | ≤80/0※ | 3000 | 500 | 2500 | A/B | AC-15 |
Mfundo Yogwira Ntchito & Njira Yotetezera
★ Chitetezo cha Matenthedwe (Kudzaza)
Mzere wa bimetallic umapindika ukatenthedwa ndi mopitilira muyeso (> wovotera pano). Liwiro lopindika limafanana ndi kukula kwapano—kuwonetsetsa kuti kuyenda mozungulira nthawi kumatengera kutentha kwa chingwe, kuteteza maulendo azovuta pomwe mukuteteza zida.
★ Chitetezo cha Magnetic (Njira Yaifupi)
Panthawi yochepa (mwachitsanzo, gawo-to-phase kapena gawo-to-ground), mphamvu ya maginito yapamwamba nthawi yomweyo imakoka plunger ya solenoid, kumasula makina a latch mkati mwa ma milliseconds-kudula cholakwa chisanachitike kuwonongeka kwa kutentha.
Ubwino wa mankhwala
★ Thupi ndi Chivundikiro:
TS EN 60512-20-2 Fiber-glass polyester resin imagwiritsidwa ntchito ngati thupi komanso zofunda. Izi, zomwe zimatchedwa BMC (Bulk Molding Compound) m'mabuku, zimakondedwa chifukwa chamtengo wapatali wamagetsi ndi makina ndipo zimatha kupirira kutentha kwa 160 ℃ mosalekeza. Zinthu za BMC siziwotcha zikakumana ndi waya pa kutentha kwa 960 ℃ malinga ndi IEC 695-2-1
Bimetal: Bimetal ndi chinthu chophatikizika ndi zitsulo ziwiri zokhala ndi ma coefficients osiyanasiyana owonjezera motsutsana ndi kutentha. Zomwe zimadutsa pa chophwanyira zimatenthetsa bimetal. Chifukwa cha kutentha uku. bimetal amapindika ku mbale yocheperako. Popeza kutentha kumawonjezeka pamene mphamvu yomwe ikudutsa pa chophwanya ikuwonjezeka, bimetal imatenthedwa kwambiri ndipo imapindika kwambiri. Mwanjira iyi, imayang'anira njira yotsegulira kuti mutsegule wosweka.

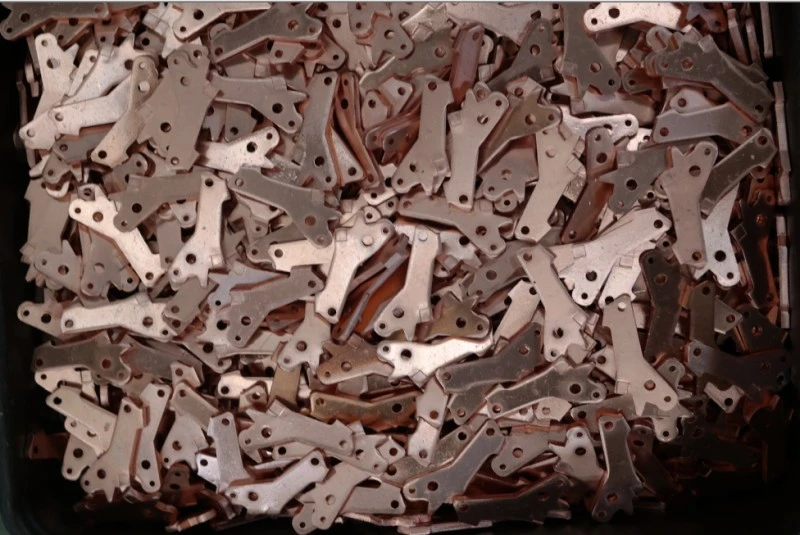

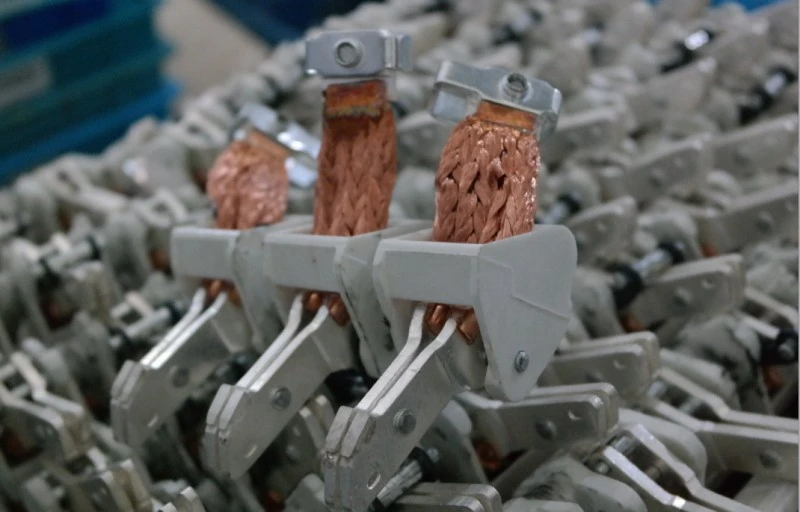

★ Contacts:
Kulumikizana aloyi anatsimikiza osweka poganizira wosweka ndi kunyamula makhalidwe panopa ndi zomangamanga Nthawi zambiri siliva, graphite, faifi tambala, wolfram aloyi kukhudzana ntchito ophwanya Contacts, amene amapangidwa ndi kasakaniza wa siliva-graphite ndi kamangidwe smoothers, ntchito zokhazikika (pansi) kulankhula, siliva wolfram kukhudzana, amene ali ovuta, ntchito kusuntha (pamwamba). Mapangidwe a swaged atsimikiziridwa pakusuntha kolumikizana. Mwanjira iyi, zolumikizana ndi aloyi zolimba komanso zolimba zimakhala ndi malo pazolumikizana zofewa pakutseka kulikonse.
Mwanjira iyi, kukana kotsika kwambiri kumatsimikiziridwa.Kulumikizana kosuntha kuyenera kukhudza kukhudzana kokhazikika bwino kwambiri kuti mukhale ndi kukana kutsika kochepa. Komabe, kukakamiza kolumikizana kwambiri kumabweretsa kuwonongeka kwa zolumikizana pakanthawi kochepa kuposa nthawi zonse. Ma aloyi olumikizana ndi ofunikira kwambiri kuti mutsegule bwino.
★ Cell Extinguisher (Separator):
Olekanitsa amagwiritsidwa ntchito kuthetsa arc yomwe imapangidwa panthawi ya ntchito ya breaker yomwe ikugwira ntchito pansi pa mphamvu. Pamene kusuntha kumalekanitsidwa ndi kukhudzana kokhazikika, zamakono zimapitiriza kuyenda pakati pa olumikizana kwakanthawi ndipo izi zimatchedwa arc.Arc iyi iyenera kutha pakanthawi kochepa.
★ Kutha kwa Arc:
Arc imakankhidwira kwa olekanitsa chifukwa cha mphamvu ya maginito yomwe imapangidwa mozungulira arc. Mwanjira iyi, arc imakulitsidwa ndikukhala yaying'ono ndikusweka pakati pa mbale zolekanitsa (Chithunzi-5). Chifukwa cha mawonekedwe azinthu zomwe zimagwiritsidwa ntchito pamakoma am'mbali mwa olekanitsa, mpweya umatuluka chifukwa cha kutentha kwakukulu komwe kumachitika chifukwa cha arc. Mpweya umenewu umakhudza kwambiri kutha kwa arc.
Kugwiritsa ntchito
CDADA DAM1 Fixed Type Molded Case Circuit Breaker (MCCB) imadaliridwa pazovuta zonse:

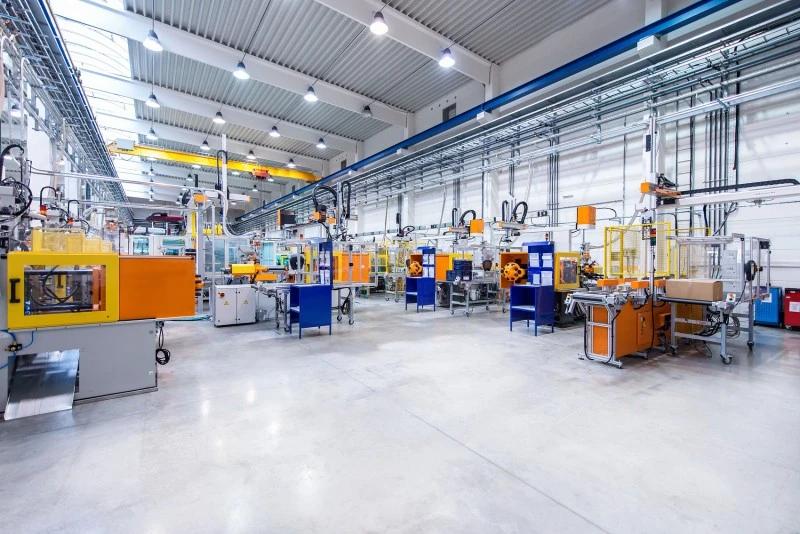

★ Industrial: Makina opangira zitsulo, nsanja zamafuta & gasi, zopangira mankhwala
★ Zaumoyo: Zipatala zazikulu & zogawira matabwa
★ Mayendedwe: Kuzindikiritsa njanji, makina onyamula katundu pabwalo la ndege

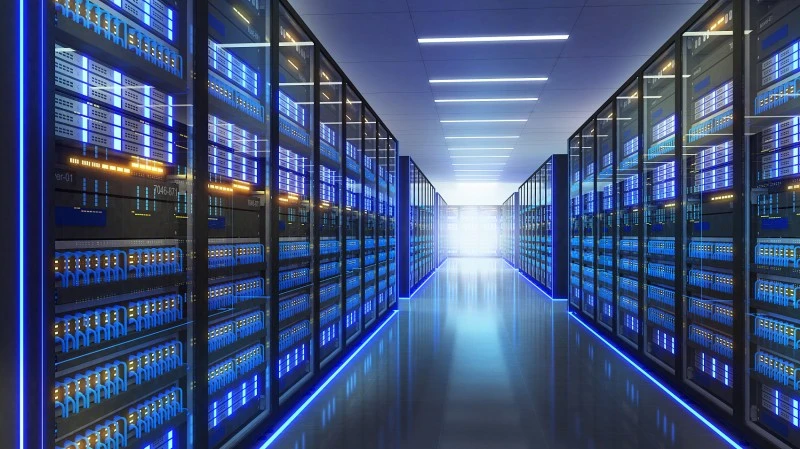

★ Zamalonda: Zomangamanga, malo opangira data, malo ogulitsira, malo amsonkhano
★ Malo Agulu: Mabwalo amasewera, mabwalo amasewera, nyumba zaboma
Ubwino Woyika & Kukonza

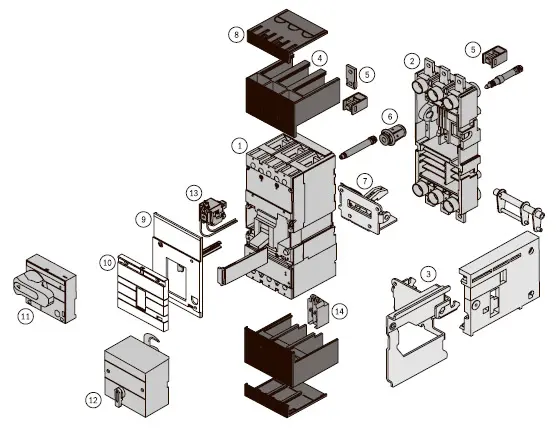

★ Kuphatikiza Kosavuta:
Zida zokhazikika zimaphatikizapo mabasi, zotchinga magawo, ndi zida
Zowonjezera zomwe mungasankhe: ma alarm, kutulutsa kwa shunt / undervoltage, makina ogwiritsira ntchito magetsi

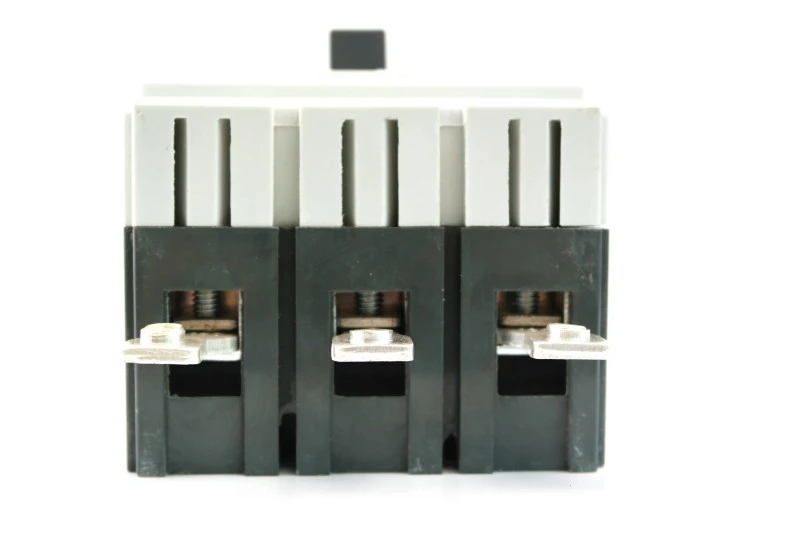

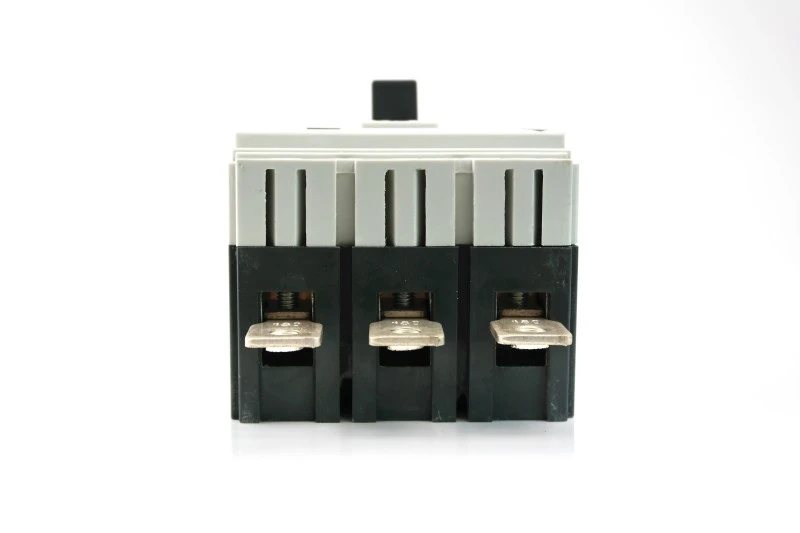

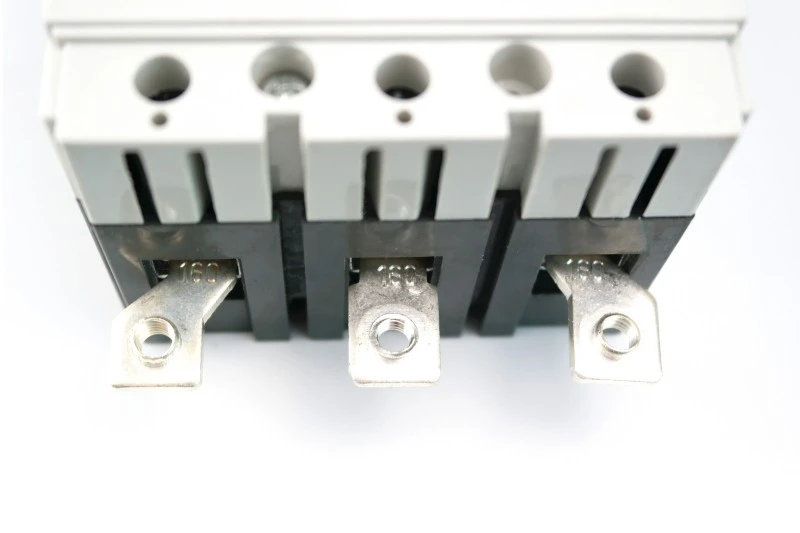

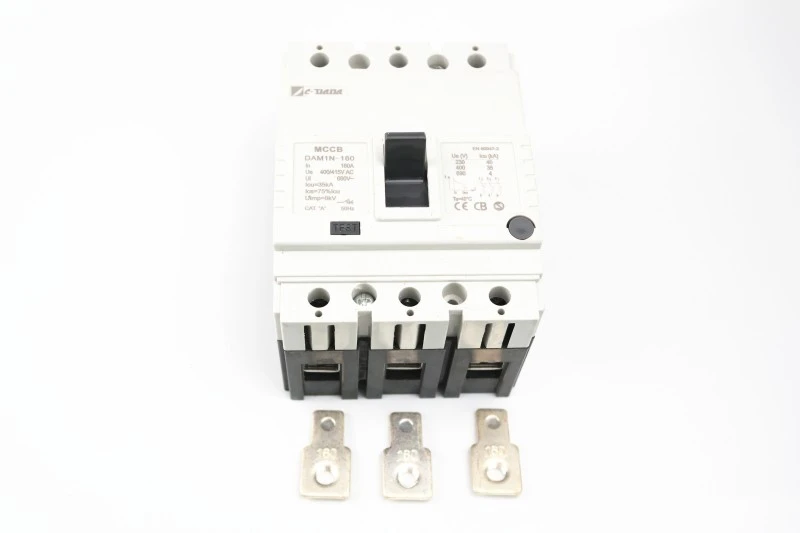

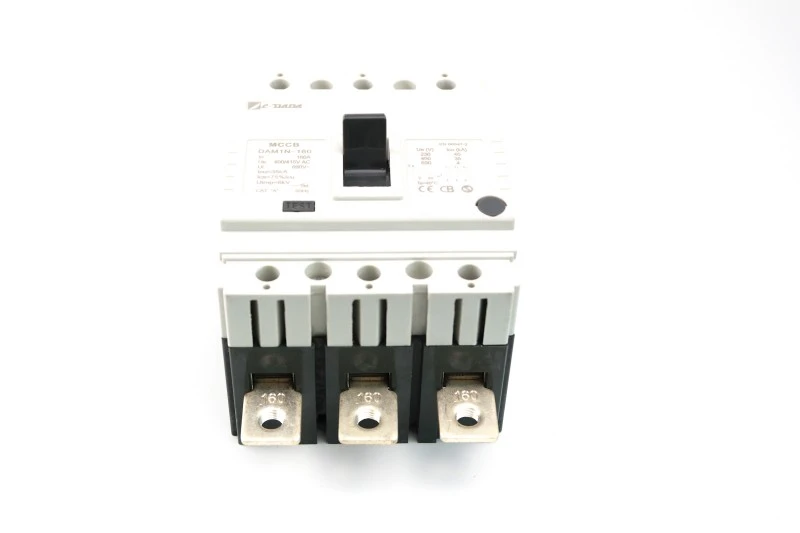

1) Lumikizani ndi busbar yowonjezera (chithunzi 1)

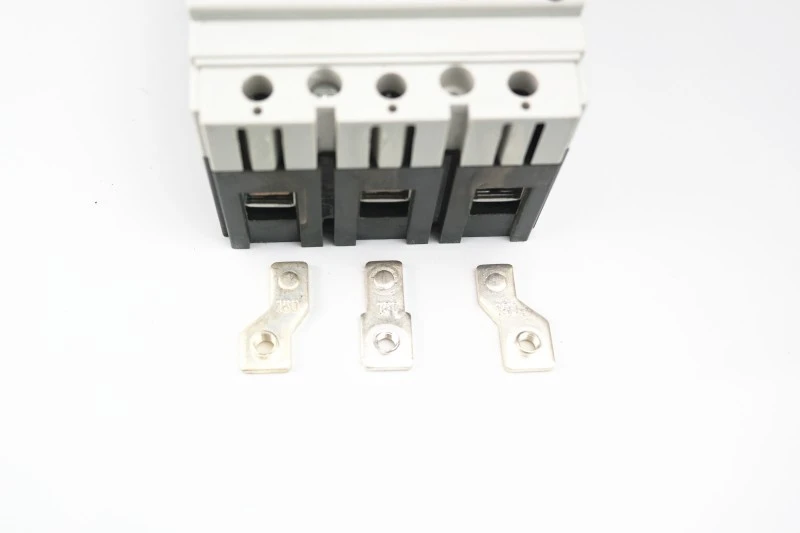

2) Lumikizanani ndi chowulutsira terminal (chithunzi 2)

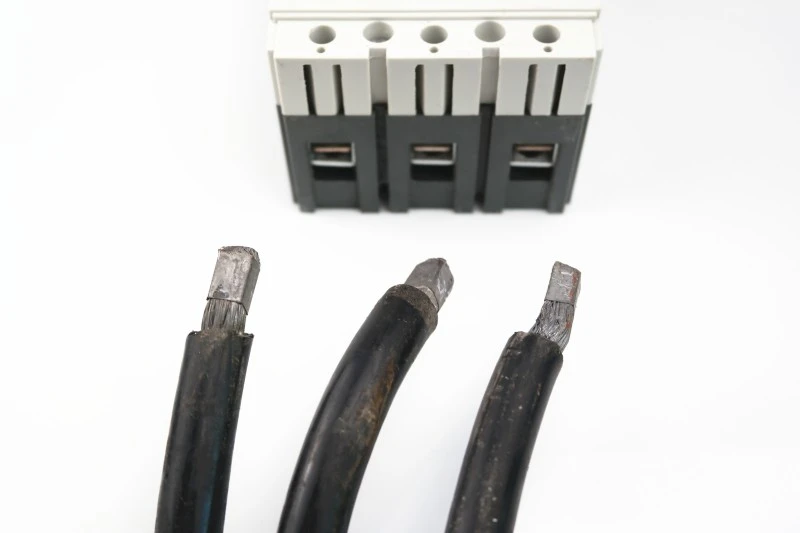

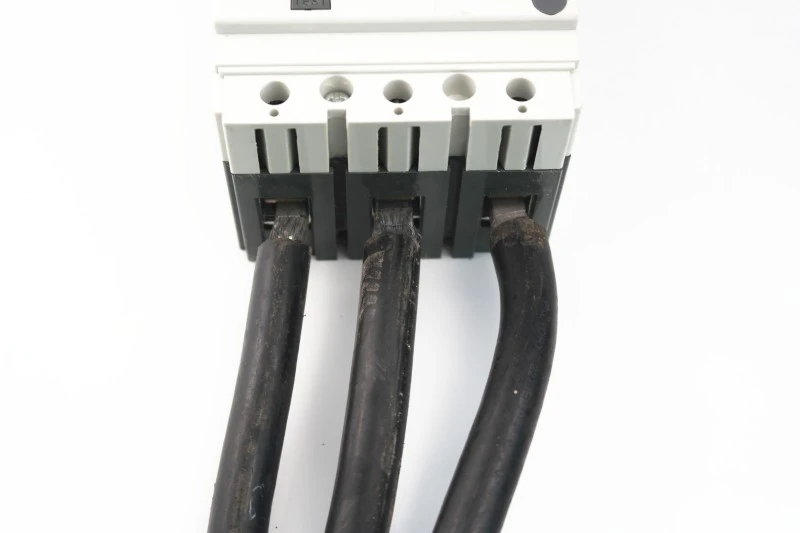

3) Lumikizani chingwe mwachindunji (chithunzi 3) osagwiritsa ntchito zingwe.

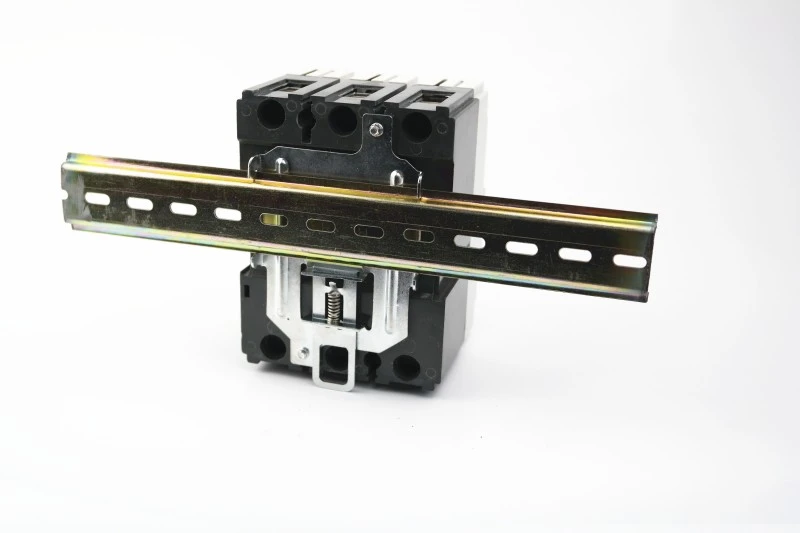

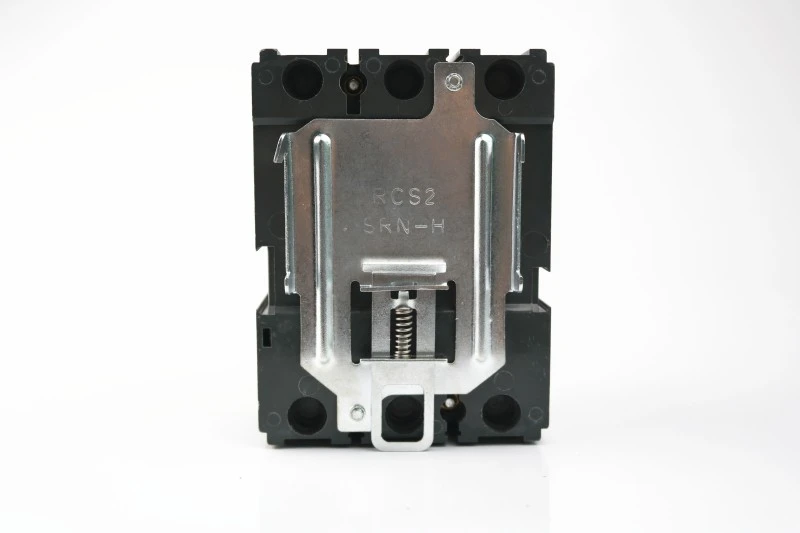

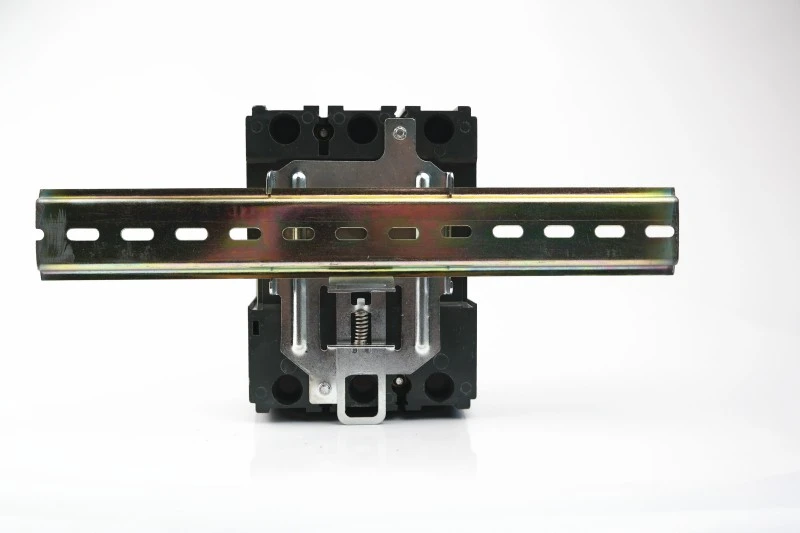

Mothandizidwa ndi achepetsa wapadera 125 ndi 160 mayunitsi akhoza kuikidwa pa DIN-njanji.
Wophwanya ndi clamp
chepetsani ndi njanji ya DIN
chepetsani ndi njanji ya DIN
★ Mapangidwe Opulumutsa Malo:
10-20% yopepuka komanso yaying'ono kuposa njira zapakhomo
Imayatsa kukula kwa mpanda → zinthu zotsika & mtengo wotumizira
★ Kukhazikitsanso Koyenera Kugwiritsa Ntchito:
Chowonetsa bwino cha TRIP chimalepheretsa kutseka kwakhungu
"Kudina" komveka kumatsimikizira kuchitapo kanthu koyenera kwamakina
★ Tsogolo-Okonzeka:
Imathandizira plug-in ndi zida zojambulira (zamitundu yosankhidwa)
Yogwirizana ndi zowunikira mwanzeru zowonjezera
Chifukwa chiyani kusankha CDADA?

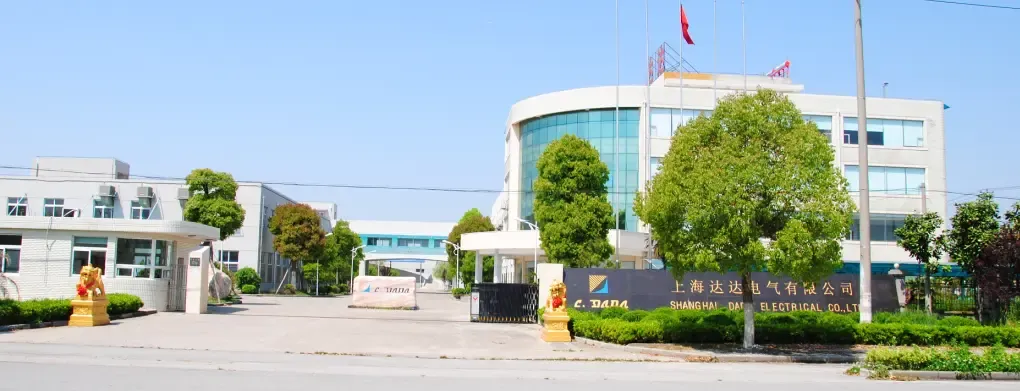

1. Ndife opanga otsogola kwa zaka 42+. Kampani yathu idakhazikitsidwa mu 1983, ikukula mwachangu kwambiri pazaka 40.

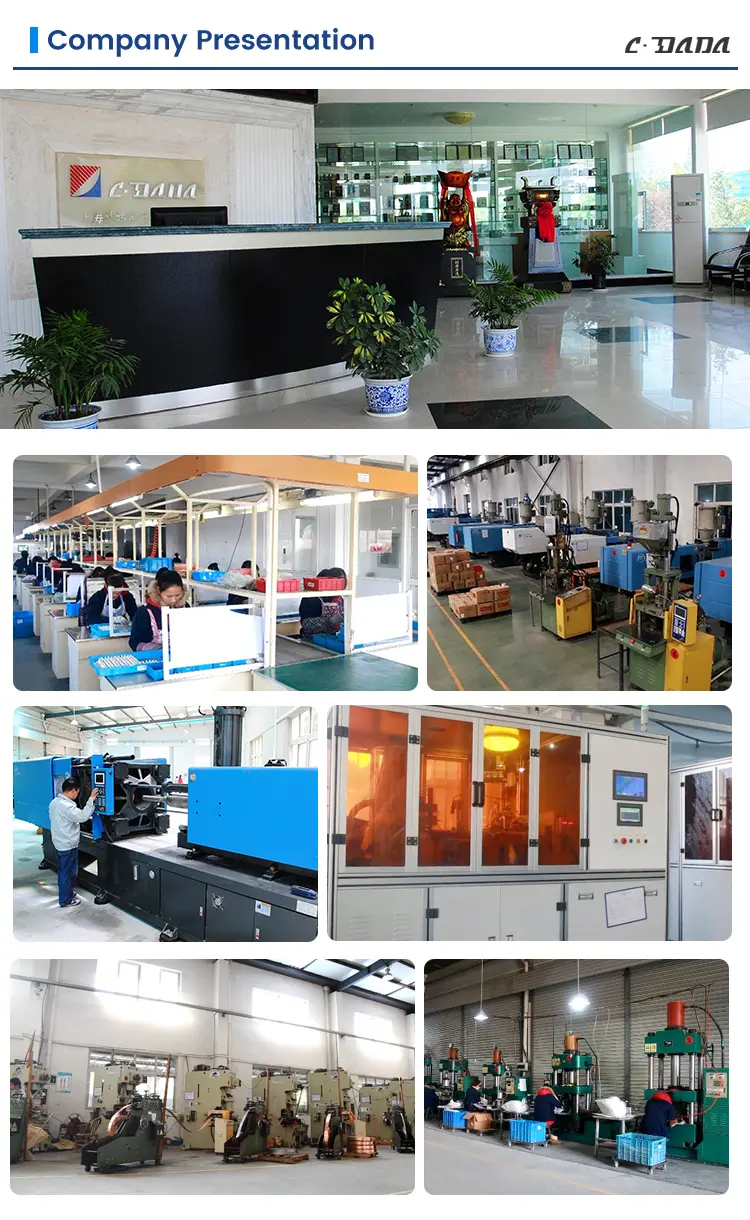

2. Gululi, lomwe lili ndi mafakitale 3, lili ndi malo opangira 52,400m² ndipo lili ndi antchito oposa 500. Tayika ndalama pafupifupi ma yuan mamiliyoni khumi kuti tiwonjezere ntchito yathu ndikukweza ma workshop athu.
3. Fakitale yofufuzidwa ndi INTERTEK, DEKRA & GMC
4. Makatoni amphamvu kwambiri, chitetezo cha pallet, chabwino pamayendedwe akutali otumiza kunja
Mafunso Ofunsidwa Kawirikawiri (FAQ)
Q1: Kodi DAM1 Fixed Type Molded Case Circuit Breaker ikhoza kukhazikitsidwa panjanji ya DIN?
A1: Inde-zitsanzo 125A ndi 160A zitha kukhazikitsidwa pazitsulo za DIN pogwiritsa ntchito cholembera chapadera. Mavoti apamwamba amaikidwa pamapanelo okha.
Q2: Ndi ziphaso zotani zomwe mndandanda wa DAM1 umagwira?
A2: Imatsimikiziridwa ndi CE, CB, ASTA, KEMA, SEMKO, ndi RoHS, kuwonetsetsa kutsatiridwa ku EU, Middle East, Southeast Asia, ndi kupitirira apo.
Q3: Kodi ndingakhazikitsenso bwanji chophwanya pambuyo paulendo?
A3: Choyamba, sunthani chowongolera mpaka KUZIMU (mumva kudina), kenako kukokerani mpaka ON. Osachikakamiza kuchokera ku TRIP kupita ku ON.
Q4: Kodi zida zothandizira zimagwirizana?
A4: Inde-ma alarm, othandizira othandizira, kutulutsa kwa shunt / undervoltage, ndi ogwiritsa ntchito magetsi akhoza kuwonjezeredwa popanda kusokoneza.
Q5: Kodi DAM1 ndi yoyenera m'malo ophwanya akale?
A5: Ndithu. Mapazi ake ophatikizika amalola kuti ma MCCB alowe m'malo mwazinthu zambiri - kupulumutsa nthawi ndikukweza mtengo.
