A 125 15KA Miniature Circuit Breakerlapangidwira machitidwe amagetsi omwe amafunikira mphamvu zamakono komanso chitetezo chodalirika chafupipafupi. Mosiyana ndi ma MCB wamba omwe ali otsika kwambiri, chipangizo cha 125A chotsika kwambiri chimatha kuthana ndi ntchito zogawa zomwe zimafunikira pomwe mafunde olakwika angakhale okwera kwambiri. Nkhaniyi ikufotokoza momwe 125 15KA MCB imagwirira ntchito, zomwe mfundo zake zazikulu zikutanthawuza, komwe zingagwiritsidwe ntchito, momwe mungasankhire ndikuyika bwino, ndi zomwe magulu ogula ayenera kufufuza asanayike dongosolo. Imayang'ananso zomwe zidapangidwa pagulu la DAB7-125 kuchokera ku Shanghai DaDa Electric Co., Ltd., kuphatikiza chitetezo chamafuta-maginito, kapangidwe kake kocheperako, ma terminals akulu akulu, komanso mphamvu yosweka ya 15kA.
M'ndandanda wazopezekamo
- Kodi 125 15KA Miniature Circuit Breaker ndi chiyani?
- Chifukwa Chiyani 125A ndi 15KA Zili Zofunika?
- Kodi Njira Yotetezera Imagwira Ntchito Motani?
- Kodi Ndi Zinthu Ziti Zomwe Zimathandiza Kuti Anthu Azigwira Ntchito Mwachangu?
- Kodi 125 15KA MCB Ingagwiritsidwe Ntchito Kuti?
- Zofunika Kuzifufuza
- Momwe Mungasankhire Kusintha Koyenera
- Kuyika ndi Kusamalira
- Mavuto Wamba ndi Kugula Kuda nkhawa
- Chifukwa chiyani Shanghai DaDa Electric Co., Ltd.?
- Mafunso Ofunsidwa Kawirikawiri
- Malingaliro Omaliza

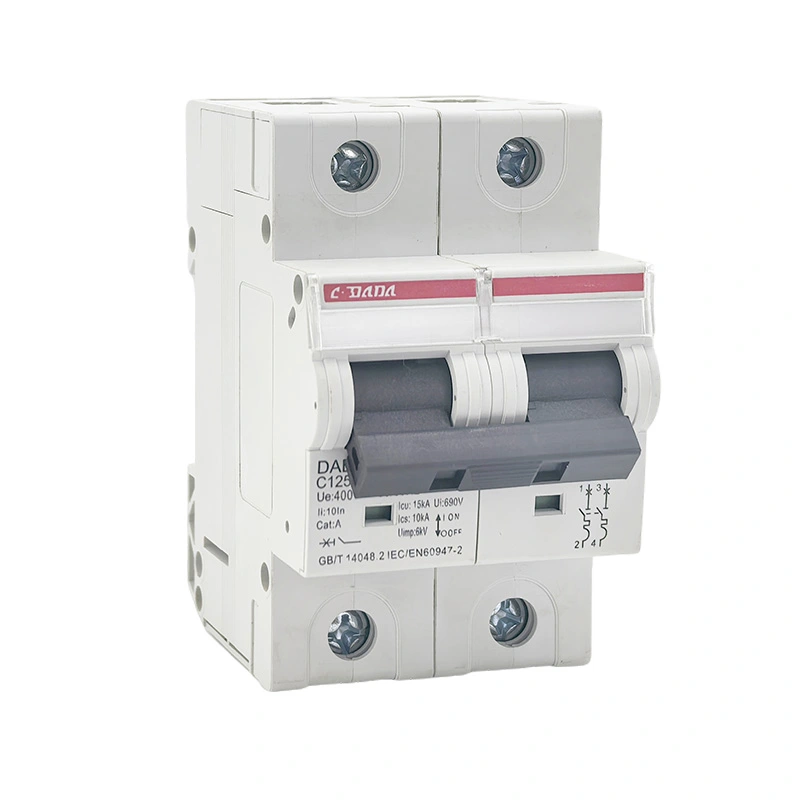

Kodi 125 15KA Miniature Circuit Breaker ndi chiyani?
125 15KA Miniature Circuit Breaker ndi chipangizo chamakono choteteza chomwe chimapangidwira kusokoneza mabwalo amagetsi pakachitika zovuta. M'matchulidwe azinthu, "125" nthawi zambiri imadziwika kuti ndi 125A, pomwe "15KA" imatanthawuza kutha kwa 15kA kwakanthawi kochepa pamayesero ndi mulingo wovomerezeka.
Nambala ziwirizi zikufotokoza makhalidwe osiyanasiyana amagetsi. Chiyerekezo cha 125A chimakhudza momwe wosweka amapangidwira kuti azinyamula pansi pamikhalidwe yodziwika. Chiwerengero cha 15kA chikugwirizana ndi kuchuluka kwa zomwe zikuyembekezeka kukhala zazifupi zomwe wosweka amatha kusokoneza mosatetezeka pansi pamikhalidwe yake.
Kusiyanitsa kumeneku ndikofunikira pamene mainjiniya amafananiza ophwanya madera. Kuchulukirachulukira kwamphamvu sikungotanthauza kuthyoka kwakanthawi kochepa. Makhalidwe onsewa ayenera kuyesedwa motsutsana ndi mawonekedwe amagetsi oyikapo.
Mndandanda wa DAB7-125 wochokera ku Shanghai DaDa Electric Co., Ltd. Zambiri zomwe zidasindikizidwa zimazindikiritsa 125A zomwe zidavoteredwa pano komanso zosweka kwambiri kuphatikiza 15kA. Wopangayo amatchulanso chitetezo cha maginito matenthedwe komanso kapangidwe kake kamakono.
Chifukwa Chiyani 125A ndi 15KA Zili Zofunika?
Makina ogawa magetsi amatha kukhala ndi mphamvu zowonongeka, makamaka pafupi ndi ma transfoma, matabwa ogawa, makina opangira mafakitale ndi katundu wamkulu wamagetsi. Ngati chida choteteza chikakumana ndi vuto lamagetsi pamwamba pa mphamvu yake yosokoneza, zotulukapo zake zingaphatikizepo kuwonongeka kwa zida, kuponyera kwambiri komanso kuwopsa kwachitetezo.
Kuthamanga kwa 15kA kumapereka malire osokoneza kwambiri kuposa ma MCBs ambiri otsika kwambiri. Kuyenerera kwenikweni, komabe, kumadalira komwe kukuyembekezeka kukhala kwanthawi yayitali pamalo oyikapo komanso zofunikira za muyezo wamagetsi womwe ukugwiritsidwa ntchito.
| Parameter | Zimene Izo Imasonyeza | Chifukwa Chake Kuli Kofunika? |
|---|---|---|
| 125A | Zovoteledwa panopa | Imatsimikizira mtundu wanthawi zonse wonyamula wosweka. |
| 15kA ku | Kutha kwapang'onopang'ono kosokoneza | Imathandiza wophwanyitsa kusokoneza mafunde amphamvu kwambiri. |
| Ulendo wotentha | Chitetezo chambiri | Imayankhira ku mikhalidwe yopitilira apo. |
| Ulendo wamaginito | Chitetezo chapafupifupi | Amapereka ntchito mofulumira pa vuto lalikulu. |
| Kuchepetsa kwapano | Kuchepetsa mphamvu yolakwika | Zingathandize kuchepetsa nkhawa zomwe zimayikidwa pazida zotsika. |
Popanga makina ogawa, chowotchacho chiyenera kusankhidwa kuchokera ku chiwerengero chenicheni cha katundu, chiwerengero cha conductor, kuwerengera zolakwika, magetsi, mafupipafupi, masinthidwe a pole ndi zofunikira zogwirizanitsa kusiyana ndi zomwe zilipo panopa.
Kodi Njira Yotetezera Imagwira Ntchito Motani?
MCB yamakono nthawi zambiri imaphatikiza mfundo ziwiri zoyambirira: chitetezo chamafuta ndi chitetezo cha maginito. Njira ziwirizi zimayang'ana mitundu yosiyanasiyana ya zochitika zowonongeka.
Chitetezo chamafuta chimayankha pakuchulukirachulukira komwe kumapitilira pakapita nthawi. Kutentha kumapangitsa kuti matenthedwe azitha kugwira ntchito ndikutsegula dera lomwe lakonzedwa.
Kutetezedwa kwa maginito kumapangidwira pazovuta zapakali pano. Kuyankha kwamphamvu kwa maginito kumatha kuyambitsa makina aulendo mwachangu pakadutsa njira yayifupi kwambiri.
Zolumikizana zikasiyana panthawi ya vuto, arc yamagetsi imatha kupanga. Zomangamanga zamkati za arc-management zimathandizira kuwongolera ndi kuzimitsa arc panthawi yosokoneza.
Zomangamanga zamakono zingathe kuchepetsa mphamvu zomwe zimaloledwa kudutsa dera panthawi yachidule, zomwe zimathandiza kuchepetsa nkhawa pazigawo zogwirizanitsa.
Chidziwitso chazinthu za DAB7-125 chimafotokoza ntchito yaulendo wotentha ndi maginito, makina opanda maulendo, komanso kapangidwe kake kocheperako. Izi ndizofunikira makamaka pamapulogalamu omwe chipangizo choteteza chimayenera kuyankha mosadukiza pazochulukira kwanthawi yayitali komanso zolakwika zapakali pano.
Kodi Ndi Zinthu Ziti Zomwe Zimathandiza Kuti Anthu Azigwira Ntchito Mwachangu?
Zida zotetezera zamagetsi sizimawunikidwa ndi mutu wake wamakono. Kumanga kwamakina, kapangidwe ka terminal, zida zolumikizirana, njira yokwezera ndi makonzedwe amkati a arc-control amatha kukhudza magwiridwe antchito.
- Kuthamanga kwakukulu:Mafotokozedwe a 15kA amapereka kusokoneza kwapang'onopang'ono kwafupipafupi kusiyana ndi ma MCBs ambiri otsika kwambiri.
- Zotengera zazikulu:Mndandanda wa DAB7-125 udapangidwa ndi ma terminals akulu oyenera ma conductor amkuwa ndi aluminiyamu mpaka 35mm² malinga ndi zomwe wopanga adalemba.
- Njira yopanda maulendo:Wosweka akhoza kusunga ntchito yake yotetezera ngakhale pamene njira yogwiritsira ntchito ikugwiridwa pa ON.
- Kulumikizana kwabwino:Kuwonetsa momveka bwino za momwe mungayandikire kungapangitse kuyang'anira ndi kukonza kukhala kosavuta.
- Thermal-magnetic ntchito:Zosiyanasiyana za overcurrent zitha kuthetsedwa kudzera munjira zowonjezera zaulendo.
- Kuyika kwa DIN-njanji:Kuyika modular kumathandizira kukhazikitsa mkati mwa zida zogawira zomwe zimagwirizana.
- Malo oletsa moto:Zambiri zomwe zidasindikizidwa za DAB7-125 zimafotokoza za PA66 zomwe sizimayaka moto.
Zambirizi ndizofunikira kwa omwe amagawa ndi ophatikiza makina chifukwa kukhazikitsa bwino komanso magwiridwe antchito kumatha kukhudza kuchuluka kwa magwiridwe antchito, osati mtengo wogula woyambirira.
Kodi 125 15KA MCB Ingagwiritsidwe Ntchito Kuti?
125A yamphamvu kwambiri ya MCB imatha kuganiziridwa ngati makina ogawa magetsi pomwe mulingo waposachedwa komanso wolakwika umagwera mkati mwazomwe zidagwiritsidwa ntchito. Malo ogwiritsira ntchito omwe angaphatikizepo mafakitale, nyumba zamalonda, mapanelo ogawa zida ndi mabwalo ena apamwamba kwambiri.
| Kugwiritsa ntchito | Chofunikira Chodziwika | Phindu Lotheka |
|---|---|---|
| Kugawa kwa mafakitale | Zapamwamba zamakono katundu ndi wovuta zinthu zolakwika | Kuchuluka kwamakono komwe kumakhala ndi chitetezo chachifupi |
| Nyumba zamalonda | Chitetezo chodalirika chogawa | Chitetezo chokhazikika pamagawo ogawa |
| Makina amakina | Chitetezo cha zida zamagetsi ndi zodyetsa | Thermal ndi maginito overcurrent kuyankha |
| Magawo ogawa | Zida zodzitetezera zomwe sizingawononge malo | Kuyika kwa DIN-njanji ndikumanga modular |
| Zida zogwiritsa ntchito mphamvu | Mkulu wozungulira panopa | Kufikira 125A masinthidwe ovoteledwa kutengera mtundu womwe mwasankha |
Kuyenerera kwa ntchito kuyenera kutsimikiziridwa nthawi zonse motsutsana ndi kapangidwe kake kamagetsi. Voltage, ma frequency, omwe akuyembekezeka kulakwitsa, kukula kwa kondakitala, kutentha kozungulira, kasinthidwe ka pole ndi malamulo oyika omwe angasinthe amatha kusintha kusankha koyenera.
Zofunika Kuzifufuza
Ogula nthawi zambiri amaganizira za "125A" ndi "15kA" chifukwa ndizosavuta kumva. Komabe, kugula zinthu mwaukadaulo kumafuna kuwunikanso kwatsatanetsatane.
| Kufotokozera | Funso Logula |
|---|---|
| Zovoteledwa panopa | Kodi mavoti osankhidwa akufanana ndi kuchuluka kwa kondakitala kowerengeredwa? |
| Kuphwanya mphamvu | Kodi mphamvu ya 15kA yotchulidwayo ndi yoyenera pamavuto omwe akuyembekezeka? |
| Adavotera mphamvu | Kodi chophwanyiracho chikufanana ndi dongosolo lamagetsi ndi kugawa? |
| Chiwerengero cha mitengo | Kodi dera limafunikira 1P, 2P, 3P, 4P kapena masinthidwe ena? |
| Ulendo wokhotakhota | Kodi kutulutsa kosankhidwa kumagwirizana ndi katundu wolumikizidwa? |
| Mulingo woyenera | Kodi malondawa amakwaniritsa mulingo wofunikira pamsika womwe mukufuna ndikuyikapo? |
| Mphamvu yokwerera | Kodi materminal atha kukhala ndi kondakitala yemwe watchulidwa? |
| Njira yoyika | Kodi kukwera kwa DIN-njanji kapena kuyika kwina kumafunika? |
Mwachitsanzo, IEC 60947-2 ndi IEC/EN 60898-1 amagwiritsa ntchito magulu osiyanasiyana ndi zoyesa zoyeserera za ophwanya madera. Zambiri za opanga zosindikizidwa zimatha kukhala ndi mawu a Icu ndi Icn kutengera mulingo ndi gulu lazinthu. Wogula akuyenera kutsimikizira ndendende mlingo womwe ukugwira ntchito pamagetsi ndi momwe amagwirira ntchito pazomwe akufuna.
Momwe Mungasankhire Kusintha Koyenera
Kusankha 125 15KA Miniature Circuit Breaker kuyenera kuyamba ndi makina amagetsi m'malo mwa kalozera wazogulitsa. Kusankha kosavuta kungathe kuchepetsa chiopsezo chosokoneza wosweka ndi dera.
- Tsimikizirani kapangidwe kamakono.Werengetsani zomwe zikuyembekezeredwa mosalekeza komanso zapakatikati.
- Yang'anani mlingo wa kondakitala.Chipangizo chotetezera chiyenera kugwirizanitsidwa ndi chingwe chovomerezeka chamakono pansi pa zochitika zenizeni zoikamo.
- Dziwani zomwe zikuyembekezeka kukhala zazifupi.Mphamvu yosweka yosankhidwa iyenera kukhala yokwanira pamlingo wolakwika pamalo oyika.
- Tsimikizirani voteji ndi ma frequency.Onetsetsani kuti chophwanyidwa ndi chida chamagetsi.
- Sankhani ndondomeko ya pole.Ganizirani zofunika kwa okonda gawo ndi osalowerera ndale.
- Unikaninso mawonekedwe aulendo.Njira yokhotakhota iyenera kukhala yoyenera kwa katundu wolumikizidwa ndi zomwe zikuyembekezeredwa.
- Tsimikizirani miyezo ndi ziphaso.Yang'anani zomwe mukufuna pamsika womwe mukufuna, mafotokozedwe a projekiti ndi malamulo amagetsi am'deralo.
- Tsimikizirani kugwirizana kwa thupi.Tsimikizirani kukula, kukula kwa terminal, kuyanjana kwa njanji ya DIN ndi masitayilo amagulu.
Kuyika ndi Kusamalira
Kuyika kolondola ndikofunikira pazida zilizonse zodzitchinjiriza zapamwamba. Ngakhale woyendetsa dera wopangidwa bwino sangathe kubweza ma kondakitala olakwika, ma terminals otayirira, mipanda yosayenera kapena machitidwe osayenera oyika.
- Tsimikizirani mtundu wa breaker ndi ma rating musanayike.
- Patulani magetsi ndikutsatira njira zotetezedwa zomwe zikuyenera kuchitika.
- Tsimikizirani kuti gawo la kondakitala likugwirizana ndi cholumikizira.
- Konzani ma kondakitala moyenera ndikupewa nsonga zowonongeka kapena zodulidwa molakwika.
- Limbitsani ma terminals malinga ndi zomwe wopanga akufuna.
- Onetsetsani kuti chophwanyiracho chayikidwa bwino pa njanji ya DIN yogwirizana.
- Onetsetsani kuti mpanda umapereka chitetezo choyenera komanso chilolezo.
- Yang'anani ma terminals nthawi ndi nthawi kuti muwone ngati akutentha kwambiri, kusinthika kwamtundu kapena kutayikira kwa makina.
- Yesani dongosolo lachitetezo molingana ndi zofunikira zosamalira pakuyika.
Ndondomeko zosamalira ziyenera kuwonetsa chilengedwe ndi ntchito. Kuyika kwamafakitale komwe kumakhala ndi katundu wambiri, kusinthasintha pafupipafupi, fumbi, kugwedezeka kapena kutentha kokwera kungafunike kuyang'aniridwa pafupipafupi kuposa machitidwe ogawira m'nyumba.
Mavuto Wamba ndi Kugula Kuda nkhawa
Ogula ma MCB apamwamba kwambiri nthawi zambiri amakumana ndi zovuta zingapo. Kuthana ndi zovuta izi musanagule kungalepheretse kuchedwa komanso zovuta zoyika.
Zolemba zina zimangotchula za "kusweka kwakukulu". Ogula ayenera kupempha zenizeni zenizeni, muyezo, mphamvu yamagetsi ndi kuyesa kwake.
Kusankha 125A popanda kuyang'ana mphamvu ya chingwe ndi mapangidwe enieni amakono kungayambitse mavuto ogwirizanitsa.
Makondakitala akulu amafunikira ma terminals opangidwa kuti agwirizane ndi magawo ofunikira. Kugwirizana kwa Terminal kuyenera kutsimikiziridwa musanagule.
Ogula apadziko lonse lapansi nthawi zambiri amafunikira ukadaulo, ziphaso, zojambula ndi chidziwitso chazinthu kuti avomereze polojekiti.
Katswiri wothandizira akuyenera kupereka deta yomveka bwino ya malonda ndikuthandizira ogula kumvetsetsa kusiyana pakati pa zomwe zidavotera panopa, mphamvu zowonongeka, mawonekedwe aulendo ndi zofunikira zoikamo.
Chifukwa chiyani Shanghai DaDa Electric Co., Ltd.?
Malingaliro a kampani Shanghai DaDa Electric Co., Ltd.imapanga ndikupanga zinthu zoteteza dera zamafakitale ndi ntchito zamagetsi zamagetsi. Zolemba zake zomwe zidasindikizidwa zikuphatikiza ma MCB, ma MCCB, ma RCBO, ma RCCB ndi zida zotetezera dera.
Mndandanda wa DAB7-125 umayikidwa pamapulogalamu omwe amafunikira kuchuluka kwaposachedwa komanso kutha kwapang'onopang'ono. Zomwe zasindikizidwa zikuphatikiza 15kA high breaking capacity, thermal-magnetic trip ntchito, kapangidwe kake kamakono, ziwonetsero zabwino zolumikizana ndi ma terminals oyenera makondakitala akulu. :contentReference[oaicite:1]{index=1}
Zambiri zamafakitale opanga zimafotokozeranso kupondaponda kodzipereka, kuwotcherera, kuwotcherera, kuumba jekeseni ndi zokambirana, kuthandizira kupanga zinthu zonse za MCB ndi MCCB. :contentReference[oaicite:2]{index=2}
Kwa ogawa, ogulitsa magetsi, omanga mapanelo ndi makasitomala a OEM, mtundu uwu wa luso lopanga ukhoza kukhala wothandiza ngati kupezeka kwazinthu kosasinthasintha, zolemba zaukadaulo ndi chithandizo cha kasinthidwe ndizofunikira kwambiri pakusankha kogula.
| Zofunikira za Wogula | Mtundu wofananira wa " DAB7-125 " |
|---|---|
| High-panopa chitetezo dera | Idayezedwa pano mpaka 125A |
| Zofunikira zazifupi zazifupi | Kufikira ku 15kA kutha mphamvu molingana ndi zomwe zasindikizidwa |
| Chitetezo chambiri | Thermal ulendo ntchito |
| Kuyankha mwachidule | Maginito ulendo ntchito |
| Makondakitala akuluakulu | Zingwe zazikuluzikulu zopangira ma kondakitala mpaka 35mm² molingana ndi chidziwitso cha opanga |
| Kuyika gulu | Mapangidwe okwera a DIN-njanji |
Mafotokozedwe azinthu ayenera kutsimikiziridwa nthawi zonse motsutsana ndi zolemba zamakono zamakono asanavomerezedwe komaliza, makamaka pamene chophwanyira chidzayikidwa pamalo omwe ali ndi vuto lalikulu kapena magetsi oyendetsedwa bwino.
Mafunso Ofunsidwa Kawirikawiri
15KA imatanthawuza kutha kwa 15kA pang'onopang'ono pamiyeso yomwe yaperekedwa. Imawonetsa kuchuluka kwanthawi yayitali yomwe chipangizocho chimapangidwira kuti chisokoneze molingana ndi mavoti ake komanso muyezo wake.
Ayi. Kusankhidwa kuyenera kuganizira mphamvu ya kondakitala, mawonekedwe a katundu, mphamvu yamagetsi, malo ozungulira, vuto lamakono, masinthidwe a pole ndi zofunikira zamagetsi.
125A imalumikizidwa ndi mphamvu yaposachedwa ya wosweka, pomwe 15kA imatanthawuza kusokoneza kwake kwakanthawi kochepa. Amalongosola mawonekedwe osiyanasiyana a chipangizo choteteza.
Itha kuganiziridwa ngati mabwalo oyenera ogawa mafakitole pomwe makina amagetsi agwera mkati mwazowunikira zomwe zatchulidwa komanso zofunikira pakuyika.
Ayi. Kuphwanya mphamvu ndi chinthu chimodzi chokha chosankha. Mphamvu yamagetsi, yovotera pano, mawonekedwe aulendo, kulumikizana kwa kondakitala, masinthidwe a ma pole ndi mikhalidwe yoyika ziyenera kuyesedwanso.
Maadiresi oteteza matenthedwe amapitilirabe kuchulukirachulukira, pomwe chitetezo cha maginito chimayankha mwachangu kuzovuta zomwe zikuchitika monga mabwalo amfupi.
Zambiri za Shanghai DaDa Electric zofalitsa za DAB7-125 zimati ma chingwe ake akulu ndi oyenera zingwe zamkuwa ndi aluminiyamu mpaka 35mm². Makonzedwe enieni a kondakitala ayenera kutsimikiziridwa nthawi zonse ndi zolemba zamakono musanayike.
Ogula akuyenera kupempha zidziwitso zaukadaulo, milingo yoyenera, ma voliyumu ovotera, kuchuluka kwapaulendo, mawonekedwe aulendo, zojambula zowoneka bwino, zidziwitso zakuthengo, ziphaso ndi ma phukusi ogwirizana ndi msika komwe akupita.
Malingaliro Omaliza
125 15KA Miniature Circuit Breaker imayang'anira kuphatikiza kwapadera kwa zofunikira: kuchuluka kwaposachedwa komanso kuthekera kosokoneza kadulidwe kakang'ono. Kwa mainjiniya ndi magulu ogula, kumvetsetsa zomwe voteji iliyonse imayimira ndikofunikira kuti mupange chisankho choyenera chaukadaulo.
Mfundo zofunika kwambiri zimapitirira kuposa chiwerengero cha "125A" ndi "15kA". Kuunikira kwathunthu kuyenera kuphatikizira ma voliyumu ovotera, mphamvu yamagetsi, mawonekedwe aulendo, masinthidwe a ma pole, kugwirizana kwa kondakitala, miyezo yoyenera, malo oyikapo ndi kukula kwake.
Mndandanda wa DAB7-125 wochokera ku Shanghai DaDa Electric Co., Ltd. umaphatikiza chitetezo chamakono ndi matenthedwe opangira maginito, mapangidwe amakono, ma terminals akuluakulu a chingwe ndi kusweka kofalitsidwa mpaka 15kA. Makhalidwewa amachititsa kuti mankhwalawa agwirizane ndi ntchito zosiyanasiyana zogawa mafakitale ndi zamalonda pamene akugwirizana bwino ndi magetsi.
Pangani Njira Yodalirika Yachitetezo
Mukuyang'ana 125 15KA Miniature Circuit Breaker yogawa mafakitale, machitidwe amagetsi amalonda, mapanelo amagetsi kapena ntchito za OEM?Malingaliro a kampani Shanghai DaDa Electric Co., Ltd.ikhoza kukupatsani zambiri zamalonda ndi chithandizo chaukadaulo pazofunikira zanu.
Gawani zomwe mwavotera pano, mphamvu yamagetsi, masinthidwe a pole, kusweka kofunikira komanso momwe mungagwiritsire ntchito ndi gulu lathu. Pamatchulidwe azinthu, kufunsana ndi projekiti kapena zogula zambiri,Lumikizanani nafekukambirana njira yoyenera yotetezera dera.
