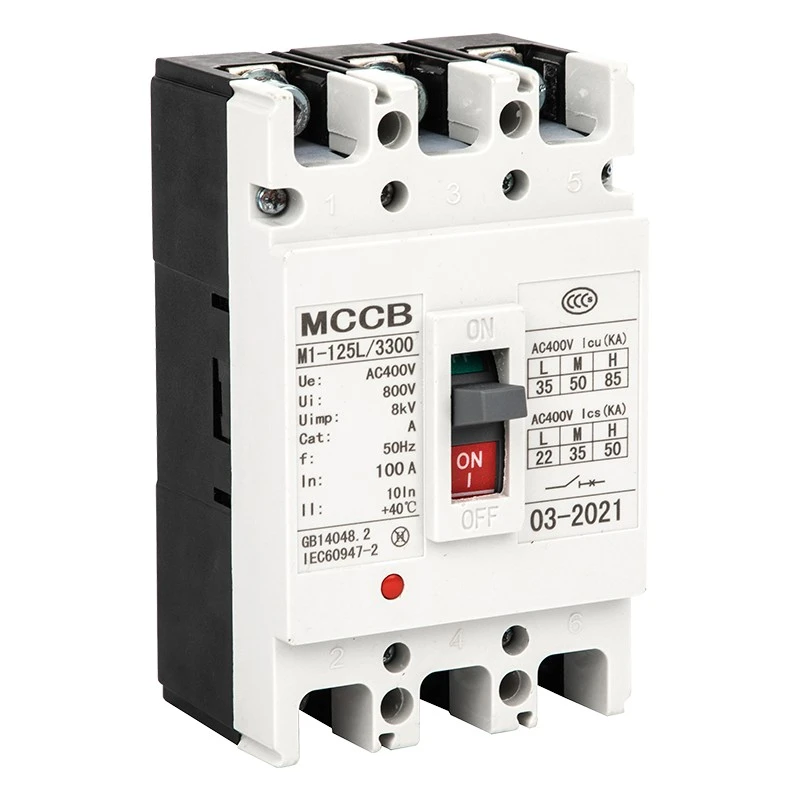

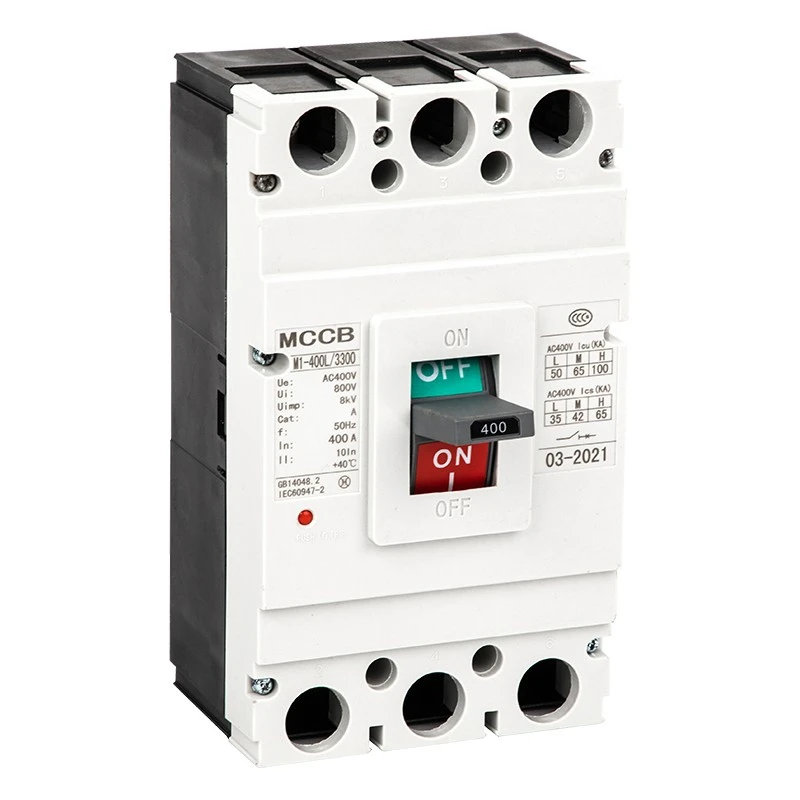

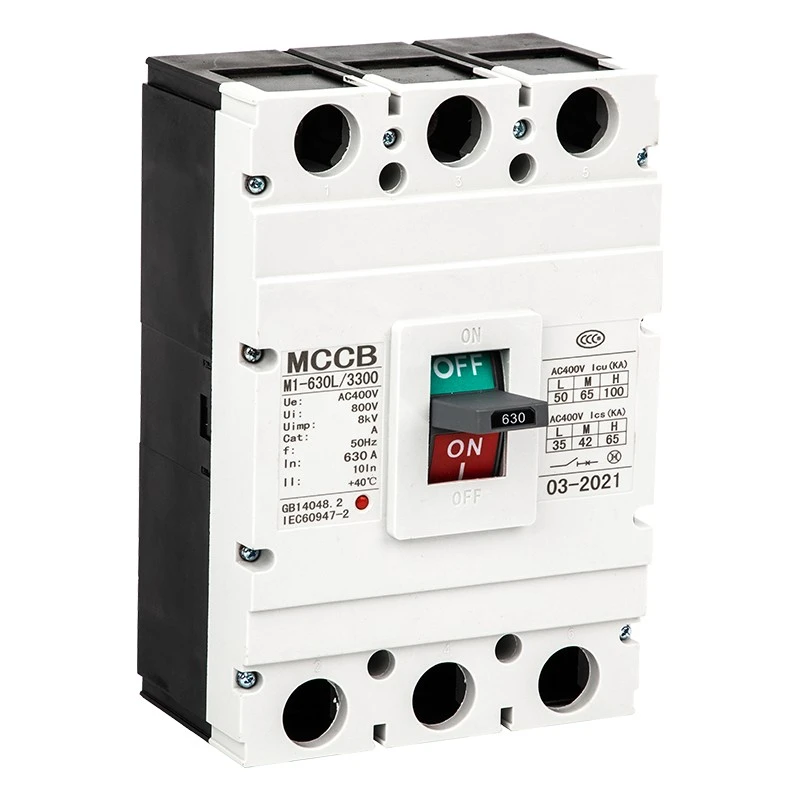

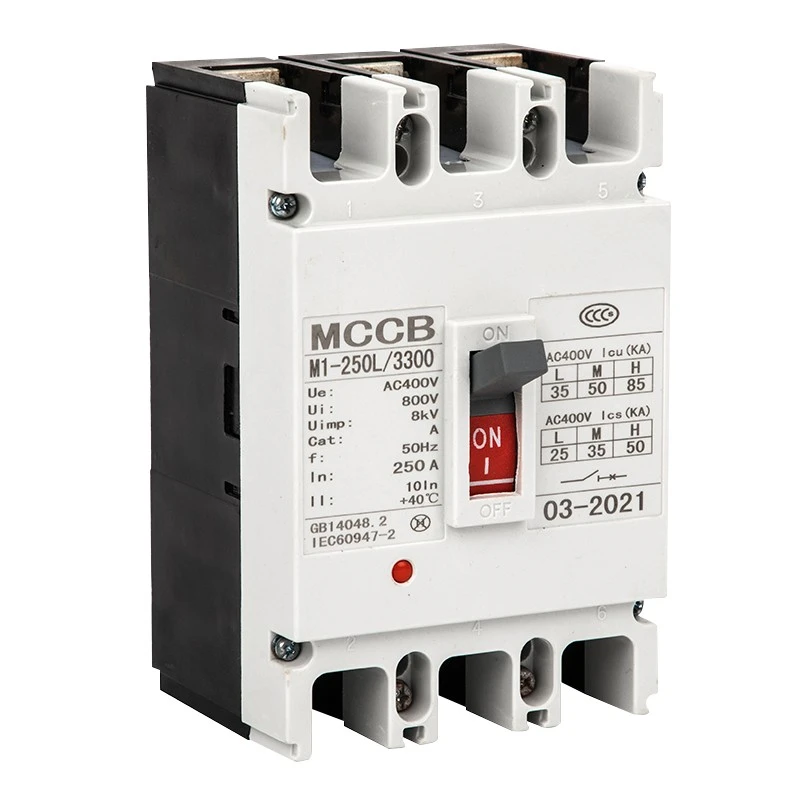

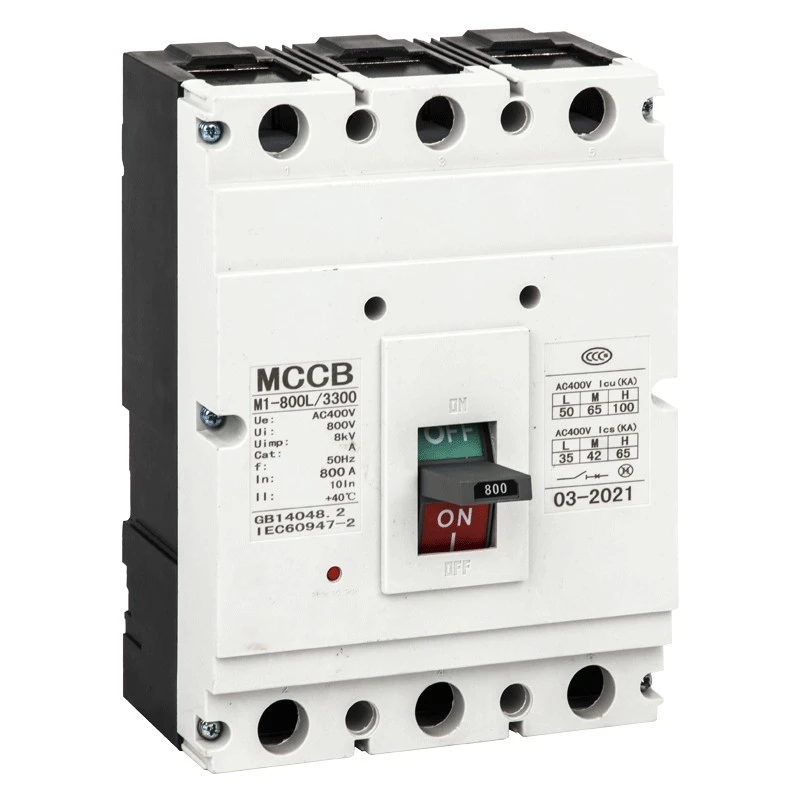

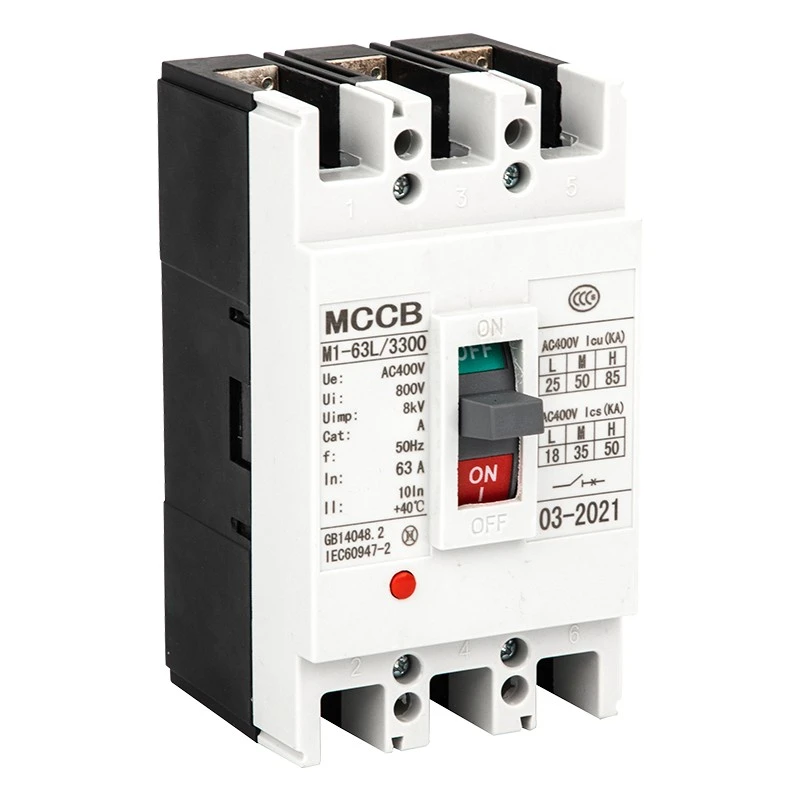

CM1 Molded Case Circuit Breaker
Model:DAM2 (CM1) Series
CDADA CM1 Molded Case Circuit Breaker (MCCB) iyi idapangidwira kugula zinthu zambiri, yokhala ndi satifiketi ya IEC60947-2 komanso magwiridwe antchito okhazikika pamakina amagetsi amagetsi. CM1 MCCB imagwiritsa ntchito mawonekedwe amphamvu kwambiri komanso njira yodalirika yodutsamo, yosavuta kukhazikitsa ndi kukonza. Zimaphatikiza chitetezo chanzeru ndi mapangidwe olimba, kuonetsetsa moyo wautali wautumiki pakugawa mphamvu ndi ntchito zolemera zamafakitale.
Mndandanda wa DAM2 (CM1) uwu wa CM1 Molded Case Circuit Breaker ndi chipangizo chodzitetezera chotsika kwambiri chopangidwa ndi Shanghai DADA Electric Co., Ltd., wopanga ndi ogulitsa odalirika ku China. Ndi voliti ya kutchinjiriza voteji mpaka 800V, oveteredwa ntchito voteji 400V/690V, ndipo oveteredwa panopa kuchokera 63A mpaka 1600A, chimagwiritsidwa ntchito kugawa mphamvu, chitetezo dera, kulamulira galimoto ndi infrequent kusintha.
Mndandandawu umathandizira kuyika kowongoka komanso kopingasa, kumayenderana ndi muyezo wa IEC60947-2, ndipo kumapereka chitetezo chokwanira, chachifupi komanso chocheperako pazida zamagetsi.
Zogulitsa Zamalonda
★ Ovoteledwa kutchinjiriza voteji: 800V; Mphamvu yogwira ntchito: 400V / 690V
★ Mtundu wapano: 63A, 100A, 225A, 400A, 630A, 800A, 1250,1600A
★ Kuphwanya mphamvu: L muyezo, M sing'anga, H mkulu kuswa mtundu
★ Mitundu yotulutsa yamagetsi yamagetsi ndi ma elekitiroma
★ Kuyika koyima / kopingasa, koyenera kugwiritsa ntchito kudzipatula
★ Wide yozungulira kutentha osiyanasiyana: -5℃~+40℃
★ Altitude ≤2000m, digiri ya kuipitsa 3
Mapulogalamu
CDADA CM1 Molded Case Circuit Breaker imagwiritsidwa ntchito kwambiri m'mafakitale ndi machitidwe ogawa magetsi, kuphatikizapo mafakitale, nyumba, malo opangira deta, malo opangira magetsi, zomangamanga, zipangizo zamakina, ndi makabati ogawa magetsi. Amagwiritsidwanso ntchito kuteteza galimoto, kutembenuka kwa dera, ndi magetsi otetezeka pomanga, zitsulo, petrochemical ndi mafakitale ena.
Technical Parameters
★ Miyezo: IEC60947-2, GB14048.2
★ pafupipafupi: AC 50Hz/60Hz
★ Pole: 1P,2P, 3P, 4P
★ Kutulutsidwa: Thermal-magnetic (kawiri), electromagnetic (nthawi yomweyo)
★ Kukhazikitsa nthawi yomweyo: Mtundu wogawa 10In±20%; Mtundu wamagalimoto 12In± 20%
★ Kuyika: Mawaya akutsogolo, mawaya akumbuyo, mtundu wa pulagi
★ Ntchito: Buku, makina opangira magetsi
|
Chitsanzo |
Pole |
Zovoteledwa panopa (A) |
Adavoteledwa ogwira ntchito voteji (V) |
Adavoteledwa kutsekereza voteji (V) |
Idavotera mphamvu zazifupi kwambiri zosweka (Icu) |
Flashover mtunda (mm) |
||
|
Kuyesa magetsi (V) |
Icu (kA) |
Ics (kA) |
||||||
|
DAM2L-63 |
3 |
10, 16, 20, 25, 32, 40, 50, 63 |
400 |
500 |
400 × 1.10 |
25 |
18 |
0 |
|
DAM2M-63 |
3, 4 |
50 |
35 |
|||||
|
DAM2L-100 |
3, 4 |
16, 20, 25, 32, 40, 50, 63, 80, 100 |
400 |
800 |
30 |
22 |
≤50 |
|
|
DAM2M-100 |
2, 3, 4 |
50 |
35 |
|||||
|
DAM2H-100 |
3 |
85 |
50 |
|||||
|
DAM2L-100 |
3, 4 |
690 |
10 |
5 |
||||
|
DAM2M-100 |
2, 3, 4 |
20 |
10 |
|||||
|
Chithunzi cha DAM2L-225 |
3, 4 |
100, 125, 140, 160, 180, 200, 225 |
400 |
800 |
35 |
25 |
||
|
Chithunzi cha DAM2M-225 |
2, 3, 4 |
50 |
35 |
|||||
|
Chithunzi cha DAM2H-225 |
3 |
85 |
50 |
|||||
|
Chithunzi cha DAM2L-225 |
3, 4 |
690 |
10 |
5 |
||||
|
Chithunzi cha DAM2M-225 |
2, 3, 4 |
20 |
10 |
|||||
|
Chithunzi cha DAM2L-400 |
3 |
225, 250, 315, 350,400 |
400 |
800 |
50 |
35 |
≤100 |
|
|
DAM2M-400 |
3, 4 |
65 |
42 |
|||||
|
DAM2H-400 |
3 |
100 |
65 |
|||||
|
Chithunzi cha DAM2L-400 |
3 |
690 |
15 |
8 |
||||
|
DAM2M-400 |
3, 4 |
20 |
10 |
|||||
|
Chithunzi cha DAM2L-630 |
3 |
400, 500, 630 |
400 |
800 |
50 |
35 |
||
|
DAM2M-630 |
3, 4 |
65 |
42 |
|||||
|
Chithunzi cha DAM2H-630 |
3 |
100 |
65 |
|||||
|
Chithunzi cha DAM2L-630 |
3 |
6910 |
15 |
8 |
||||
|
DAM2M-630 |
3, 4 |
20 |
10 |
|||||
|
DAM2M-800 |
3 |
630, 700,800 |
400 |
800 |
75 |
50 |
||
|
DAM2H-800 |
3 |
100 |
65 |
|||||
|
DAM2M-800 |
3 |
4690 |
30 |
15 |
||||
|
DAM2-1250 |
3 |
800, 1000, 1250 |
400 |
800 |
85 |
42 |
||
|
DAM2-1250 |
3 |
690 |
25 |
12.5 |
||||
Miyeso ya Outline & Installation
CM1 MCCB yathu imapereka deta yathunthu yamitundu ya 63A-1600A, kuphatikiza mawaya akutsogolo, mawaya akumbuyo ndi mtundu wa pulagi. Makulidwe osiyanasiyana a chimango (63/100/225/400/630/800/1250/1600) afanana ndi miyeso ya H, H1, H2 pakuyika kokhazikika kwa nduna. Kutalika kwa makina ogwiritsira ntchito pamanja ndi magetsi kumakhazikitsidwanso kuti azitha kulumikizana mosavuta.
Chalk & Ntchito
Zida Zamkati
★ Kutulutsa kwa Shunt: 70% -110% magetsi ovotera pakuyenda modalirika
★ Kutulutsa kwamagetsi: 35% -70% kutsika kwamagetsi kuti zitetezedwe zokha
★ Wothandizira & kukhudzana ndi alamu: Ndemanga za siginecha ndi alamu yolakwika
★ Kutulutsa koperekedwa kwa mita yolipira kale: Kuchedwetsa kuyenda 0.5–2s
Zida Zakunja
★ Makina ogwiritsira ntchito pamanja
★ Makina ogwiritsira ntchito magetsi (motor).
★ Zolekanitsa magawo, zomangira, zida za mabasi
Kuwongolera Kwabwino

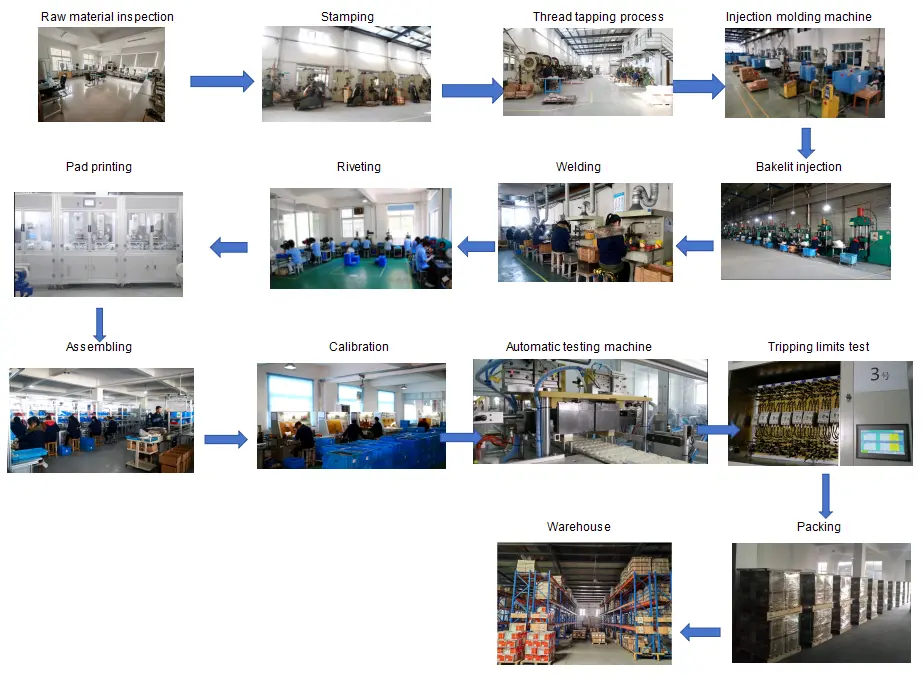

Kuyang'anira zinthu zopangira → Kukonza zopangira → Mzere wa msonkhano → Mayeso amtundu waulendo → Mayeso okwera kutentha → Mayeso afupipafupi → Mayeso okalamba → Mawonekedwe & kukula kwake → Kuyika → Kuyendera komaliza musanatumize

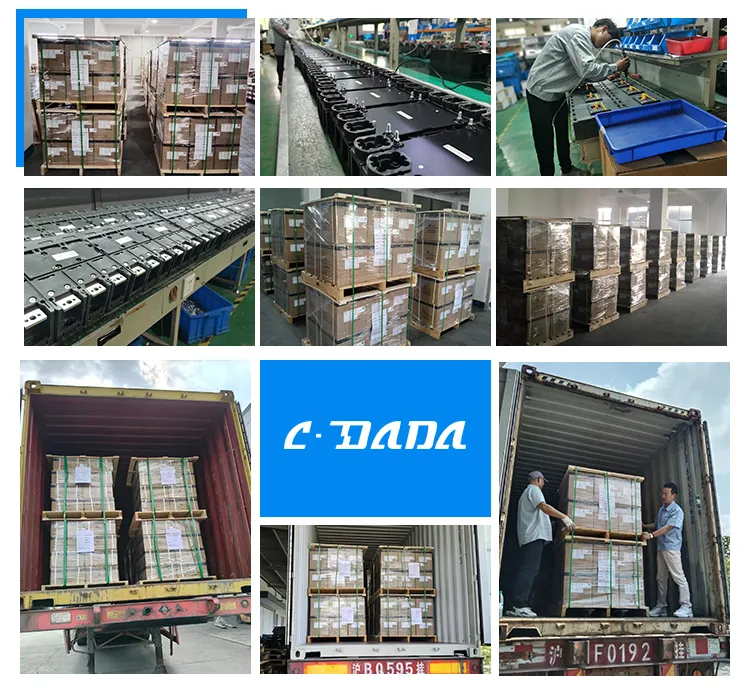

Kupaka & Kutumiza
★ katoni yokhazikika yotumiza kunja + pallet yamatabwa kuti muyende bwino
★ Label: chitsanzo, panopa, mtengo, kuchuluka, satifiketi
★ Yoyenera panyanja, mpweya ndi kayendedwe ka nthaka
Zitsimikizo
IEC60947-2, GB14048.2, CE, CB, ROHS ndi zovomerezeka zina zapadziko lonse lapansi.

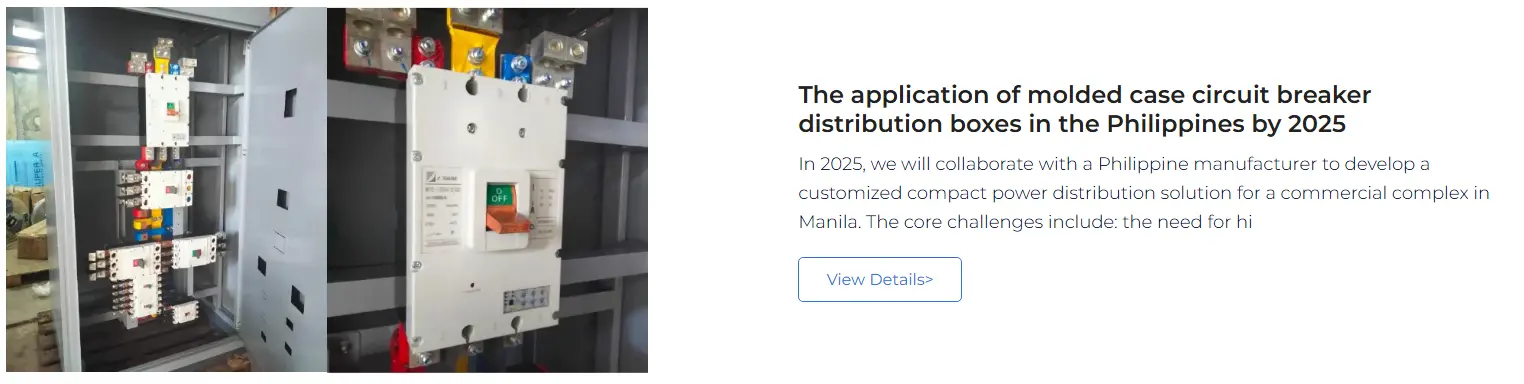

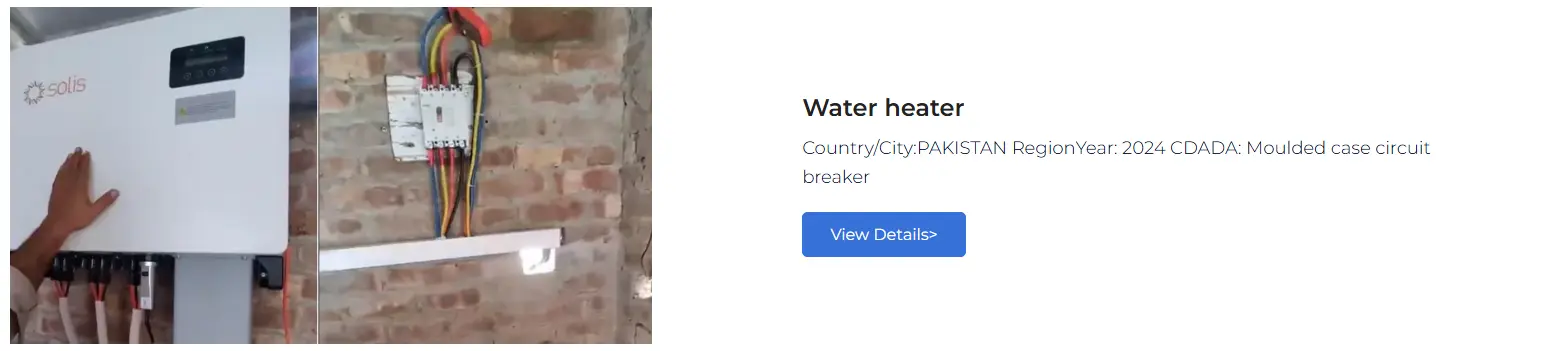

Milandu Yogwirizana ndi Makasitomala
CDADA DAM2 mndandanda wa MCCB waperekedwa kwa makasitomala apadziko lonse lapansi, kuphatikiza ophatikiza magetsi, opanga zida zamafakitale, mafakitale osinthira, makontrakitala omanga ndi mtundu wa OEM ku Europe, Southeast Asia, Middle East, Africa ndi South America. Timapereka zinthu zambiri zokhazikika komanso zothetsera makonda kwa mabwenzi anthawi yayitali.
