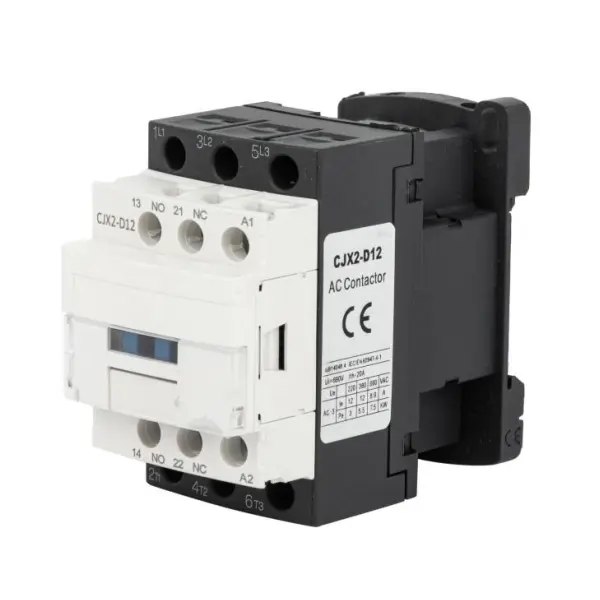

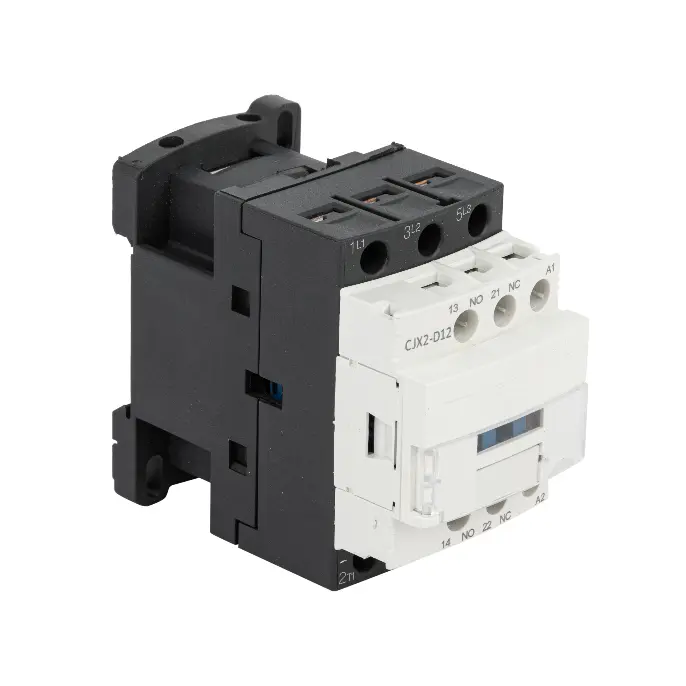

D Contactor

Model:LC1-D Series

Shanghai DADA Electric ndi wopanga odalirika ndipo tili ndi zopangidwa zathu, CDADA. D Contactor wathu (LC1-D Series) ndi IEC 60947-4-1 yovomerezeka, 3P / 4P, mpaka 620A, AC-3 / AC-4 yovomerezeka. Zosankha zamagetsi a coil. Tikupangira izi kuti tiziwongolera magalimoto & makina opangira mafakitale, lemberani kuti mupeze mtengo.

Tumizani Kufunsira

Mafotokozedwe Akatundu

Kuwongolera kwa injini yodalirika yamagalimoto ndi kusintha kwamagetsi ndi CDADA LC1-D Series D Contactor cholumikizira chapamwamba cha AC chopangidwa ndi Shanghai DADA Electric CO., LTD kuti chikwaniritse miyezo ya IEC/EN 60947-4-1. Zopangidwira ntchito zamafakitale, zamalonda, ndi zomangamanga, mndandanda wa LC1-D umathandizira masinthidwe a 3-pole kapena 4-pole okhala ndi mafunde ovoteledwa kuchokera ku 9A mpaka 95A (mpaka 620A m'mitundu yolemetsa) ndipo amawongolera ma motors a 3-phase-squirrel-cage mpaka 45kW (pa 13V-AC4) .

Zokhala ndi ma 1NO + 1NC olumikizira othandizira, amalumikizana mosadukiza ndi ma relay odzaza ndi matenthedwe kuti atetezedwe kwathunthu. Ndi ma AC kapena DC ma coil options (24V-600V), AC-3 ndi AC-4 kagwiritsidwe ntchito, komanso kapangidwe kolimba kovotera 690V, CDADA D Contactor imapereka magwiridwe antchito odalirika pamayimidwe oyambira, makina otumizira, mapampu, ma compressor, ndi mayunitsi a HVAC - ngakhale m'malo ofunikira 40m ndi 0m ° C mpaka 0.

D Contactor

Zofunika Kwambiri

Mndandanda: D Contactor

Mtundu: CDADA | Wopanga: Shanghai DADA Electric CO., LTD

Muyezo: IEC/EN 60947-4-1

Chitsimikizo: CE

Mitengo: 3P kapena 4P (zosankha)

Idavoteredwa Panopa (AC-3): 9A - 95A (mpaka 620A muzambiri)

Kuwongolera Mphamvu zamagalimoto (AC-3):

380/415V: 4kW – 45kW

660/690V: mpaka 45kW

Magulu Kagwiritsidwe: AC-3 (ma motors agologolo), AC-4 (plugging & inching)

Mphamvu ya Insulation Voltage: 690V AC

Kutentha kozungulira: -5 ° C mpaka +40 ° C

Kutalika: ≤ 2000m

Kukwera: Ndege yoyima ± 5 °, Gulu Lokwera III

Othandizira Othandizira: 1NO + 1NC (muyezo pamitundu yonse)

Zosankha za Coil:

AC Coils: 24V, 36V, 48V, 110V, 127V, 220V, 240V, 380V, 415V, 440V, 480V, 500V, 600V

Mapiritsi a DC: 24V, 36V, 48V, 110V, 220V

Tsamba la data laukadaulo

Zinthu		Chitsanzo	Chithunzi cha LC1-D09	Chithunzi cha LC1-D12	Chithunzi cha LC1-D18	Chithunzi cha LC1-D25	Chithunzi cha LC1-D32
Pole			3/4	3/4	3/4	3/4	3/4
Wothandizira Wothandizira			1NO+1NC	1NO+1NC	1NO+1NC	1NO+1NC	1NO+1NC
Adavoteledwa ndi kutentha kwanthawi zonse (A) AC-1			20	20	30	40	50
Adavotera ntchito panopa (A)	380/400V	AC-1 AC-4	9	12	18	25	32
	380/400V	AC-1 AC-4	3.5	5	7.7	8.5	12
	660/690V	AC-3 AC-4	6.6	8.9	12	18	21
	660/690V	AC-3 AC-4	1.5	2	3.8	4.4	7.5
Mphamvu yamagetsi yamagetsi (V AC)			690	690	690	690	690
Mphamvu yolamulidwa 3-gawo galimoto ya khola (AC-3)	kW	220/230V AC 380/415V AC 660/690V AC	2.2	3	4	5.5	7.5
			4	5.5	7.5	11	15
			5.5	7.5	10	15	18.5
AC koyilo (V)			24,36,48,110,127,220,240,380,415,440,480,500,600
DC koyilo (V)			24,36,48,110,220

Zinthu		Chitsanzo	Chithunzi cha LC1-D40	Chithunzi cha LC1-D50	Chithunzi cha LC1-D65	Chithunzi cha LC1-D80	Chithunzi cha LC1-D95
Pole			3/4	3/4	3/4	3/4	3/4
Mphaka Wothandizira Wozungulira:AC-15,Ue=4 15V le=0.95A Ith=10A			1NO+1NC	1NO+1NC	1NO+1NC	1NO+1NC	1NO+1NC
Adavoteledwa ndi kutentha kwanthawi zonse (A) AC-1			60	80	80	110	110
Adavotera ntchito panopa (A)	380/400V	AC-3 AC-4	40	50	65	80	95
	380/400V	AC-3 AC-4	18.5	24	28	37	44
	660/690V	AC-3 AC-4	34	39	42	49	49
	660/690V	AC-3 AC-4	9	12	14	17.3	21.3
Mphamvu yamagetsi yamagetsi (V AC)			690	690	690	690	690
Mphamvu yolamulidwa 3-gawo galimoto ya khola (AC-3)	KW	220/230V AC 380/415V AC 660/690V AC	11	15	18.5	22	25
			18.5	22	30	37	45
			30	37	37	45	45
AC koyilo (V)			24,36,48,110,127,220,240,380,415,440,480,500,600
DC koyilo (V)			24,36,48,110,220

Zinthu			Chitsanzo		Chithunzi cha LC1-D115		Chithunzi cha LC1-D150		Chithunzi cha LC1-D170		Chithunzi cha LC1-D205		Chithunzi cha LC1-D245
Pole					3		3		3		3/4		3/4
Adavoteledwa ndi kutentha kwanthawi zonse (A) AC-1					200		200		200		275		280
Adavotera ntchito panopa (A)	380/400V		AC-3 AC-4		115		150		170		205		245
					50		65		70		75		85
	660/690V		AC-3 AC-4		70		90		100		108		115
					25		32		35		38		40
Mphamvu yamagetsi yamagetsi (V AC)					690		690		690		690		690
Mphamvu yolamulidwa 3-gawo galimoto ya khola (AC-3)	kW		380/415V AC 660/690V AC		55		75		75		90		110
					80		100		100		110		140
AC koyilo (V)					110,127,220,240,380,415,440,480,500,600
Zinthu				Chitsanzo		Chithunzi cha LC1-D300		Chithunzi cha LC1-D410		Chithunzi cha LC1-D475		Chithunzi cha LC1-D620
Pole						3/4		3/4		3/4		3/4
Adavoteledwa ndi kutentha kwanthawi zonse (A) AC-1						360		430		580		850
Adavotera ntchito panopa (A)		380/400V		AC-3 AC-4		300		410		475		620
						124		150		185		188
		660/690V		AC-3 AC-4		190		235		290		360
						60		72		85		170
Mphamvu yamagetsi yamagetsi (V AC)						690		690		690		690
Mphamvu yoyendetsedwa 3-gawo galimoto ya khola (AC-3)		kW		380/415V AC 660/690V AC		160		200		250		335
						220		280		330		450
AC koyilo (V)						110, 127,220,240,380,415,440,480,500,600

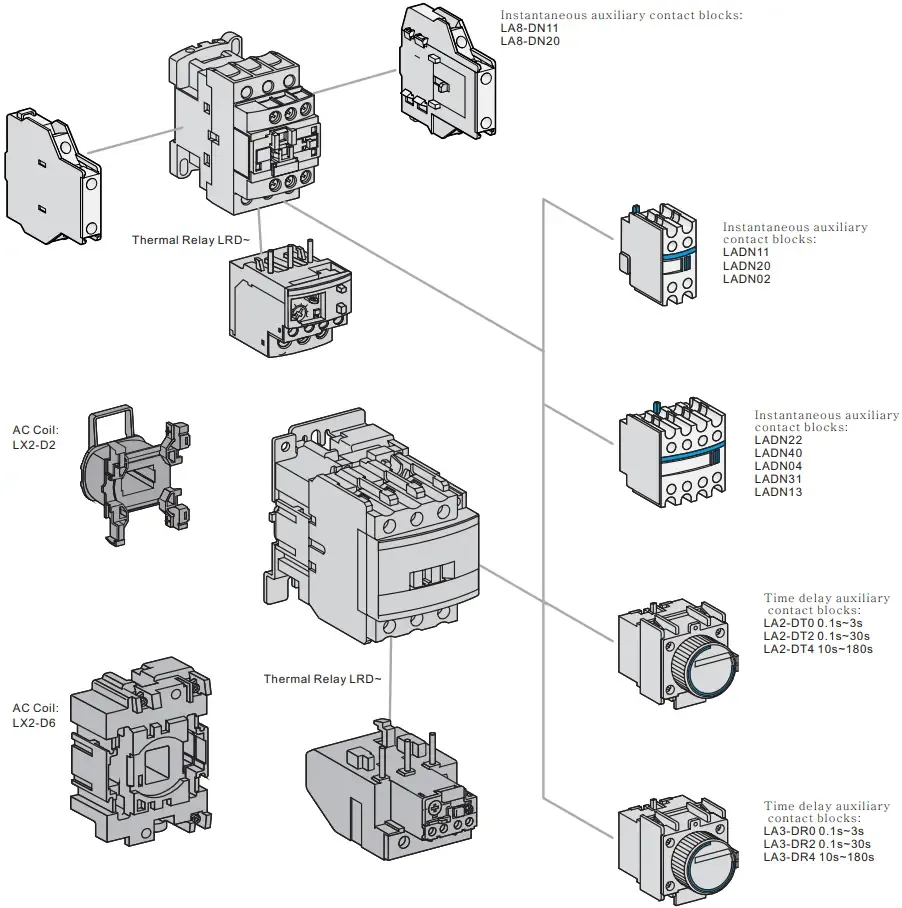

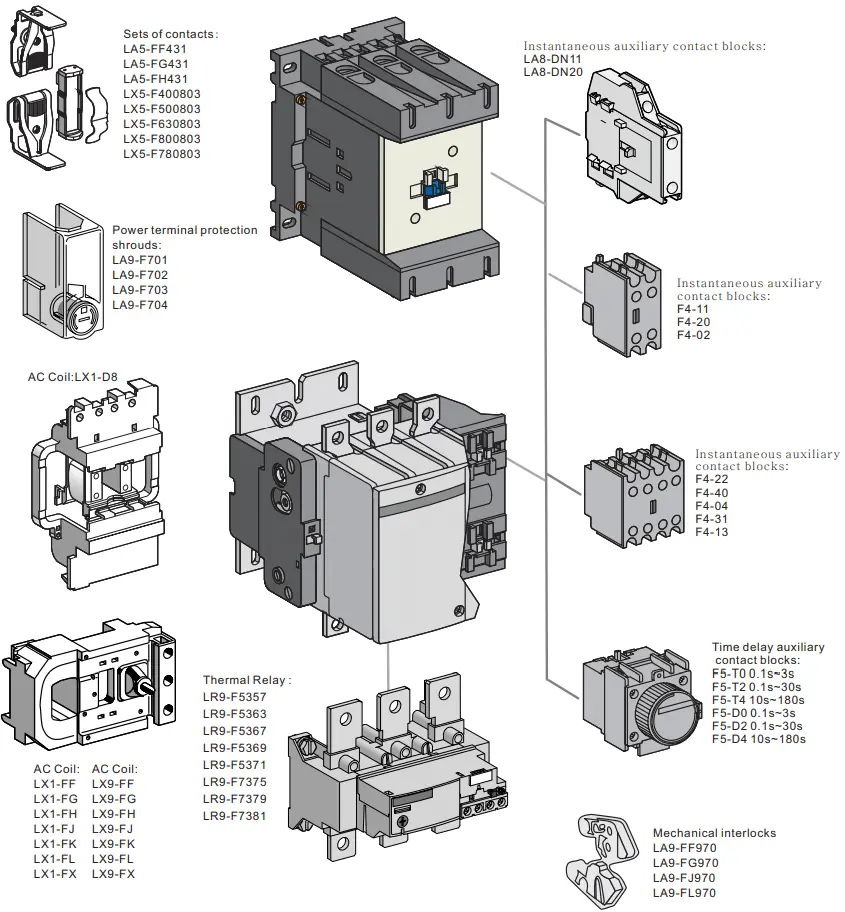

Zida

D Contactor

Chifukwa Sankhani CDADA D Contactor?

★ Zowona za IEC Kutsatira

TS EN 60947-4-1 IEC / EN 60947-4-1 - Kuwonetsetsa kuvomerezedwa ndi kugwirizana kwapadziko lonse lapansi

★ Full Motor Control Solution

Gwirizanitsani ndi ma CDADA owonjezera amafuta owonjezera pamisonkhano yathunthu yoyambira ma mota-kudzaza mochulukira + kagawo kakang'ono + kudzipatula.

★ Wide Voltage kusinthasintha

Sankhani kuchokera pa 13 AC ndi 5 DC ma coil voltages—oyenera pulojekiti yapadziko lonse kapena mapanelo osakanikirana amagetsi.

★ Wamphamvu Pantchito Yolemera

Imathandizira ntchito ya AC-4 (kubwerera pafupipafupi / plugging) - yabwino kwa ma cranes, ma elevator, ndi ma conveyor.

★ Pulagi-ndi-Play Integration

Magulu othandizira a 1NO+1NC amathandizira kulumikizana kosavuta, kusaina, kapena mayankho a PLC.

★ Kudalirika kwa Industrial-Grade

Kuyesedwa kwa kupirira kwamphamvu kwamagetsi, kukana kutsika pang'ono, ndi kuponderezedwa kokhazikika kwa arc-kuchepetsa nthawi yopuma.

★ Ubwino wathu waukulu ndi: 1) Kukwaniritsa ziphaso zapadziko lonse lapansi, 2) Kuthekera kwamphamvu kwa OEM / ODM, 3) Chiyerekezo chamtengo wapatali, 4) Kudalirika kwakukulu kopanga, 5) Kudziwa zambiri zakunja.

D Contactor

★ Zogulitsa zathu zimatumizidwa bwino ku Southeast Asia, Middle East, South America, Africa, Europe, ndi mayiko a CIS, ndikuyang'ana kwambiri misika ya Belt ndi Road.

D Contactor

Ntchito Zofananira

D Contactor Zoyambira Magalimoto: Mapampu, mafani, ma compressor, zosakaniza

D Contactor HVAC Systems: Chiller & blower control

D Contactor Industrial Automation: mizere yolumikizira, makina onyamula

D Contactor Kuwongolera Nyumba: Kuwongolera ma elevator, mabanki owunikira

D Contactor Mphamvu & Madzi: Kusamalira madzi otayira, njira zothirira

Mafunso Ofunsidwa Kawirikawiri

Q1: Kodi "D Contactor" amatanthauza chiyani?

A1: "D" amatanthauza mayina a mndandanda (LC1-D) omwe amagwiritsidwa ntchito padziko lonse lapansi papulatifomu yolumikizana ndi AC yokhazikika. Si gulu laukadaulo - koma lodziwika bwino muzomangamanga zamapulogalamu chifukwa chogwirizana ndi zida monga ma relay ochulukirapo komanso zolumikizirana zamakina.

Q2: Kodi pali kusiyana kotani pakati pa ntchito ya AC-3 ndi AC-4?

A2:

● AC-3: Kuyamba / kuyimitsa kwachibadwa kwa ma motors a gologolo (monga mapampu, mafani). Kuchepetsa nkhawa.

● AC-4: Kutsegula pafupipafupi, kulowetsa, kapena kubwerera kumbuyo (monga ma cranes, hoists). Kukwezeka kwamagetsi kwamphamvu → kumafuna kulumikizana kwamphamvu kwambiri. → CDADA LC1-D idavotera onse awiri, ndikupangitsa kuti ikhale yosunthika.

Q3: Kodi ine ntchito contactor popanda mochulukira kulandirana?

A3: Osavomerezeka pazambiri zamagalimoto. The contactor yekha masiwichi mphamvu-sikuteteza ku overloads. Gwirizanitsani nthawi zonse ndi cholumikizira chotenthetsera kapena chamagetsi chachitetezo chamagalimoto.

Q4: Kodi mitundu ya 4-pole ilipo?

a4: ayi! Mitundu yonse ya LC1-D imathandizira masinthidwe a 3P kapena 4P-oyenera pakusintha kosalowerera ndale kapena ma waya a 4.

Q5: N'chifukwa kusankha CDADA pa zina D-mndandanda contactors?

A5: CDADA imapereka:

● Kutsata IEC 60947-4-1 yeniyeni ndi malipoti oyesa

● Mphamvu ya koyilo yokulirapo (kuphatikiza 415V, 480V, 600V zotumiza kunja)

● Ubwino wokhazikika wokhala ndi zolumikizira za silver-alloy ndi ma arc chutes

● Mitengo yogwirizana ndi OEM komanso kusintha kwachitsanzo kwachangu

● Global certifications (CE) ndi zolemba za Chingerezi
