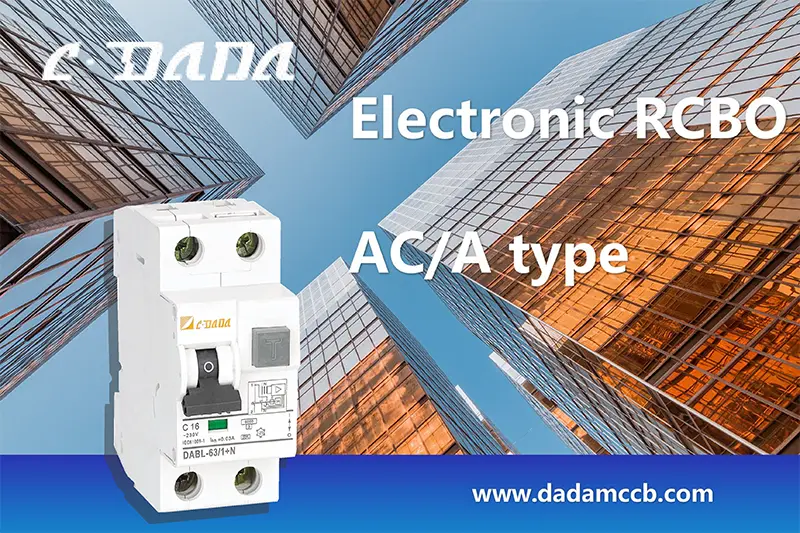

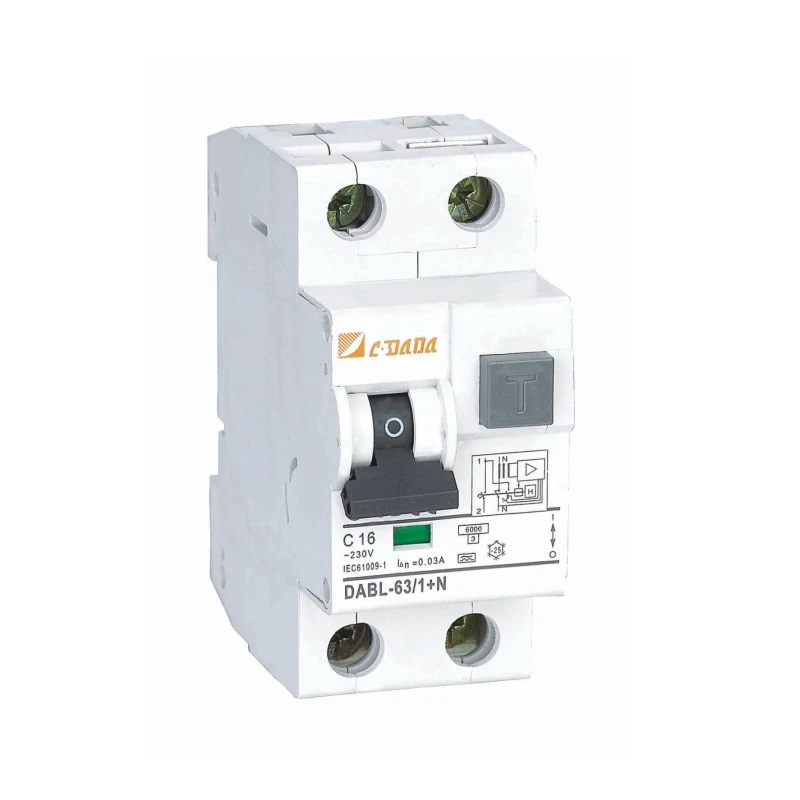

2P 4P Electronic Type RCBO

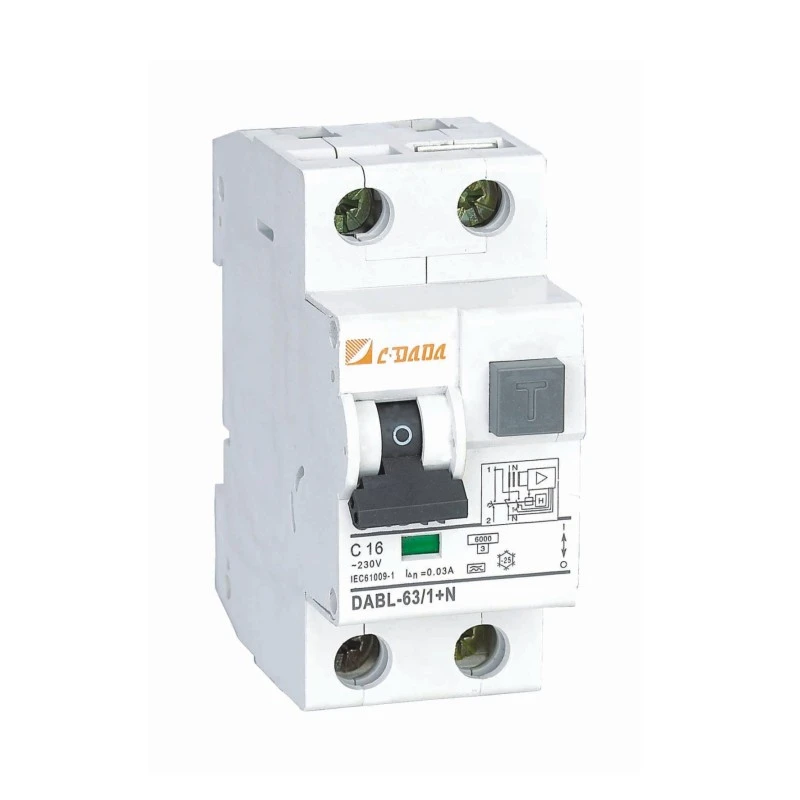

Limbikitsani chitetezo pakuyika kwamagetsi kwamakono ndi CDADA DABL-63 2P 4P Electronic Type RCBO - cholumikizira chanzeru, chotsalira chamakono chokhala ndi chitetezo chopitilira muyeso chopangidwa ndi Shanghai DADA Electric CO., LTD. Zopangidwira 2P (1+N) ndi 4P (3+N), RCBO yamagetsi iyi imapereka chitetezo cha zinayi-imodzi:

Kupewa kugwedezeka kwamagetsi (kudzera pa 30mA yotsalira yapano),

Chitetezo chambiri,

Kusokoneza kwakanthawi kochepa (6kA kuswa mphamvu),

Kuponderezedwa kowonjezereka (kuphatikiza D-class varistor).

Yoyenera pama soketi akunja, kuyatsa kwa garaja, mabwalo akumunsi, ndi zopangira zida zamagetsi, DABL-63 imakumana ndi miyezo ya CE, CB, ndi RoHS ndipo imakhala ndi gawo lamagetsi lamagetsi lozindikira zolakwika kwambiri. Ndi 2-module DIN m'lifupi, chizindikiro cha malo odziyimira pawokha, ndi -25 ° C mpaka + 40 ° C magwiridwe antchito, idamangidwa kuti ikhale yodalirika nyengo zosiyanasiyana komanso malo okhala / malonda.

Zofunika Kwambiri

Chitsanzo: DABL-63 Series

Mtundu: Electronic RCBO (Zotsalira Zatsopano Zomwe Zili ndi Chitetezo Chowonjezera)

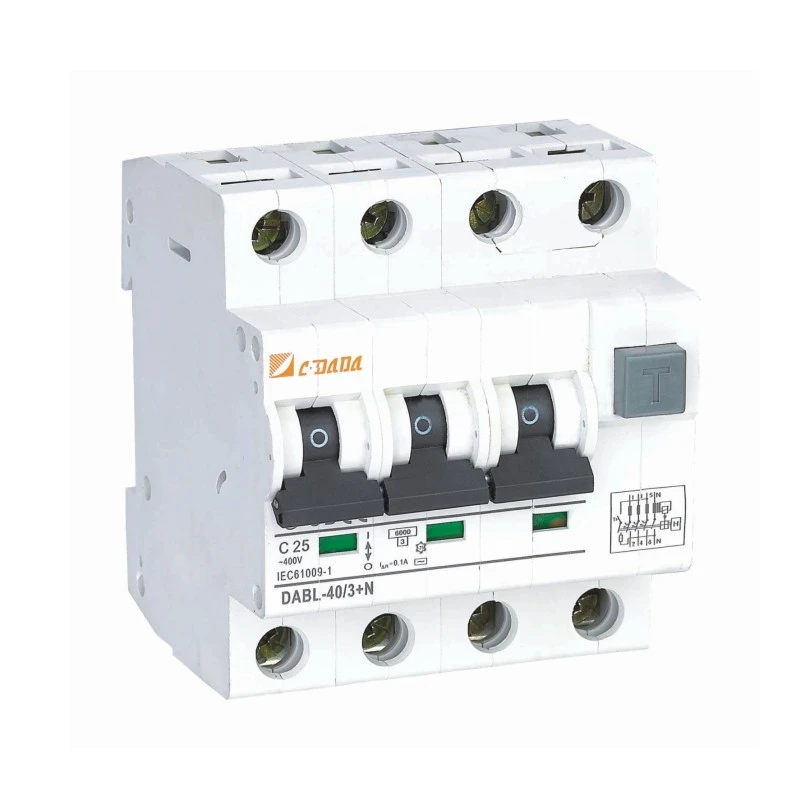

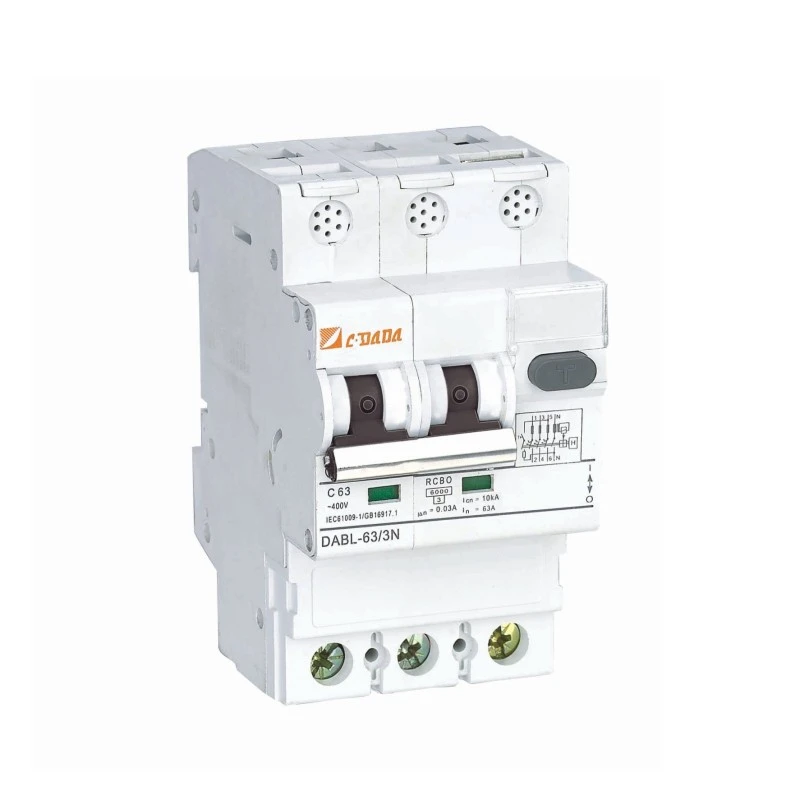

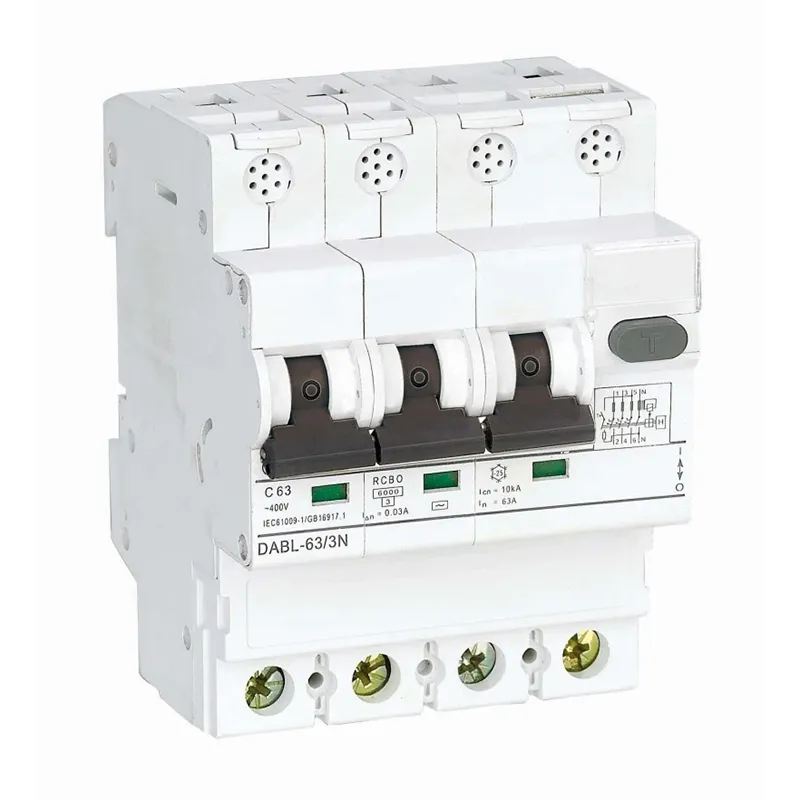

Mitengo: 2P (1+N) kapena 4P (3+N)

Idavoteredwa Panopa (Mu): Nthawi zambiri 6-63A (kutengera nsanja ya DAB7-63)

Residual Sensitivity (I△n): 30mA (muyezo wodzitetezera)

Kuphwanya Mphamvu: 6kA, 10kA

Ntchito za Chitetezo:

Zotsalira (kutayikira)

Kuchuluka (zotentha)

Short circuit (electromagnetic)

Surge overvoltage (kudzera mu D-class varistor)

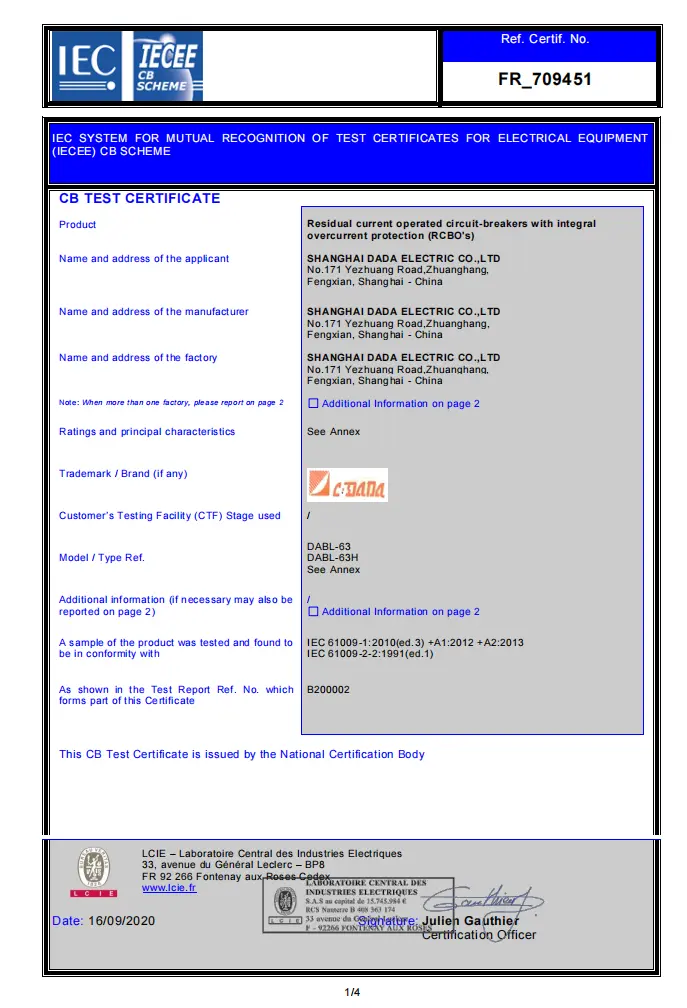

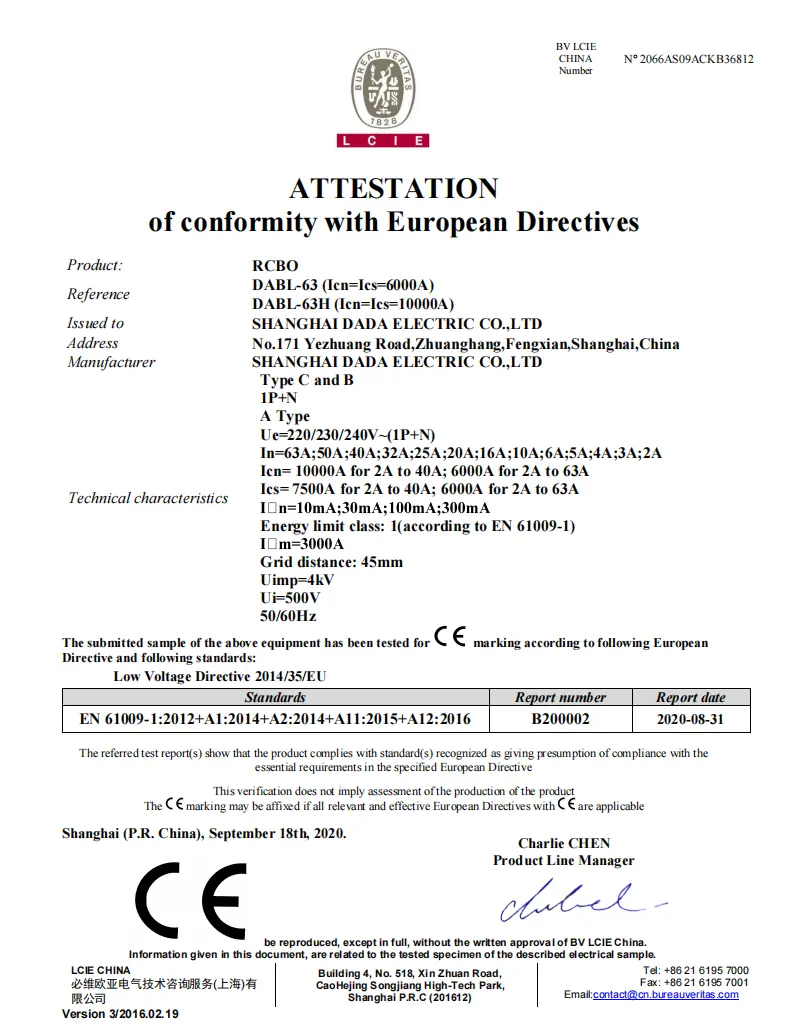

Chitsimikizo: CE, CB, RoHS

Kutentha kwa Ntchito: -25 ° C mpaka +40 ° C

Kuyika: 2-module m'lifupi pa 35mm DIN njanji

Technical Data Sheet

Zofunika Kwambiri:

★ Electronic differential module → kukhudzika kwakukulu & kuyankha mwachangu

★ Chizindikiro chodziyimira pawokha (chikuwonetsa zenizeni ON / OFF / ulendo)

★ batani la "TEST" kuti muwone magwiridwe antchito pamwezi

★ Notched terminal clamps → kutentha kochepa, kugwira mwamphamvu

★ Zomangira zogwirira ntchito (+/-) → kuyika kosavuta, palibe magawo ogwetsedwa

★ Silver-bearing contact alloy → moyo wautali, kukana kutsika

Chifukwa Chiyani Sankhani CDADA Electronic RCBO?

★ Chitetezo cha Zonse-mu-Chimodzi mu Ma module awiri

Imalowa m'malo osiyana ndi MCB + RCCB + woteteza maopaleshoni-kupulumutsa malo, mtengo, ndi zovuta zamawaya.

★ Chitetezo Chowonjezereka ndi Kuponderezedwa kwa Opaleshoni

Dera lophatikizika ndi gawo lamagetsi lachitetezo chosiyana, D-class varistor ndi Integrated circuit breaker ya DAB7-63 mndandanda zimatsimikizira 4 mitundu ya chitetezo: kuchokera ku zotsalira zapano (kutuluka pakali pano), dera lalifupi; kuchuluka komanso kuchuluka kwamagetsi.

★ Mawonekedwe Owona a Mkhalidwe

Mosiyana ndi ophwanya wamba, cholumikizira chodziyimira pawokha chikuwonetsa kukhudzana kwenikweni - ngakhale chogwiriracho chimagwira pamanja.

★ Mapangidwe Osavuta Okhazikitsa

● Kutentha kwakukulu → koyenera kumagalasi osatenthedwa kapena malo otentha otentha

● Malo osakhazikika → zolumikizira zotetezeka, zosakanizidwa pang'ono

● Zomangira pawiri → zimagwira ntchito ndi zida zafulati kapena za Phillips

★ Wotsimikizika Padziko Lonse

Zivomerezo za CE, CB, ndi RoHS zimatsimikizira kutsata ku Europe, Asia, Africa, ndi kupitilira apo - ndizabwino pazogulitsa kunja.

★ Zokwanira Pamalo Owopsa Kwambiri

Amalangizidwa kumalo ogulitsira kunja, malo amvula, magalasi, ndi zipinda zapansi pomwe zoopsa ndi zoopsa zamoto zimakwezedwa.

★ Ndili ndi zaka zambiri zotumizira ku Russia ndi dziko la Europe kuphatikiza ku South America, Europe, Asia, ndi Australia, CDADA yakuphimba!

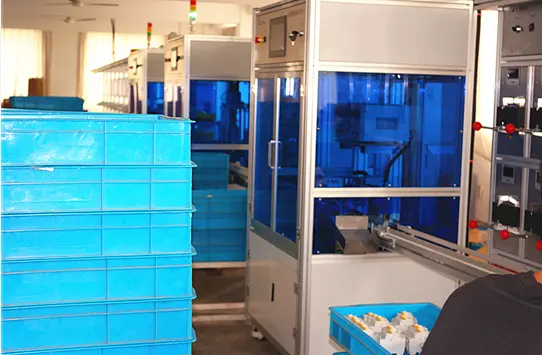

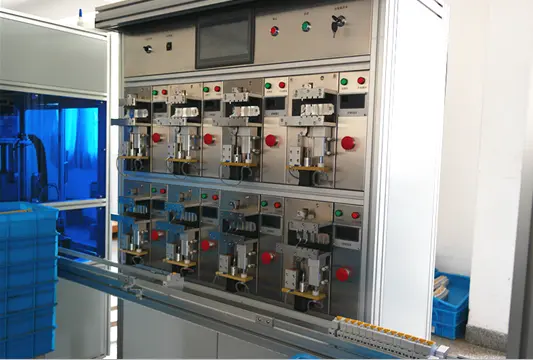

★ Popeza ndi lamulo lathu kuti 100% ayang'ane zinthu zonse zomwe zimachoka pamalo athu, tikhoza kutsimikizira motsimikiza kuti mankhwalawa ndi olondola 100% asanachoke pamalo athu.

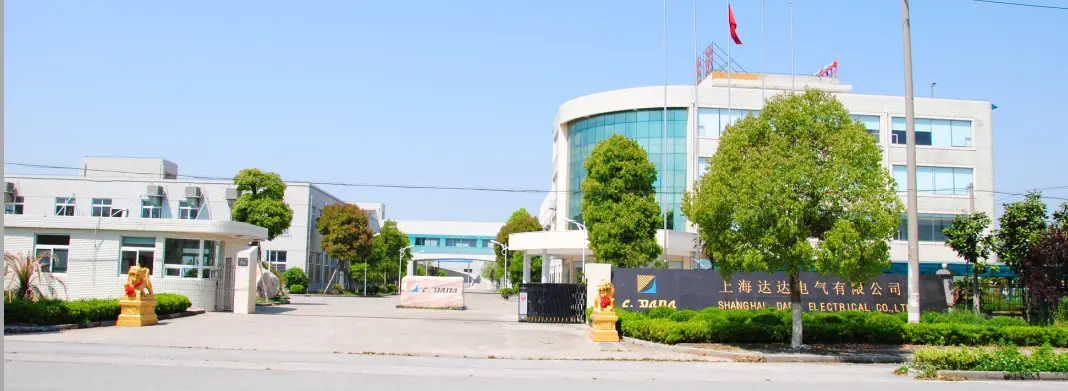

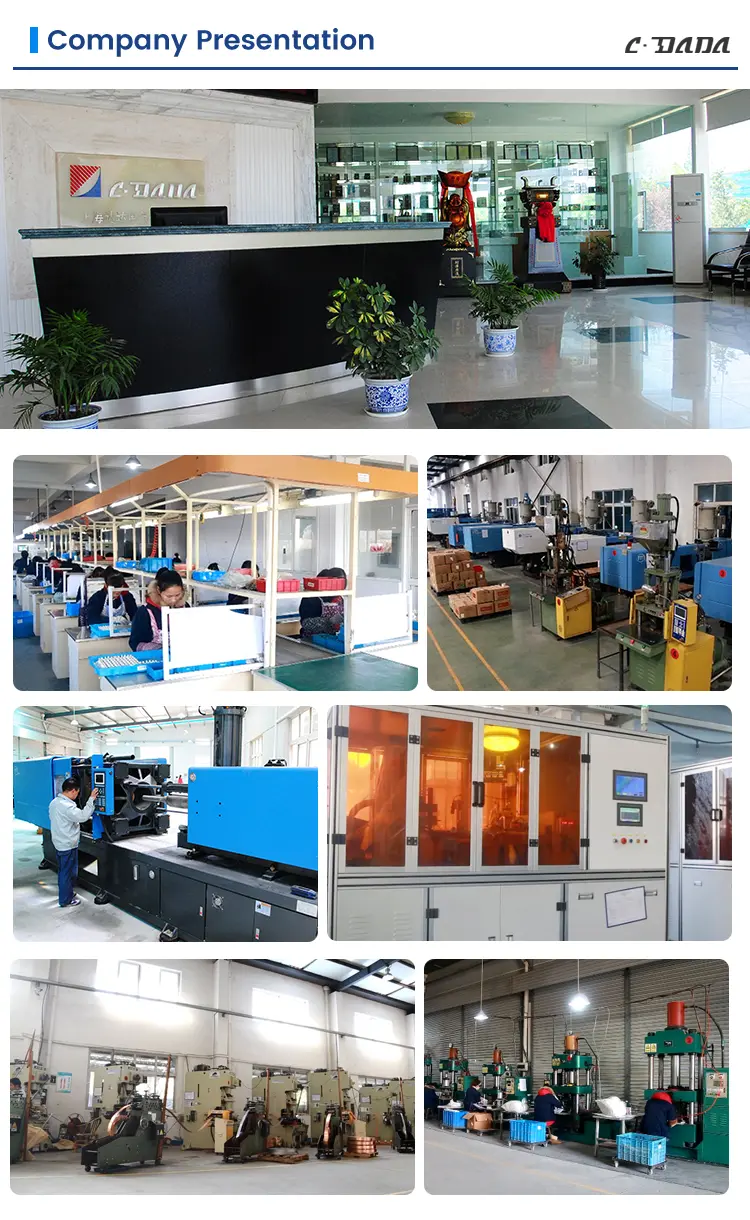

★ Ndife okondwa kuti mutichezera nthawi iliyonse! Iyi ndi njira yokhayo yomwe titha kukhala ndi ulamuliro wathunthu pa nthawi zopanga komanso momwe timagwirira ntchito.

Ntchito Zofananira

Soketi Zakunja: Zazida zam'munda, ma charger a EV, magetsi atchuthi

Kuwunikira kwa Garage & Basement: Malo achinyezi, ozizira

Mayendedwe a Zida: Makina ochapira, ochapira mbale, mafiriji

Mphamvu ya Workshop: Pomwe zida ndi chinyezi zimakhalira limodzi

Mapanelo Ang'onoang'ono Okhalamo: Njira Yophatikizika, yotetezedwa yambiri

Mafunso Ofunsidwa Kawirikawiri (FAQ)

Q1: Kodi pali kusiyana kotani pakati pa RCCB ndi RCBO?

A1: RCCB imangozindikira zotsalira (zotuluka) zapano - sizimateteza kuzinthu zambiri kapena mabwalo amfupi. RCBO (monga DABL-63) imaphatikiza RCCB + MCB mu chipangizo chimodzi-yopereka kutayikira + kulemetsa + chitetezo chozungulira chachifupi.

Q2: Kodi RCBO iyi imatetezadi ku maopaleshoni?

A2: ndi! Zimaphatikizapo ma varistor opangidwa mu D-class omwe amapondereza kuwonjezereka kwapang'onopang'ono (mwachitsanzo, kuchokera ku mphezi kapena kusintha kwa mafunde) - chinthu chosowa kwambiri mu RCBOs wamba.

Q3: Chifukwa chiyani musankhe RCBO yamagetsi pamagetsi amagetsi? A3:

● Ma RCBO amagetsi amapereka kukhudzika kwakukulu, kukula kochepa, ndipo amatha kuphatikiza ntchito zowonjezera (monga chitetezo cha mawotchi).

● Amafuna mphamvu yamagetsi kuti agwire ntchito—choncho si bwino ngati kusalowerera ndale sikudalilika.

● Mitundu yamagetsi imagwira ntchito pa 0V koma ndi yayikulu komanso ilibe zida zanzeru.
→ Pamagulu okhazikika okhalamo, ma RCBO amagetsi ngati DABL-63 ndi abwino.

Q4: Kodi 30mA ndiyokwanira pachitetezo chaumwini?

A4: ndi. 30mA ndiye mulingo wapadziko lonse lapansi (IEC) woteteza chitetezo chopulumutsa moyo m'mabwalo okhala.

Q5: Chifukwa chiyani musankhe CDADA ya RCBO yamagetsi?

A5: CDADA imadziwika chifukwa:

● Chitetezo chenicheni cha 4-in-1 (kutayikira + kuchulukira + + dera lalifupi)

● Mapangidwe a Compact 2-module amapulumutsa malo

● Chizindikiro chodziyimira pawokha chimatsimikizira kuti ali olondola

● Ziphaso zapadziko lonse (CE/CB/RoHS)

● Okonzeka OEM: khalidwe losasinthika, kuthandizira kwa Chingerezi, mitengo yambiri
