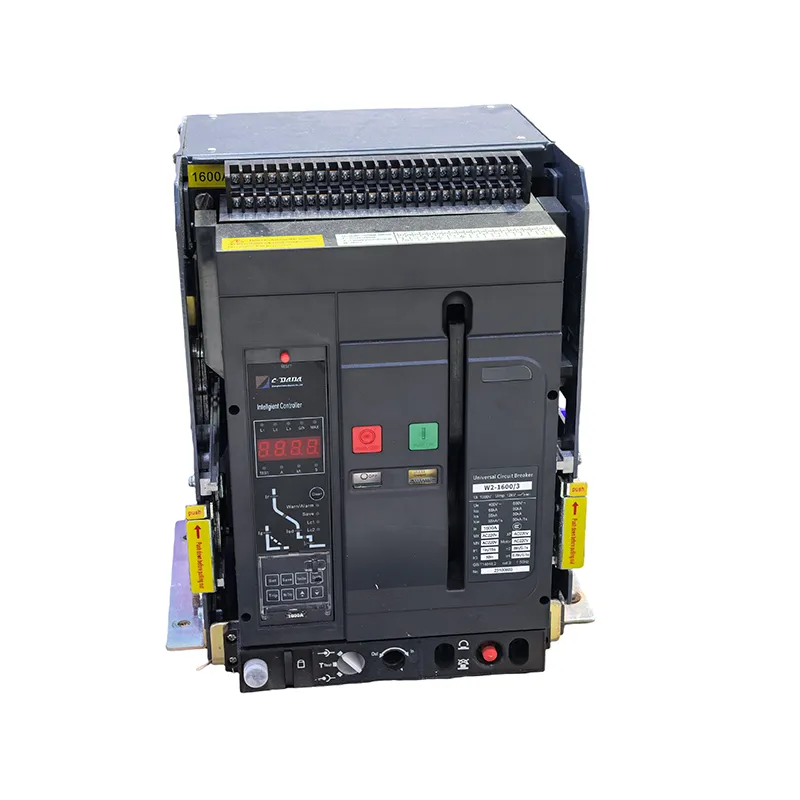

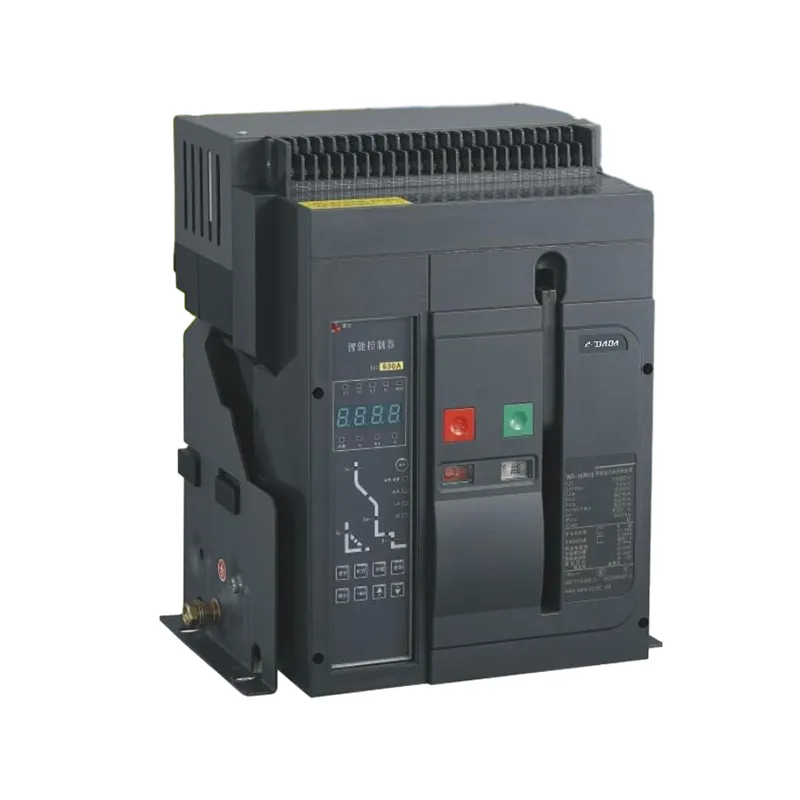

1600A Air Circuit Breaker
Model:DAW2-1600 Series
CDADA ndi opanga odalirika a 1600A Air Circuit Breaker, omwe ali ndi CB-certified ndi chitetezo chanzeru, chomangidwira zofunikira zogawa mphamvu zamafakitale. Wopangidwa ndi zida zapamwamba komanso zomanga zolimba, chowotcha mpweya ichi ndi chosavuta kugwiritsa ntchito ndikuchikonza, chogwirizana mosagwirizana ndi machitidwe amagetsi amakampani. Ndilo kusankha kwapamwamba pakugula kwazinthu zonse ndi OEM, kumapereka magwiridwe antchito okhazikika, odalirika pazofunikira zonse zoteteza mphamvu zamafakitale.
CDADA ndi fakitale yaukadaulo yomwe imatha kupereka 1600A Air Circuit Breaker (DAW2-1600 Series), yoyenera kugula zinthu zambiri, yokhala ndi ziphaso za CB komanso kutsata miyezo ya IEC60947-2. Imagwira ntchito pa ma AC 50Hz, 690V network, yopereka zochulukira bwino, zofupikitsa, zotetezedwa ndi kutayikira.
Zopangidwa kuti zizigwiritsidwa ntchito m'mafakitale, zimathandizira kuwunika kwakutali, ndizosavuta kukhazikitsa, ndipo zimakwaniritsa zofuna za omwe amagawa za switchgear yanzeru yotsika.
Parameter ya Zamalonda (Matchulidwe)
Chitsanzo: DAW2-1600 Series
Kuvoteledwa Kwamakono (Inm): 1600A
Kuvoteledwa Panopa (Mu): 200A / 400A / 630A / 800A / 1000A / 1250A / 1600A
Mphamvu ya Insulation Voltage (Ui): 690V
Ovoteledwa ntchito Voltage (Ue): 400V / 690V
Kutsata Miyezo: IEC 60947-2
Chitetezo: Kuchulukirachulukira, Kuzungulira Kwachidule, Kutsika Kwambiri, Kulakwitsa Pansi (ndi chosinthira chotayirira)
Kulankhulana: Tsegulani protocol yophatikizira fieldbus (imathandizira "ntchito zinayi zakutali")
Chizindikiro Chodzipatula: “-x_”
|
Chitsanzo |
DAW2-1600 |
|||||||
|
Zovoteledwa ndi chipolopolo chamtundu wa Inm (A) |
1600 |
|||||||
|
Zovoteledwa panopa (A) |
200, 400, 500, 630, 800, 1000, 1250, 1600 |
|||||||
|
Adavotera mphamvu yamagetsi ya Ue (V) |
AC400,AC690 |
|||||||
|
Ma frequency ogwiritsira ntchito (Hz) |
50Hz/60Hz |
|||||||
|
Adavotera voteji ya Ui (V) |
1000 |
|||||||
|
Adavotera mphamvu yamagetsi ya Uimp(kV) |
12 |
|||||||
|
Mphamvu pafupipafupi kulolerana voteji U(V)1min |
3500 |
|||||||
|
Nambala ya |
3, 4 |
|||||||
|
N-pole idavotera panopa (A) |
100%cln |
|||||||
|
Gwiritsani Ntchito Gulu |
GB14048.2 |
B |
||||||
|
Mulingo wocheperako pafupipafupi Lcu (kA) (mtengo wogwira) |
AC400V |
65 |
||||||
|
AC690V |
50 |
|||||||
|
|
AC400V |
55 |
||||||
|
Idavotera mphamvu yakuphwanya dera lalifupi |
AC690v |
42 |
||||||
|
LCS (kA) (mtengo wogwira) |
AC400V |
143 |
||||||
|
AC690V |
105 |
|||||||
|
Kuthekera kolumikizana ndi dera lalifupi |
AC400V |
50 |
||||||
|
AC690v |
42 |
|||||||
|
Nthawi yopuma (palibe kuchedwa kwina)(MS) |
25 |
|||||||
|
Nthawi yotseka (MS) |
Max 70 |
|||||||
|
Moyo wamagetsi (nthawi) |
AC400V |
ln=200A~630A |
1500 |
|||||
|
Mu=800A~1250A |
1000 |
|||||||
|
Mu=160OA |
800 |
|||||||
|
AC690v |
ln=200A~630A |
100 o |
||||||
|
ln=80OA~1250A |
650 |
|||||||
|
n = 1600A |
500 |
|||||||
|
Moyo wamakina (nthawi) |
Kukonza kwaulere |
15000 |
||||||
|
Khalani ndi kukonza |
20000 |
|||||||
|
Makulidwe (m'lifupi X kutalika X kuya) mm |
Mtundu wokhazikika |
3P |
260 × 310 × 240 |
Mtundu wa kabati |
3P |
275×345×330 |
||
|
4P |
330 × 310 × 240 |
|
4P |
345 × 345 × 330 |
||||
Mawonekedwe a Zamalonda Ndi Kugwiritsa Ntchito
CDADA 1600A Air Circuit Breaker imapambana pa ntchito zolemetsa monga magetsi, malo opangira data, ndi zomangamanga zamatauni. Wowongolera wake wanzeru amathandizira kusankhana kolondola, kumachepetsa nthawi yopumira - ndikofunikira kwa ogula kuyika patsogolo kukhazikika kwa gridi. Ndi malo otchingidwa ndi IP20 komanso kapangidwe kake, ndikosavuta kuphatikiza ndi mapanelo omwe alipo.
Ubwino waukulu:
★ zaka 5 zogwira ntchito pansi pa katundu wambiri
★ Kutetezedwa kotayikira kopanda kutero pofuna chitetezo chowonjezereka
★ Imathandizira chitetezo chagalimoto (≤1600A mitundu)
★ Kutha kusintha pafupipafupi poyambitsa injini
Zambiri Zopanga
Wopangidwa ndi SHANGHAI DADA ELECTRIC CO., LTD., 1600A ACB iliyonse imayesedwa mwamphamvu ndi kutentha ndi dielectric. Mzere wathu wodzipangira wokha umatsimikizira ± 2% kulolerana pamakonzedwe apaulendo-ochita bwino kwambiri kuposa omwe akupikisana nawo. Nyumba ya aluminiyamu ya alloy imapereka kutentha kwapamwamba kwambiri, pamene zolumikizira zokhala ndi siliva zimatsimikizira kukana pang'ono pakapita nthawi.
Poyerekeza ndi ophwanya wamba, mayunitsi a CDADA amapereka:
★ 30% kuyankha mwachangu ku zolakwika zapansi
★ Kukonzekera kwapawiri-certification (CE pakupempha)
★ Zolemba mwamakonda & kuyika kwa ogula achinsinsi
Chifukwa chiyani Dada's 1600A Air Circuit Breaker Apambana Opikisana nawo
Poyerekeza ndi omwe akupikisana nawo, malonda athu ali ndi ubwino wake.
Zokwera mtengo - zogwira mtima popanda kudzipereka.
Nthawi yoyankhira mwachangu ngati pali zovuta zamagetsi.
A mabuku pambuyo - malonda utumiki dongosolo.
Phindu: Imathandiza makasitomala kupanga chisankho chodziwikiratu, kusankha chinthu chomwe chimaphatikiza magwiridwe antchito apamwamba, kudalirika, komanso kutsika mtengo.
Ku Shanghai DADA Electric CO., Ltd, timamvetsetsa kuti bizinesi iliyonse ili ndi zofunikira zapadera. Zopereka zathu zosintha mwamakonda zidapangidwa kuti zikupatseni yankho lokhazikika. Kaya mukufuna chinthu chomwe chili ndi mawonekedwe ake, mawonekedwe ake, kapena magwiridwe antchito, gulu lathu lakonzeka kukupatsirani chopereka chanu.
